Set of four silver aluminium 14-inch off-road wheels with spline lug nuts

RockTrix

RockTrix RT103 14x7 4x156 4+3 Offset Wheel Set of 4

SKU CH-QD6B-QBTF7

Set of four 14x7 aluminium wheels with 4+3 offset, 4x156 bolt pattern, 131 mm centre bore and 800 lb load rating, supplied with 16 spline lug nuts and a socket key

  • Lightweight aluminium rims replace heavy factory steel
  • 14x7 size with 4+3 offset improves handling
  • 4x156 bolt pattern fits many Polaris models
  • 800 lbs load rating per wheel for durability
  • Includes 16 spline lug nuts and socket key

RockTrix RT103 14x7 wheel set

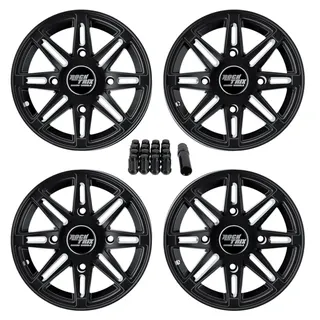

The RockTrix RT103 is a set of four aluminium wheels built for ATVs and UTVs that run a 4x156 bolt pattern, 131 mm centre bore and M12x1.5 studs. Each 14-inch diameter, 7-inch wide rim carries a 4+3 offset and an 800 lb load rating. The package includes sixteen spline lug nuts, a matching socket key and four centre caps.

Sustained off-road load behaviour

Cast as a single piece and CNC machined, the aluminium rims resist the repeated impacts and side loads common on trails better than factory steel wheels. The 800 lb per-wheel rating is maintained through extended riding sessions without the flex that can loosen lug nuts on thinner rims. Spline-drive lug nuts add consistent clamping force even after vibration-heavy use.

Upgrade path from steel rims

Riders replacing original steel wheels gain a lighter, stronger rim that reduces unsprung weight and improves steering response. The jump is worth it when the machine matches the 4x156 pattern, 131 mm bore limit and M12x1.5 threads across model years 2014 to 2019 and select 2018-2019 Wildcat XX units. Verify every dimension before fitting.

Highlights

  • Lightweight aluminium rims replace heavy factory steel
  • 14x7 size with 4+3 offset improves handling
  • 4x156 bolt pattern fits many Polaris models
  • 800 lbs load rating per wheel for durability
  • Includes 16 spline lug nuts and socket key

Specifications

No published specifications for this item yet.

Questions about this item

How much heat or noise do the 14x7 aluminium rims add during all-day trail use?

Cast aluminium rims run cooler and quieter than steel equivalents, and the 14x7 size keeps rotational mass low for steady temperatures on long rides.

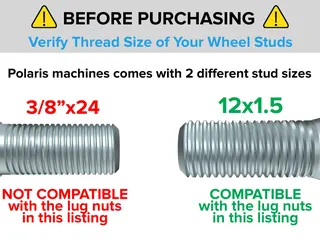

Do I need to buy separate lug nuts or a special socket for the 12x1.5 spline pattern?

The set includes sixteen 12x1.5 spline lug nuts and the matching 6-spline socket key, so no extra hardware is required for installation.

Will the 4x156 bolt pattern and 131 mm centre bore fit my older Polaris Sportsman without spacers?

Yes, if your machine uses a 4x156 pattern, M12x1.5 studs and a hub bore no larger than 131 mm, the wheels bolt on directly with the supplied nuts.
