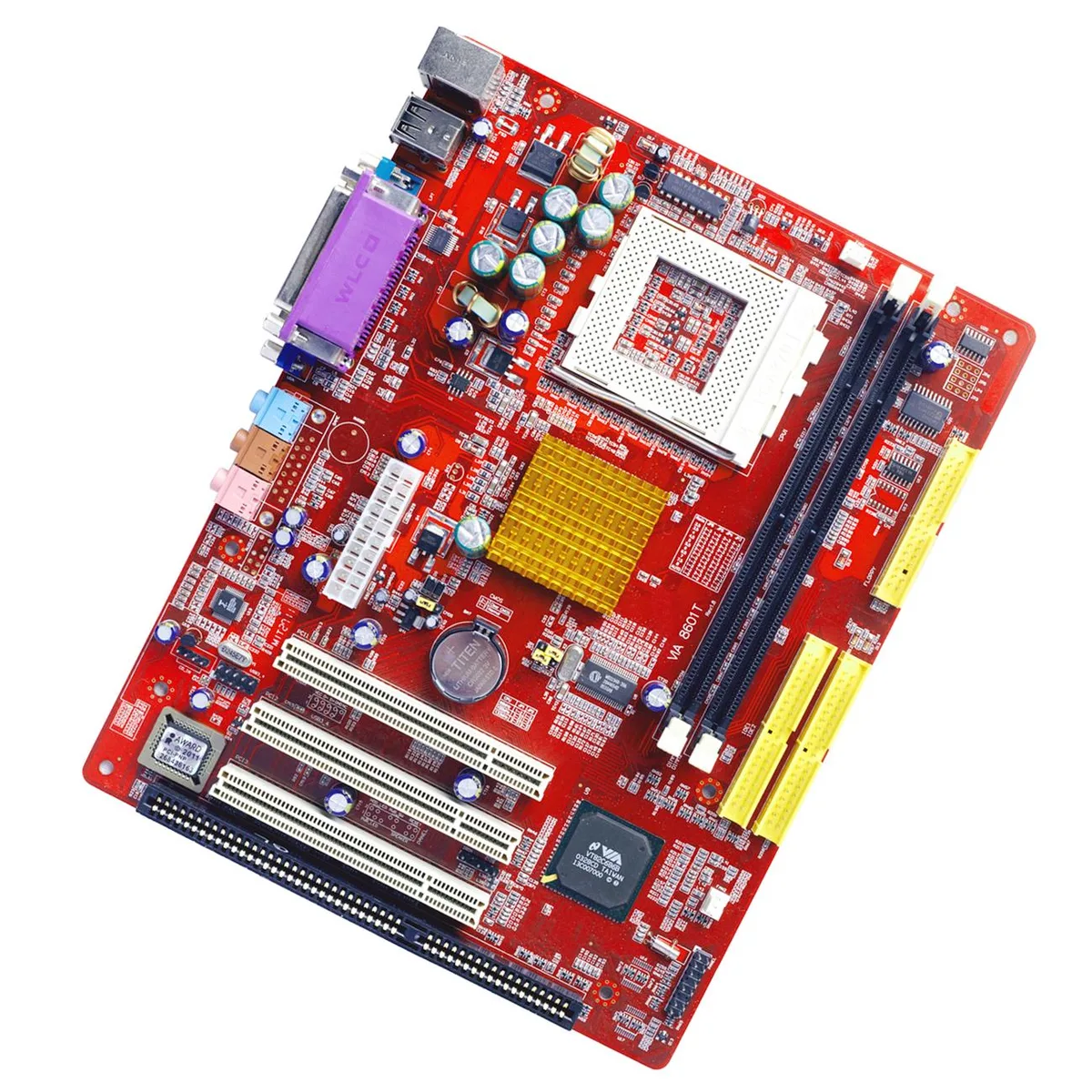

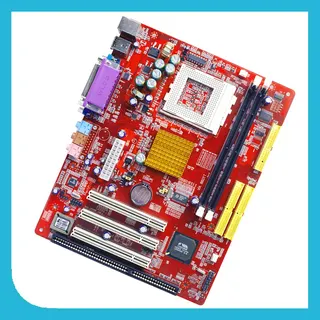

Red micro-ATX motherboard with ISA slot, three PCI slots and Socket 370

Roby Technology Co., Limited

Roby Technology Co., Limited VIA8601T-ISA telephone

SKU CH-T232-XZ7Y3 MPN VIA8601T-ISA

Industrial mATX motherboard with VIA 8601T chipset, Socket 370 support, one ISA and three PCI slots, up to 512 MB SDRAM

  • FeaturesISA PCI Motherboard V8601T with 1 ISA 3 PCI Slots
  • TypeISA PCI Motherboard
  • BatteryLithium-Ion
  • Contains Embedded BatteryYes
  • Socket 370 supports Pentium III and Celeron CPUs up to 1.3 GHz
  • VIA 8601T chipset with 66/100/133 MHz FSB for stable operation
  • 3 PCI slots plus 1 ISA slot for legacy and modern expansion cards
  • Micro ATX form factor 192 mm by 244 mm fits standard cases
  • Onboard VGA, audio, USB 1.0 and serial ports for ready connectivity

Industrial mATX Mainboard with ISA Slot

The Roby Technology VIA8601T-ISA is a micro ATX motherboard built around the VIA 8601 northbridge and 8606 southbridge. It targets industrial server and legacy desktop workloads that still depend on ISA bus expansion. The board fits standard micro ATX chassis and supports Socket 370 processors.

Socket 370 Platform with SDRAM Support

The CPU socket accepts Pentium III or Celeron CPUs up to 1.3 GHz with front-side bus speeds of 66, 100 or 133 MHz. Two 168-pin DIMM slots take SD-RAM modules at 100 or 133 MHz for a maximum of 512 MB. Onboard VGA, Realtek AC'97 audio, dual USB 1.0, PS/2, serial, parallel and floppy connectors handle basic I/O without extra cards.

Legacy Expansion for Continuous Operation

Three PCI slots and a single ISA slot let you install specialised data-acquisition or control cards that have no modern equivalent. The board provides two UltraDMA channels at 133, 100, 66 and 33 MB/s for IDE storage. No onboard Ethernet is present, so a separate network card is required for connectivity. Buyers who need more than two memory slots, faster front-side bus speeds or integrated networking should look elsewhere.

Highlights

  • Socket 370 supports Pentium III and Celeron CPUs up to 1.3 GHz
  • VIA 8601T chipset with 66/100/133 MHz FSB for stable operation
  • 3 PCI slots plus 1 ISA slot for legacy and modern expansion cards
  • Micro ATX form factor 192 mm by 244 mm fits standard cases
  • Onboard VGA, audio, USB 1.0 and serial ports for ready connectivity

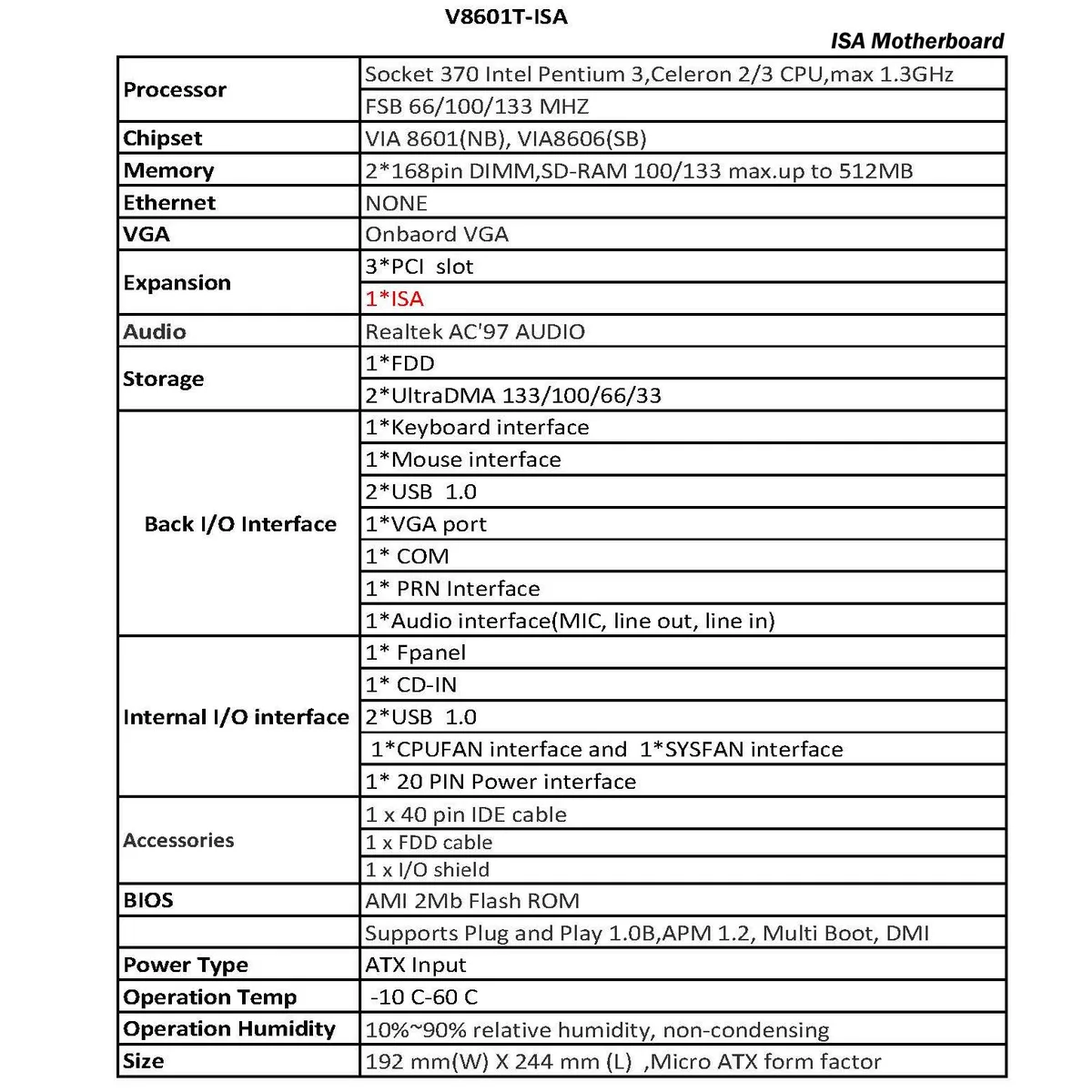

Specifications

BrandRobyTech
SeriesPCI Motherboard
ModelISA Motherboard V8601T
Part NumberMotherboard V8601T
FeaturesISA PCI Motherboard V8601T with 1 ISA 3 PCI Slots
TypeISA PCI Motherboard
BatteryLithium-Ion
Contains Embedded BatteryYes

Questions about this item

What is the maximum CPU speed supported by the Socket 370 on this VIA8601T motherboard?

The Socket 370 supports Pentium 3 or Celeron 2/3 CPUs up to 1.3 GHz with FSB speeds of 66, 100 or 133 MHz.

How much heat and fan noise should I expect when running this board continuously in an industrial server?

The board uses a VIA 8601/8606 chipset and onboard VGA with no integrated Ethernet, so thermal output stays modest; a standard case fan over the passive heatsink is usually sufficient for 24/7 operation.

Which legacy peripherals do I already need to operate this ISA mATX mainboard?

You will need a PS/2 keyboard and mouse, SD-RAM DIMMs (168-pin, up to 512 MB), an ATX power supply, and any ISA or PCI add-in cards for networking or storage since onboard Ethernet is absent.
