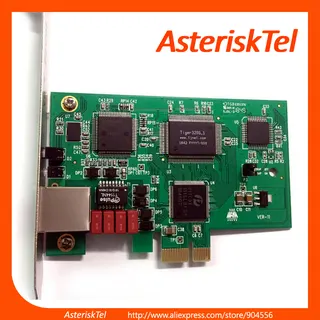

Single-slot PCIe card with one T1/E1 port and low-profile bracket

Roby Technology Co., Limited

Roby Technology Co., Limited TE120E ISDN PRI T1 E1 PCIe telephone accessory

SKU CH-XPFE-8105E

Single-span T1/E1 ISDN PRI card with PCIe x1 interface, selectable 24 or 32 channels, supports Asterisk-based PBX and data modes

  • TypeAdapter
  • SpecificationsISDN PRI T1 Card E1 Card
  • FeaturesSupports Asterisk , Issabel, FreePbx ,AsteriskNow ,Dahdi ...
  • Single PCIe x1 slot adds T1/E1 connectivity
  • Jumper selects 24-channel T1 or 32-channel E1 operation
  • Compatible with Asterisk, FreePBX, Issabel and Dahdi stacks
  • Supports PRI CPE/NET, HDLC, PPP, Frame Relay and E&M signalling
  • Low-profile bracket fits 2U rackmount servers

Single-span T1/E1 card for Asterisk PBX

This PCIe x1 card provides one selectable T1 or E1 span for building an IP PBX, call centre or VoIP gateway with Asterisk-based software such as FreePBX, Issabel or DAHDI. It fits low-profile 2U servers and carries voice and data simultaneously on the same span.

24-channel T1 or 32-channel E1 capacity

The single span can be jumpered for 24-channel T1 or 32-channel E1 operation, delivering up to 32 concurrent voice channels or mixed voice and data streams. It supports PRI CPE and NET signalling plus HDLC, PPP, Frame Relay and Cisco HDLC data modes, but only one span is available so larger trunk counts require additional cards.

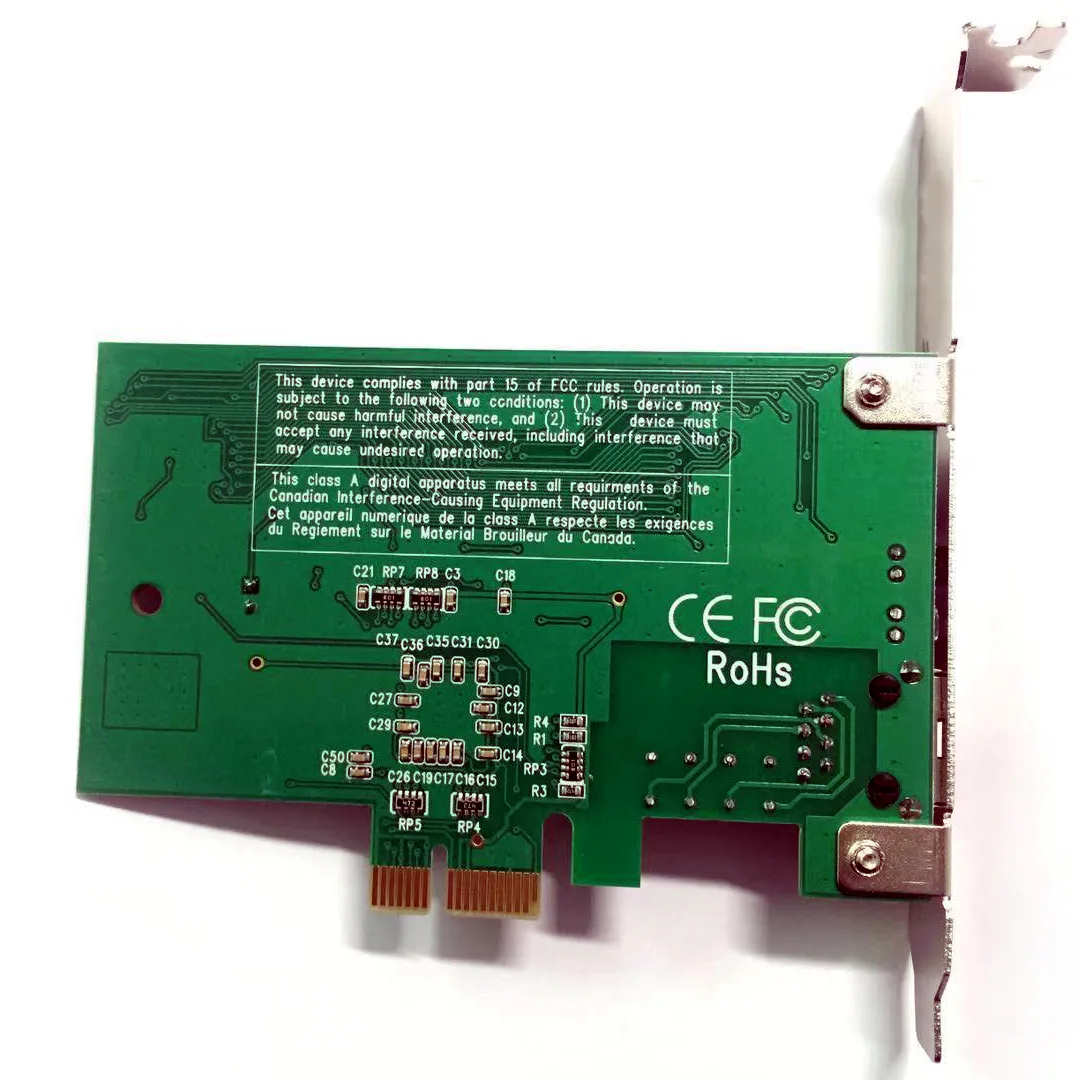

Low-profile bracket eases 2U deployment

A low-profile bracket is included so the card installs in shallow 2U chassis without blocking adjacent slots. No extra cables or licence dongles are bundled; the board relies entirely on open-source DAHDI drivers and the chosen Asterisk distribution for all call-control features.

Highlights

  • Single PCIe x1 slot adds T1/E1 connectivity
  • Jumper selects 24-channel T1 or 32-channel E1 operation
  • Compatible with Asterisk, FreePBX, Issabel and Dahdi stacks
  • Supports PRI CPE/NET, HDLC, PPP, Frame Relay and E&M signalling
  • Low-profile bracket fits 2U rackmount servers

Specifications

BrandAsteriskStore
ModelTE120E
TypeAdapter
SpecificationsISDN PRI T1 Card E1 Card
FeaturesSupports Asterisk , Issabel, FreePbx ,AsteriskNow ,Dahdi ...

Questions about this item

Will this PCIe x1 ISDN PRI card fit and operate in a server that only has older PCI-X slots available?

The card uses a PCIe x1 interface, so it requires a PCI Express slot; it will not work in legacy PCI-X slots.

How can I confirm the TE120E is operating correctly once installed in my Asterisk-based PBX?

Verify the span appears in DAHDI with the correct 24-channel T1 or 32-channel E1 count and that PRI signalling shows active layers.

Does the box contain a low-profile bracket for 2U rack servers, or must I order one separately?

The card ships with a low-profile bracket included for 2U server installations.
