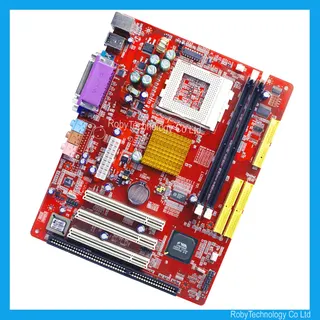

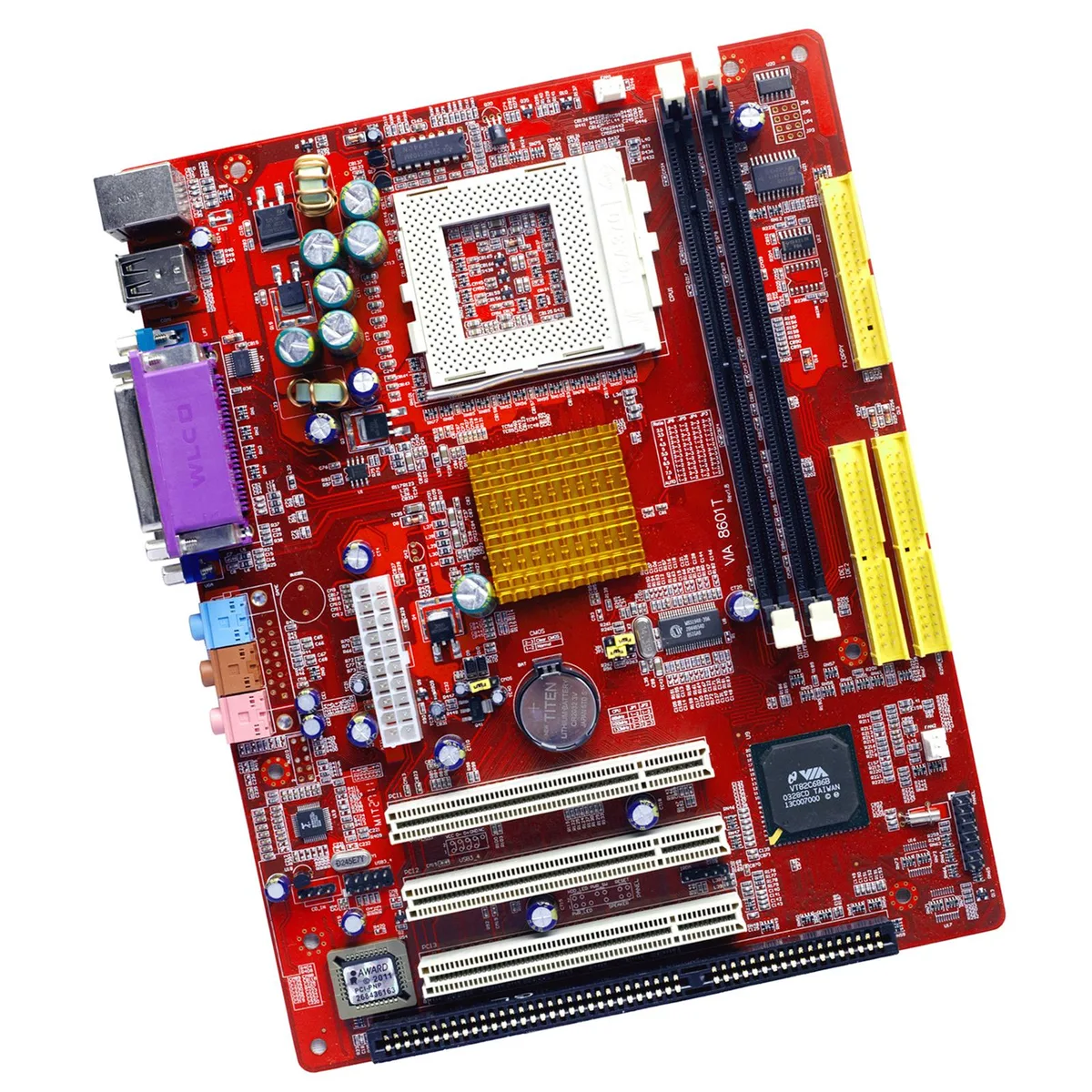

Red micro-ATX motherboard with three PCI slots and one ISA slot

Roby Technology Co., Limited

Roby Technology Co., Limited ISA Motherboard V8601T telephone

SKU CH-5AYP-FNQB9

Socket 370 industrial mATX board with VIA 8601 chipset, one ISA and three PCI slots, supporting up to 512 MB SDRAM

  • FeaturesISA Motherboard V8601T with 1 ISA 3 PCI Slots
  • TypeISA Motherboard
  • BatteryLithium-Ion
  • Contains Embedded BatteryYes
  • ISA slot supports legacy industrial cards
  • VIA 8601 chipset drives Socket 370 processors up to 1.3 GHz
  • Three PCI slots add expansion capacity
  • Micro-ATX 192 mm × 244 mm fits standard cases
  • Onboard VGA, USB 1.0, COM and audio ports ready

ISA Motherboard for Industrial Servers

The RobyTech V8601T is a micro-ATX motherboard built around the VIA 8601 chipset for Socket 370 processors. It targets industrial server and desktop PC builds that require legacy ISA expansion alongside PCI slots. The board supports Pentium III and Celeron CPUs up to 1.3 GHz with front-side bus speeds of 66, 100, or 133 MHz. Its red PCB aids visual identification during system assembly.

Legacy Expansion and Onboard I/O

Three PCI slots and a single ISA slot provide room for specialised add-in cards used in industrial environments. Onboard peripherals include VGA video, Realtek AC'97 audio, two USB 1.0 ports, PS/2 keyboard and mouse connectors, a serial COM port, and a parallel PRN interface. Storage connectivity covers one floppy drive header and two UltraDMA IDE channels supporting modes up to 133 MB/s.

Memory and Form Factor Decide Fit

Two 168-pin DIMM sockets accept SDRAM at 100 or 133 MHz with a maximum capacity of 512 MB. The micro-ATX dimensions of 192 mm by 244 mm determine case compatibility. Buyers needing more than 512 MB of RAM, modern USB standards, or integrated Ethernet must select a different platform.

Highlights

  • ISA slot supports legacy industrial cards
  • VIA 8601 chipset drives Socket 370 processors up to 1.3 GHz
  • Three PCI slots add expansion capacity
  • Micro-ATX 192 mm × 244 mm fits standard cases
  • Onboard VGA, USB 1.0, COM and audio ports ready

Specifications

BrandRobyTech
SeriesISA Motherboard
ModelISA Motherboard V8601T
Part NumberISA Motherboard V8601T
FeaturesISA Motherboard V8601T with 1 ISA 3 PCI Slots
TypeISA Motherboard
BatteryLithium-Ion
Contains Embedded BatteryYes

Questions about this item

Will the lithium-ion battery on the ISA Motherboard V8601T need replacing and how often?

The board contains an embedded lithium-ion battery that maintains CMOS settings; it typically lasts several years before a replacement is required.

What limits sustained performance on the V8601T when running continuously?

The Socket 370 platform caps CPU speed at 1.3 GHz with a 133 MHz FSB and memory tops out at 512 MB of SD-RAM, which become the first bottlenecks under load.

How much heat and noise does the V8601T produce during all-day operation?

Passive chipset cooling and low-power Pentium III or Celeron processors keep thermal output modest, so a standard case fan is usually sufficient for quiet 24/7 running.
