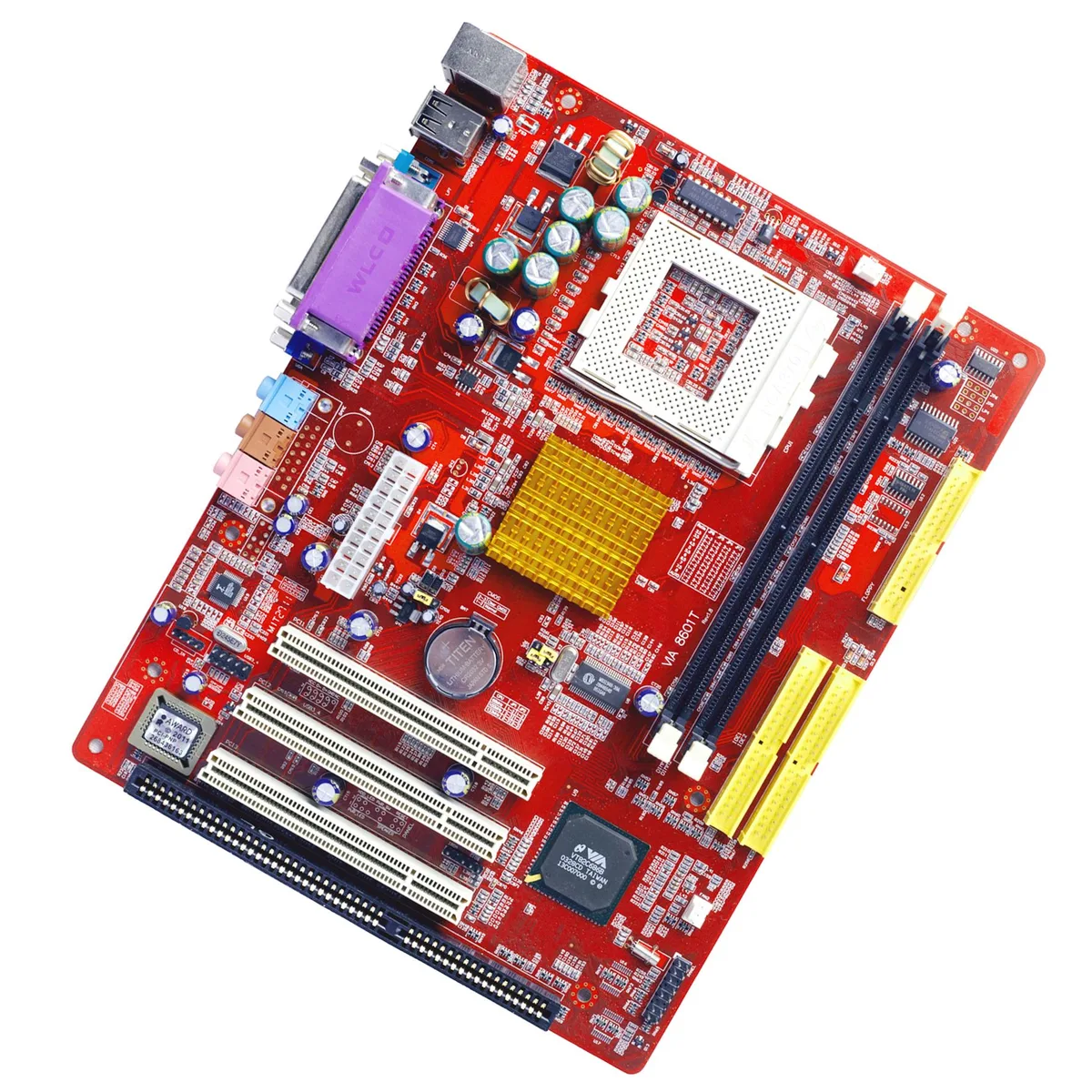

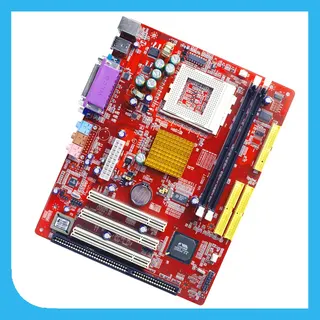

Red mATX motherboard with one ISA and three PCI slots

Roby Technology Co., Limited

Roby Technology Co., Limited ISA Mainboard V8601T telephone

SKU CH-T6XG-FYE44

Socket 370 micro-ATX board with VIA 8601 chipset, one ISA slot, three PCI slots and up to 512 MB SDRAM

  • FeaturesISA Motherboard V8601T with 1 ISA 3 PCI Slots
  • TypeISA Motherboard
  • BatteryLithium-Ion
  • Contains Embedded BatteryYes
  • Socket 370 supports Pentium III and Celeron CPUs up to 1.3 GHz
  • VIA 8601/8606 chipset delivers stable legacy performance
  • Micro-ATX 192 mm × 244 mm fits compact industrial chassis
  • One ISA plus three PCI slots for specialised expansion cards
  • Onboard VGA, USB 1.0, audio and legacy I/O ports included

Socket 370 ISA Motherboard

The RobyTech ISA Mainboard V8601T is a micro-ATX board built around the VIA 8601 northbridge and VIA 8606 southbridge. It accepts Socket 370 Pentium III or Celeron processors up to 1.3 GHz with front-side bus speeds of 66, 100 or 133 MHz. Two 168-pin DIMM slots support SD-RAM up to 512 MB.

Industrial Upgrade Buyers

This board suits technicians repairing legacy industrial servers or desktop systems that still require a physical ISA slot alongside three PCI slots. It is not for builders who need integrated Ethernet, USB 2.0 or later, or memory capacities beyond 512 MB.

Single ISA Slot

The defining feature is the lone ISA expansion slot, a legacy interface absent from modern motherboards. That slot decides whether this V8601T can host the specialised add-in card your equipment depends on.

Highlights

  • Socket 370 supports Pentium III and Celeron CPUs up to 1.3 GHz
  • VIA 8601/8606 chipset delivers stable legacy performance
  • Micro-ATX 192 mm × 244 mm fits compact industrial chassis
  • One ISA plus three PCI slots for specialised expansion cards
  • Onboard VGA, USB 1.0, audio and legacy I/O ports included

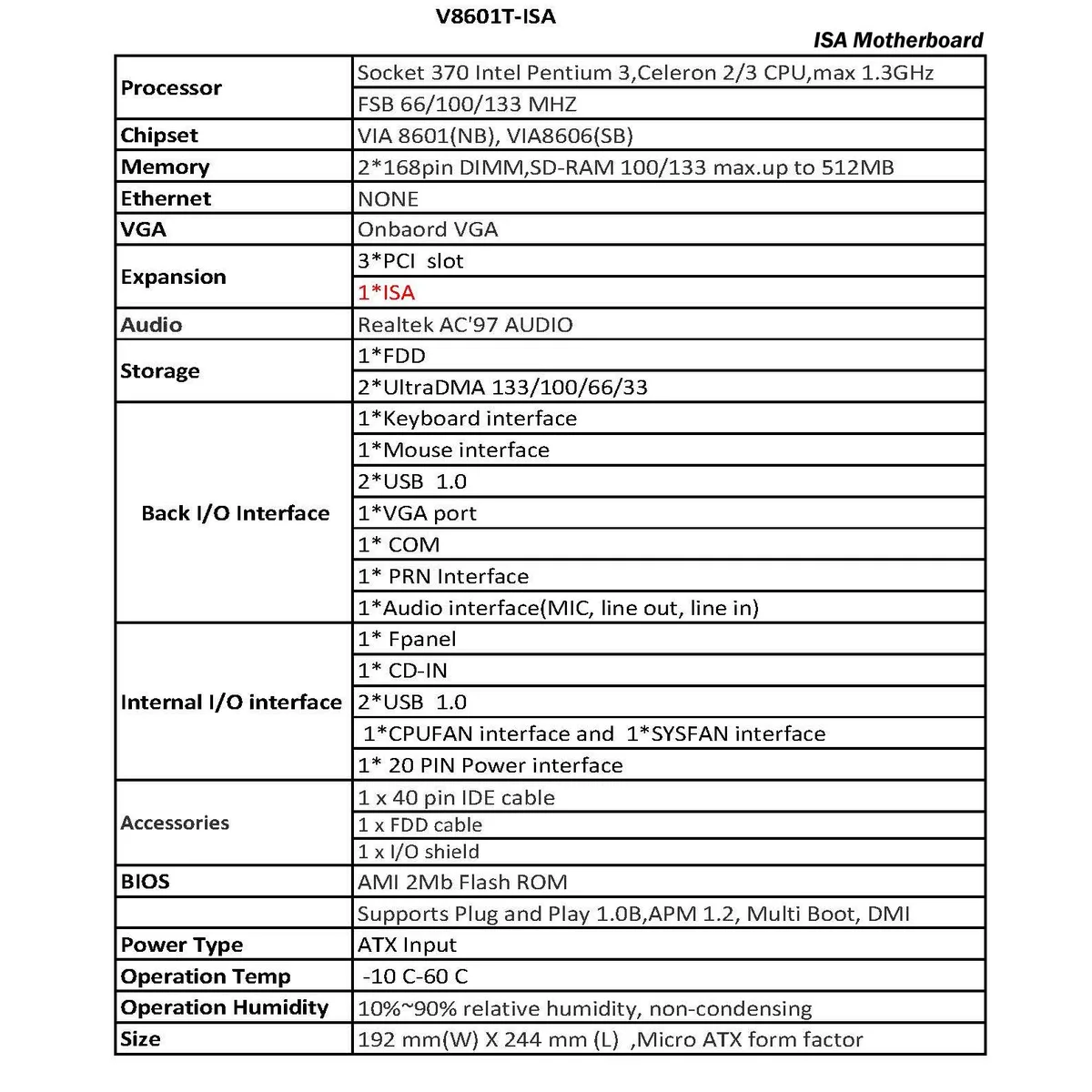

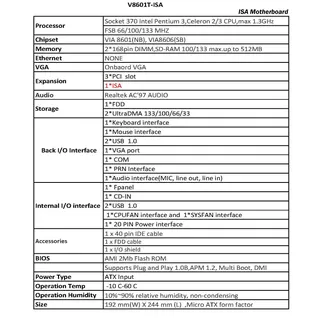

Specifications

BrandRobyTech
SeriesISA Mainboard
ModelISA Mainboard V8601T
Part NumberISA Mainboard V8601T
FeaturesISA Motherboard V8601T with 1 ISA 3 PCI Slots
TypeISA Motherboard
BatteryLithium-Ion
Contains Embedded BatteryYes

Questions about this item

What case clearance does the 192 mm by 244 mm micro-ATX board need?

The board follows the micro-ATX form factor at 192 mm wide by 244 mm long, so any case that accepts micro-ATX will have the required mounting holes and internal space.

Which jumpers or DIMM slots must be set before powering on a Socket 370 Pentium III or Celeron?

Install the CPU in the Socket 370 socket, populate the two 168-pin DIMM slots with SD-RAM up to 512 MB, and verify the FSB selection matches the processor (66, 100 or 133 MHz) before first boot.

When should the onboard lithium-ion cell be replaced?

Replace the onboard lithium-ion battery when the system no longer retains BIOS settings or the real-time clock loses time after the mains power is removed.
