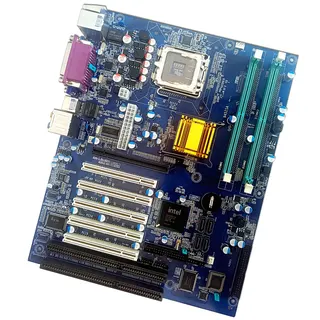

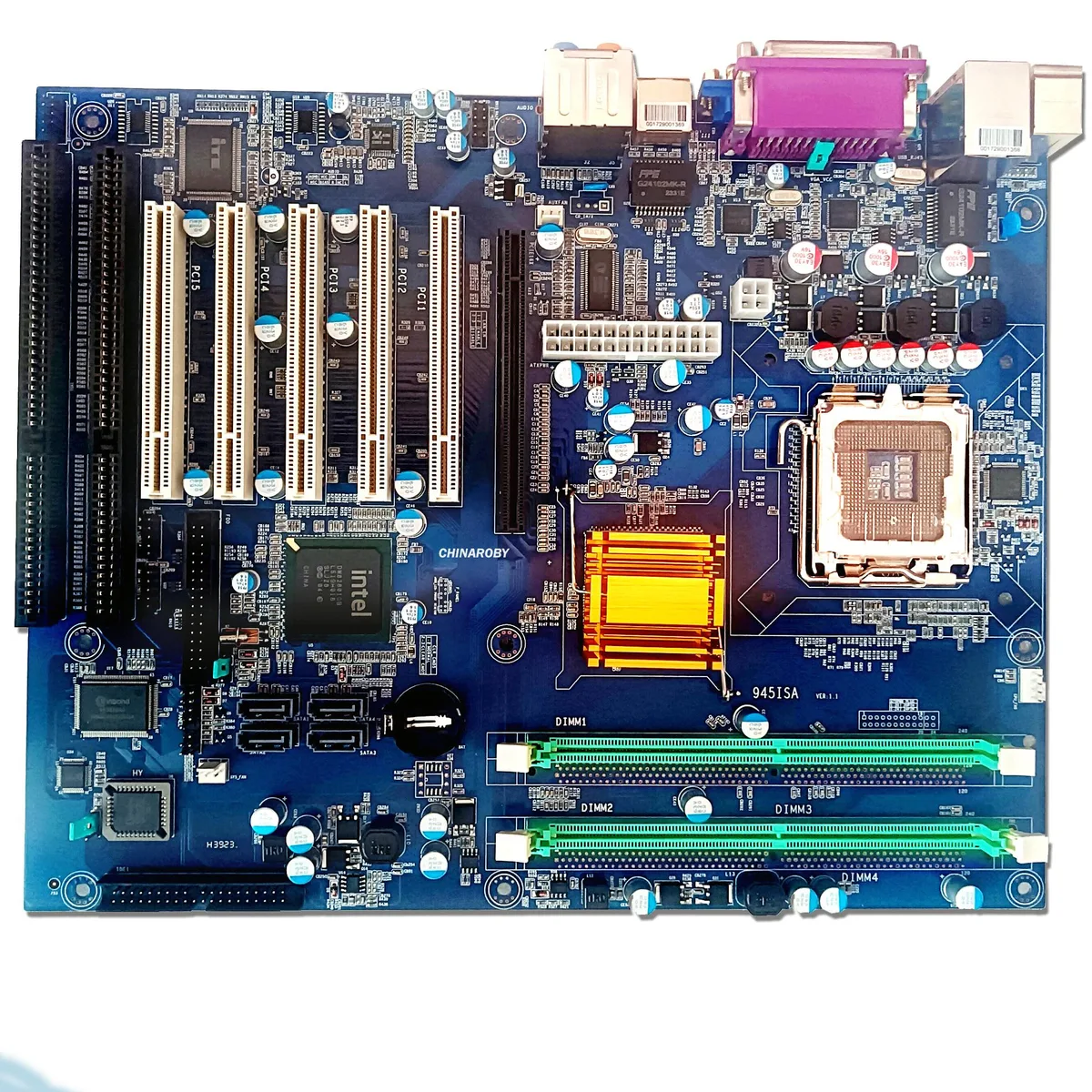

Green ATX motherboard with two ISA slots, five PCI slots and dual RJ45 ports

Roby Technology Co., Limited

Roby Technology Co., Limited 945GV 945--2ISA MB telephone

SKU CH-GGX0-MP5T7

An ATX industrial motherboard with LGA775 socket, dual RTL8111C LAN, two ISA and five PCI slots, plus 7.1 audio

  • FeaturesATX Motherboard with PCI Slots,ISA Slots
  • TypeISA PCI MOTHERBOARD
  • Supports legacy cards with 2 ISA and 5 PCI slots
  • LGA775 socket fits Pentium 4, D, HT and Celeron D CPUs
  • Dual RTL8111C Gigabit LAN ports for wired connectivity
  • Realtek ALC888 7.1 channel audio for surround sound
  • Four SATA plus one IDE port for storage options

Industrial ATX Motherboard with ISA Slots

This ATX motherboard uses the Intel 945GV chipset and an LGA775 socket for Pentium HT, Pentium D, Pentium 4 and Celeron D processors. It provides two DDR2 DIMM slots supporting 400, 533 and 667 MHz memory up to 4 GB. The board includes dual Realtek RTL8111C Gigabit Ethernet ports and Realtek ALC888 7.1 channel audio.

Suits legacy industrial upgrades, not modern builds

The two ISA slots and five PCI slots make this board a direct replacement for older industrial systems that still rely on specialised expansion cards. Builders needing PCIe x16 graphics, SATA III storage, USB 3.0 or current-generation processors should select a different platform.

Dual ISA and five PCI slots decide fit

The defining specification is the combination of two ISA slots and five PCI slots alongside a single PCIe x16 slot. If the target chassis and application require that exact legacy expansion layout, this 945GV board matches it; otherwise a board without ISA support is appropriate.

Highlights

  • Supports legacy cards with 2 ISA and 5 PCI slots
  • LGA775 socket fits Pentium 4, D, HT and Celeron D CPUs
  • Dual RTL8111C Gigabit LAN ports for wired connectivity
  • Realtek ALC888 7.1 channel audio for surround sound
  • Four SATA plus one IDE port for storage options

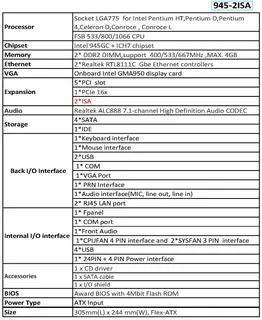

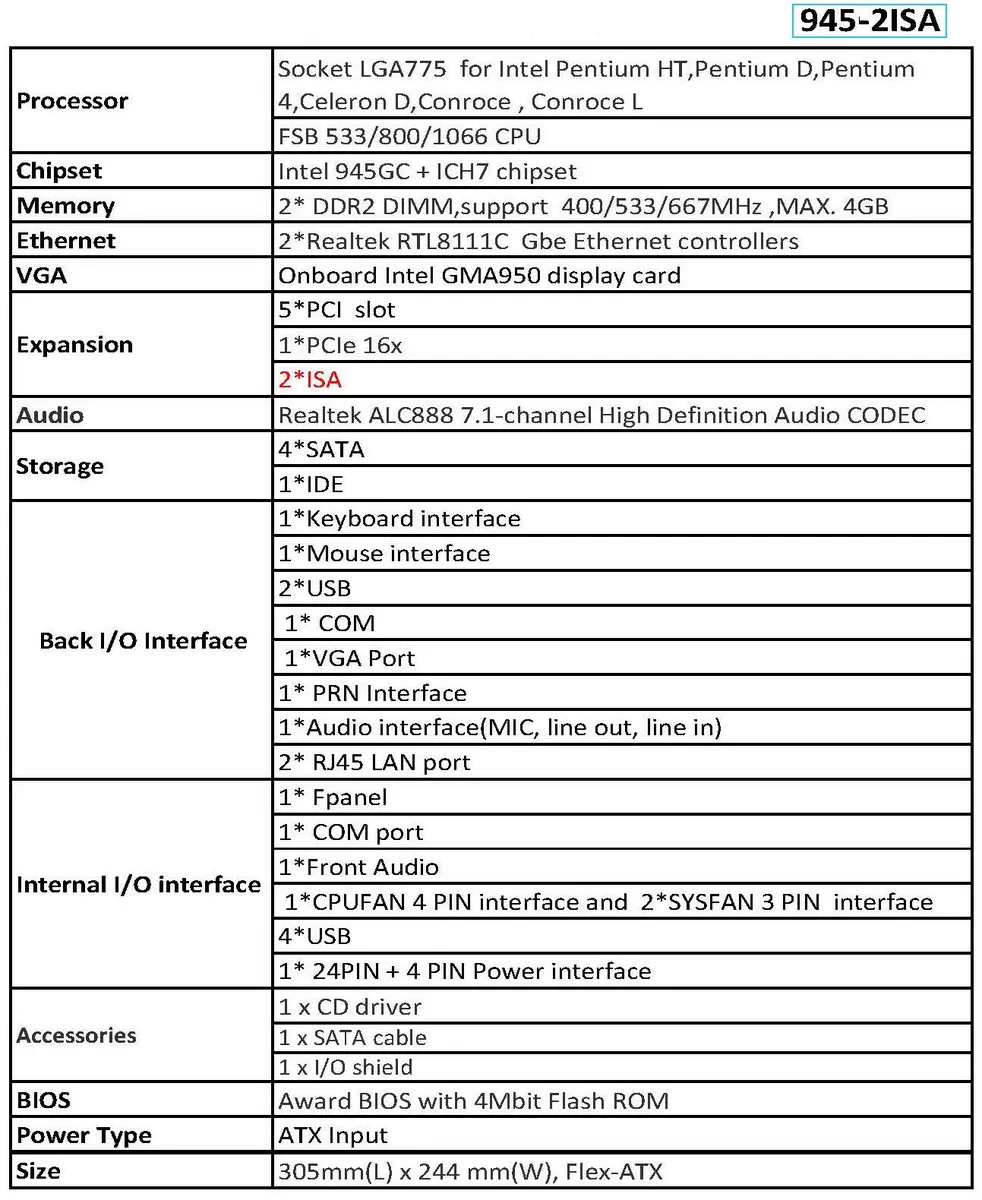

Specifications

BrandROBY TECH
SeriesMotherboards with PCI ISA interface
Model945GV
Part Number945--2ISA MB
FeaturesATX Motherboard with PCI Slots,ISA Slots
TypeISA PCI MOTHERBOARD

Questions about this item

How much power does the board draw when it runs continuously with a Pentium 4 installed?

The Intel 945GV chipset and LGA775 socket support processors rated up to 1066 MHz FSB; typical system power will depend on the specific CPU and expansion cards fitted.

Which legacy cards do I already need to populate the two ISA and five PCI slots?

The board provides two ISA slots and five PCI slots for older expansion cards such as industrial I/O, data-acquisition or legacy network adapters.

Will my existing DDR2 memory modules work at their rated speed on this motherboard?

The two DDR2 DIMM slots accept 400, 533 or 667 MHz modules up to a total of 4 GB, so current DDR2 sticks within those speeds are compatible.
