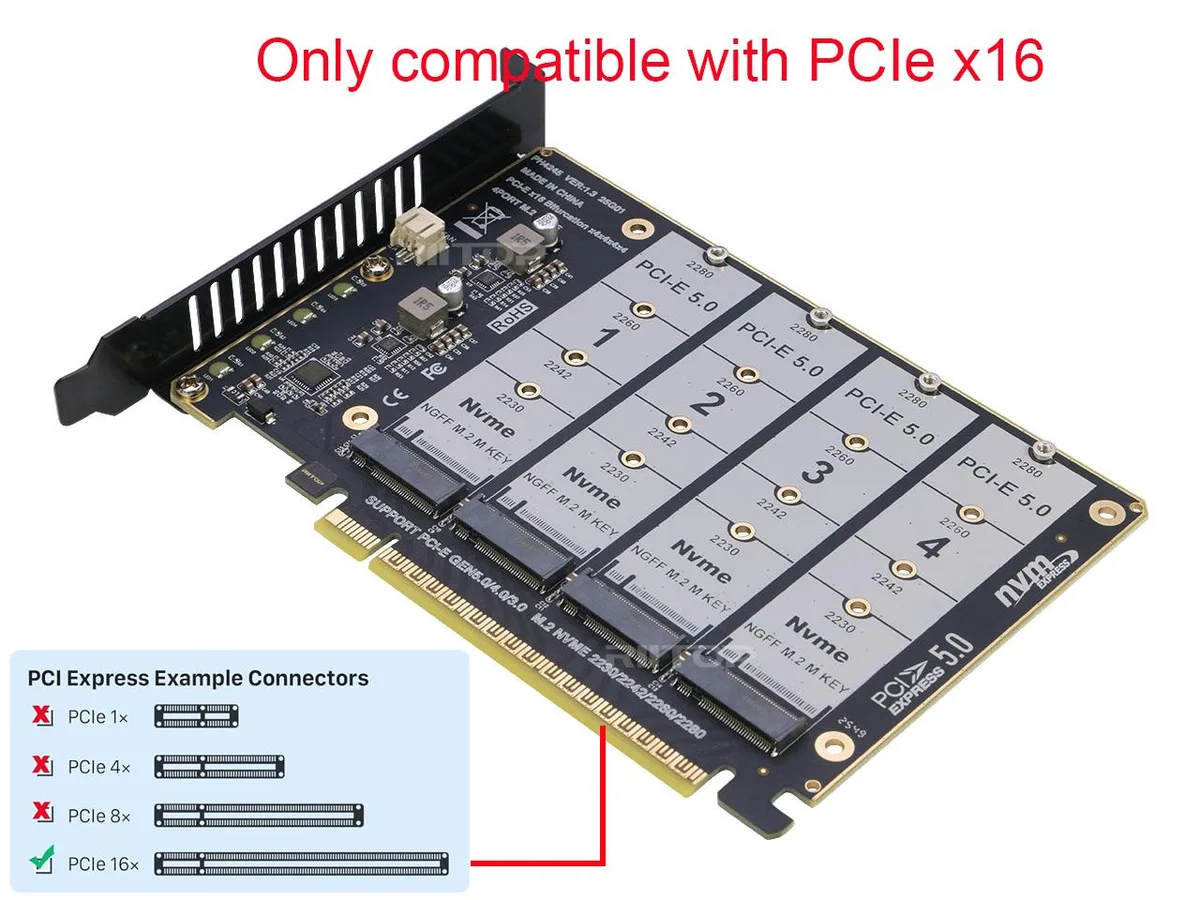

Green circuit board with four M.2 slots and a full-length PCIe x16 edge connector

RIITOP

RIITOP Quad M.2 NVMe PCIe x16 Bifurcation Adapter expansion card

SKU CH-MD9J-21388

Adds four NVMe SSDs via one PCIe x16 slot requiring bifurcation support

  • TypeController Card
  • Add four NVMe SSDs through one PCIe x16 slot
  • Full 32 Gbps bandwidth per drive on PCIe 5.0
  • Fits M.2 2280, 2260, 2242 and 2230 NVMe drives
  • Requires motherboard with PCIe x16 bifurcation to x4x4x4x4
  • Compatible with X299, X399 and most server platforms

Four NVMe drives on one slot

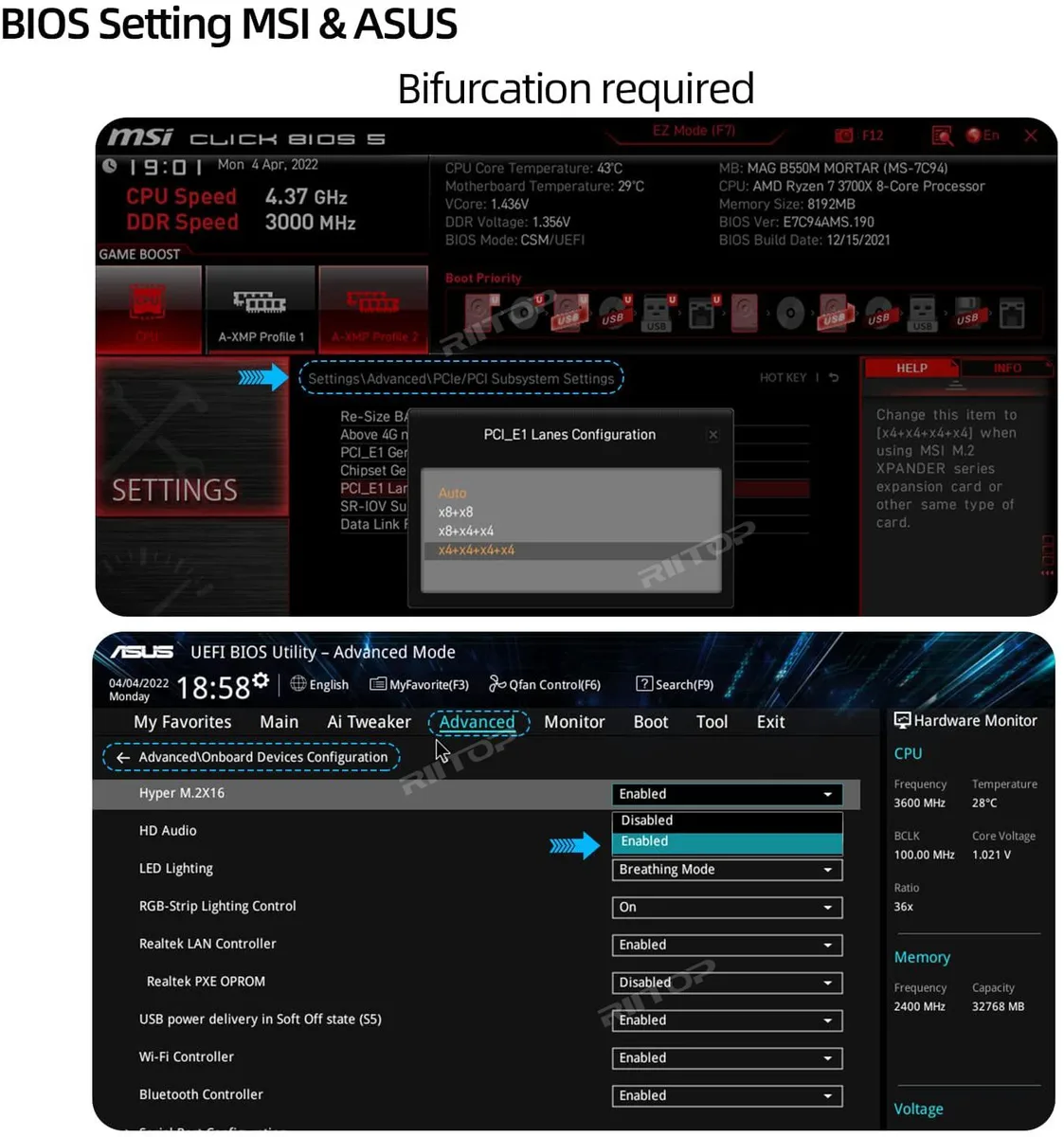

This RIITOP adapter installs in a single PCIe 5.0, 4.0 or 3.0 x16 slot and exposes four M.2 M-key sockets. The motherboard must support PCIe x16 bifurcation configured as x4x4x4x4 and the CPU must provide enough lanes. Only NVMe SSDs are accepted; SATA-based M.2 drives will not work.

Capacity and headroom

Four slots accept 2280, 2260, 2242 and 2230 form-factor NVMe drives. Each drive receives a full x4 electrical link, so every SSD can run at its rated PCIe generation speed. The card adds no controller or RAID logic; total throughput scales with the platform's lane budget and the SSDs installed.

Thermals, noise and power

The board is a passive PCB with no fan or active cooling. Heat dissipation depends entirely on case airflow and any motherboard or aftermarket heatsinks applied to the SSDs. Power draw is limited to the SSDs themselves plus negligible trace loss; the slot supplies all required power without auxiliary connectors.

Highlights

  • Add four NVMe SSDs through one PCIe x16 slot
  • Full 32 Gbps bandwidth per drive on PCIe 5.0
  • Fits M.2 2280, 2260, 2242 and 2230 NVMe drives
  • Requires motherboard with PCIe x16 bifurcation to x4x4x4x4
  • Compatible with X299, X399 and most server platforms

Specifications

TypeController Card

Questions about this item

Will this card run four NVMe drives at full speed on an older PCIe 3.0 x16 slot?

Yes, the adapter supports PCIe 3.0 x16 bifurcation and delivers up to 32Gbps per drive when the motherboard is set to x4x4x4x4.

How can I confirm each SSD is operating at the expected 32Gbps link speed after installation?

Check the motherboard BIOS or an OS tool such as NVMe CLI to verify every drive negotiates a PCIe 3.0 x4 or 4.0 x4 link.

Which M.2 lengths fit on the board and do I need to buy mounting hardware separately?

The card accepts 22mm-wide drives in 30, 42, 60 and 80mm lengths; screws and standoffs are included.
