RIITOP PCIE1000M-2P Dual Port Gigabit PCIe Network Card

SKU CH-H95W-K3VGF

Dual-port PCIe Gigabit Ethernet adapter with Intel 82575EB chipset, two RJ45 connectors and a low-profile bracket included

  • Speed10/100/1000Mbps
  • Connectors2 x RJ45
  • InterfacePCI-Express
  • Features1. Adopt chip of lnte82575EB, has a powerful and stable perf
  • Dimensions12*11*2 cm / 4.7*4.3*0.8in.
  • Weight75g / 2.5oz.

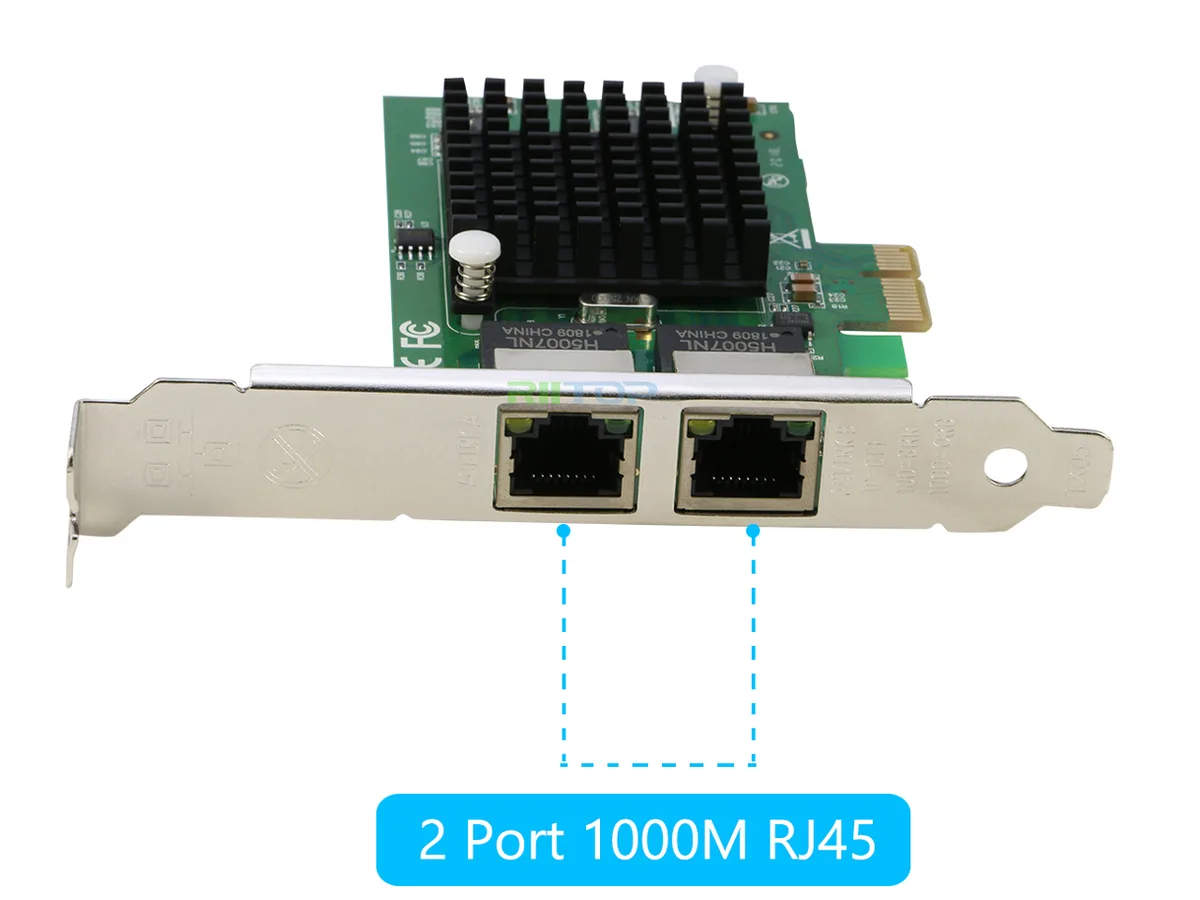

  • Dual RJ45 ports deliver two Gigabit links for server or router builds
  • Intel 82575EB chipset provides reliable 10/100/1000 Mbps throughput on each port
  • Low-profile bracket included fits slim 2U chassis and standard cases alike
  • PCIe x1 interface works in x1, x4, x8 or x16 slots for flexible installation
  • Broad OS support covers Windows 2000 through 10 and Linux for quick deployment

Dual-Port Gigabit PCIe Adapter

The RIITOP PCIE1000M-2P adds two RJ45 Gigabit Ethernet ports through a single PCI Express x1 slot. It uses the Intel 82575EB controller and includes a low-profile bracket for compact chassis. A heatsink and gold-plated edge connector are fitted as standard. The card supports Windows 2000 through Windows 10 and Linux.

Suited to servers and soft-router builds

This card fits administrators who need two wired links for VLAN aggregation, ESXi hosts, PXE boot or diskless workstations. It is not for systems lacking a free PCIe slot. It is not for buyers who require wireless connectivity or fibre uplinks. It is not for installations that need more than two copper ports.

Intel 82575EB dual-port controller

The onboard Intel 82575EB chip drives both RJ45 ports at 10, 100 or 1000 Mbps. It handles IEEE 802.3, 802.3u, 802.3ab, 802.3x, 802.1q and 802.1p standards. The PCIe x1 interface is also compatible with x4, x8 and x16 slots. Driver CD is included in the package.

Highlights

  • Dual RJ45 ports deliver two Gigabit links for server or router builds
  • Intel 82575EB chipset provides reliable 10/100/1000 Mbps throughput on each port
  • Low-profile bracket included fits slim 2U chassis and standard cases alike
  • PCIe x1 interface works in x1, x4, x8 or x16 slots for flexible installation
  • Broad OS support covers Windows 2000 through 10 and Linux for quick deployment

Specifications

BrandRIITOP
ModelPCIE1000M-2P (RIITOP 2-Port 1000M PCIe Express Network Adapter Card NIC Intel 82575 Chipset Dual RJ45 PCI Express Gigabit Ethernet Lan Card Come with Low Profile Bracket)
Speed10/100/1000Mbps
Connectors2 x RJ45
InterfacePCI-Express

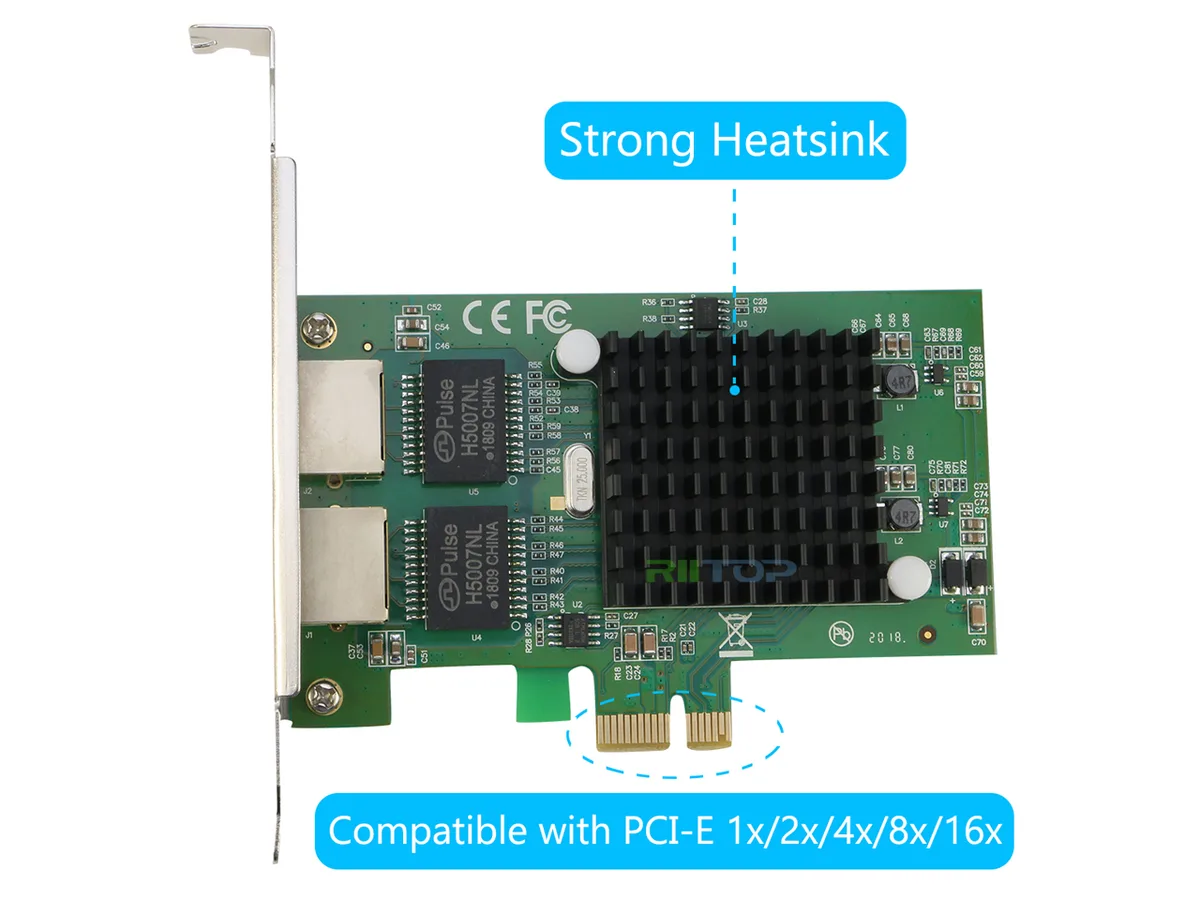

Features1. Adopt chip of lnte82575EB, has a powerful and stable performance. 2. Dual port Gigabit network, can reach the speed up to 1000Mbps. 3. Using a powerful heat sink, can effectively discharge excess heat, prevent high temperature damage, improve work stability and service life. 4. You can use it in various places, such as office, internet cafe, monitoring, data server, etc. 5. Support for windows7, 8, 10, for LINUX. 6. Gold-plated PCI-E connecting finger. 7. With a dual filter design, guarantee the transmission distance. 8. With a baffle, adapt to different models of computer case. 9
Dimensions12*11*2 cm / 4.7*4.3*0.8in.
Weight75g / 2.5oz.
Package Contents1x PCIE Dual Port Network Card Adapter(10/100/1000M). 1x Low Profile Bracket. 1x Drive CD.
Class1000M, Dual RJ45

Questions about this item

What throughput ceiling will I hit first when both ports run at full load for hours?

Each port tops out at 1000Mbps, so the practical limit is the 1Gbps line rate on either RJ45 connection.

How warm does the card get and how much power does it draw during all-day operation?

A built-in metal heat sink dissipates excess heat to keep temperatures stable; the PCIe x1 slot supplies all required power without an extra connector.

Which slot type and bracket does my chassis need to accept this adapter?

It fits a PCIe x1 slot and is also compatible with x4, x8 or x16 slots; both a standard and a low-profile bracket are included.
