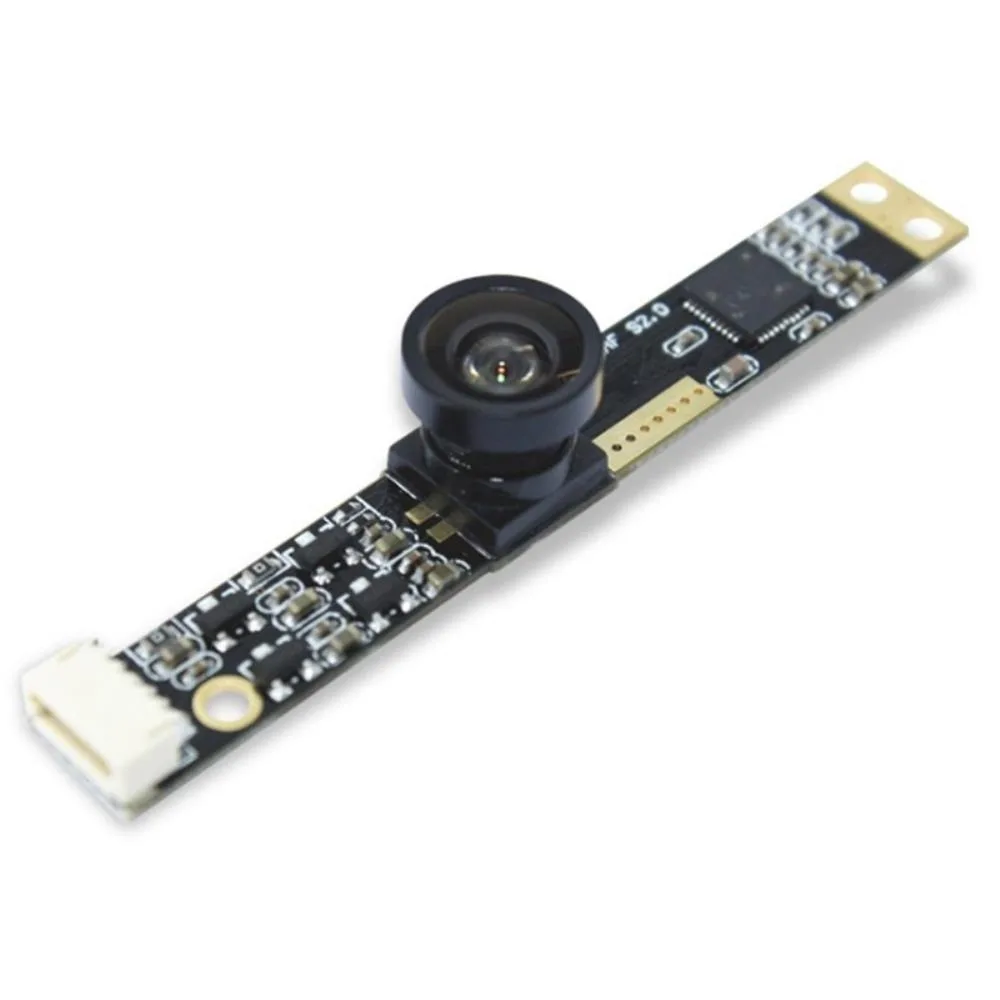

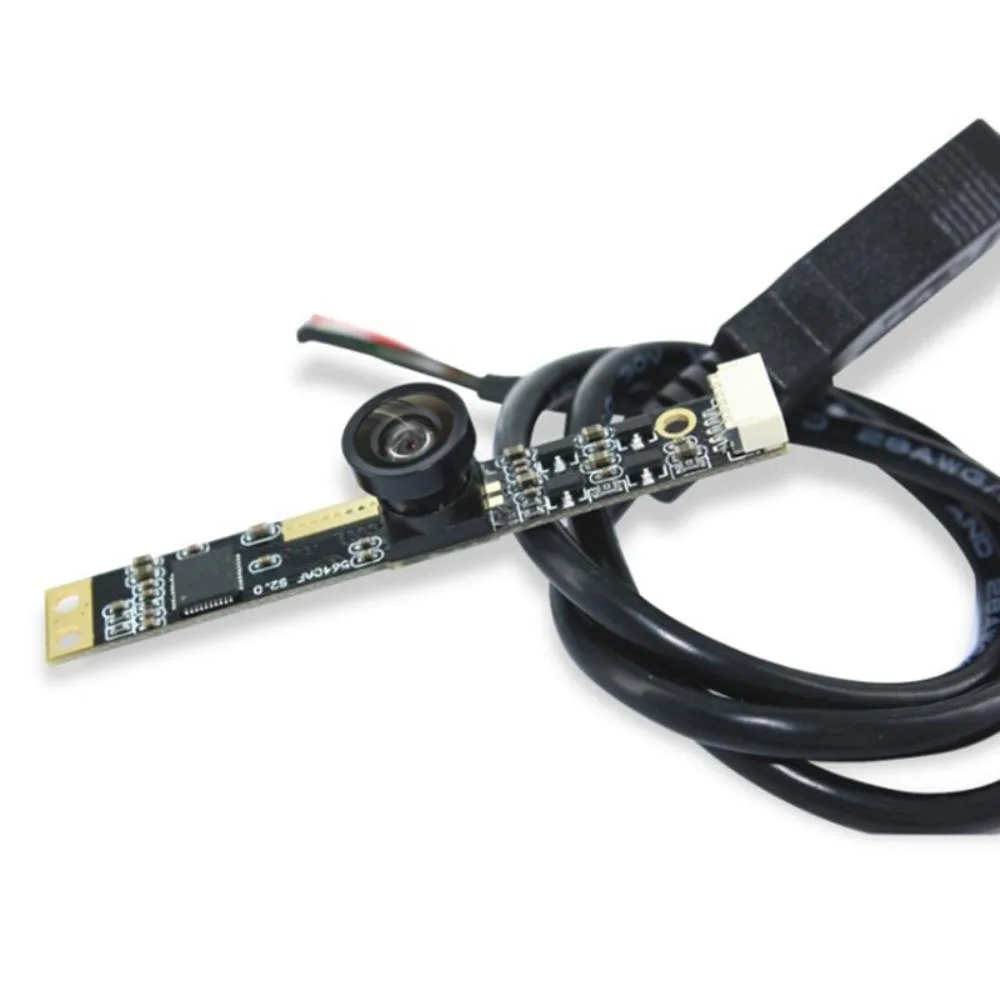

Small black rectangular camera module with wide-angle lens and attached USB cable

Revitol

Revitol 5MP OV5640 USB Camera Module 160° Wide Angle

SKU CH-R5QD-8NJYV

A 5 MP OV5640 USB 2.0 camera module with a 160° wide-angle lens and fixed focus from 30 cm to 200 cm

  • TypeCable Extender
  • 5 MP OV5640 sensor captures detailed 2592 × 1944 images
  • 160° wide-angle lens fits more scene into every frame
  • Fixed focus from 30 cm to 200 cm keeps subjects sharp without adjustment
  • USB 2.0 bus power means no extra adapter is needed
  • Operates reliably from -20 °C to 70 °C for tough environments

Revitol 5MP OV5640 USB Camera Module

The Revitol 5MP OV5640 USB Camera Module is a compact camera accessory with a 160° wide-angle lens. It uses a 1/4-inch OV5640 sensor with a 2592 x 1944 active array and 1.4µm pixels. The module suits DIY projects, basic monitoring or embedded vision tasks that need a broad field of view.

Plug-and-play USB 2.0 installation with fixed focus

The module draws power from the USB 2.0 bus and requires no external supply. Fixed focus keeps setup simple, but the 30 cm to 200 cm object distance means subjects closer than 30 cm stay blurry. The 60 mm x 8.5 mm x 12.8 mm board fits tight spaces, yet the short 1.6 mm EFL and 160° FOV produce strong barrel distortion near edges.

5 MP stills at 15 fps QSXGA with 160° coverage

The sensor delivers 5 MP stills and streams QSXGA at 15 fps over USB 2.0 bandwidth. Power draw stays at 200 mW at full resolution and 150 mW at VGA. Stable image quality is specified from 0 °C to 50 °C, while the module operates down to -20 °C. The 650 nm IR filter and 70 % relative illumination limit low-light and near-infrared performance.

Highlights

  • 5 MP OV5640 sensor captures detailed 2592 × 1944 images
  • 160° wide-angle lens fits more scene into every frame
  • Fixed focus from 30 cm to 200 cm keeps subjects sharp without adjustment
  • USB 2.0 bus power means no extra adapter is needed
  • Operates reliably from -20 °C to 70 °C for tough environments

Specifications

TypeCable Extender

Questions about this item

How do I verify the Revitol 5MP OV5640 camera is working correctly after plugging it into a USB 2.0 port?

Open the Windows camera app or any UVC-compatible viewer; the module should enumerate instantly, show a live 160° wide-angle feed at up to 15 fps for QSXGA resolution, and maintain stable image quality between 0 °C and 50 °C operating temperature.

What comes in the box with the Revitol 5MP OV5640 module and what must I purchase separately?

The package includes one camera module measuring 60 mm × 8.5 mm × 12.8 mm and one USB cable for bus-powered operation; no lens adapters, mounts, or additional drivers are supplied.

Which version of the Revitol 5MP OV5640 should I choose for a fixed-focus, wide-angle USB 2.0 camera?

Only one version is offered: a 5 MP OV5640 sensor with fixed focus, 160° field of view, 1.6 mm effective focal length, and USB 2.0 interface — no alternate resolutions, lens options, or connectivity variants are available.
