REUMAR AH 9066 900 MHz Wireless AP 16 MB/s 2600 ft

900 MHz Wireless Bridge Pair

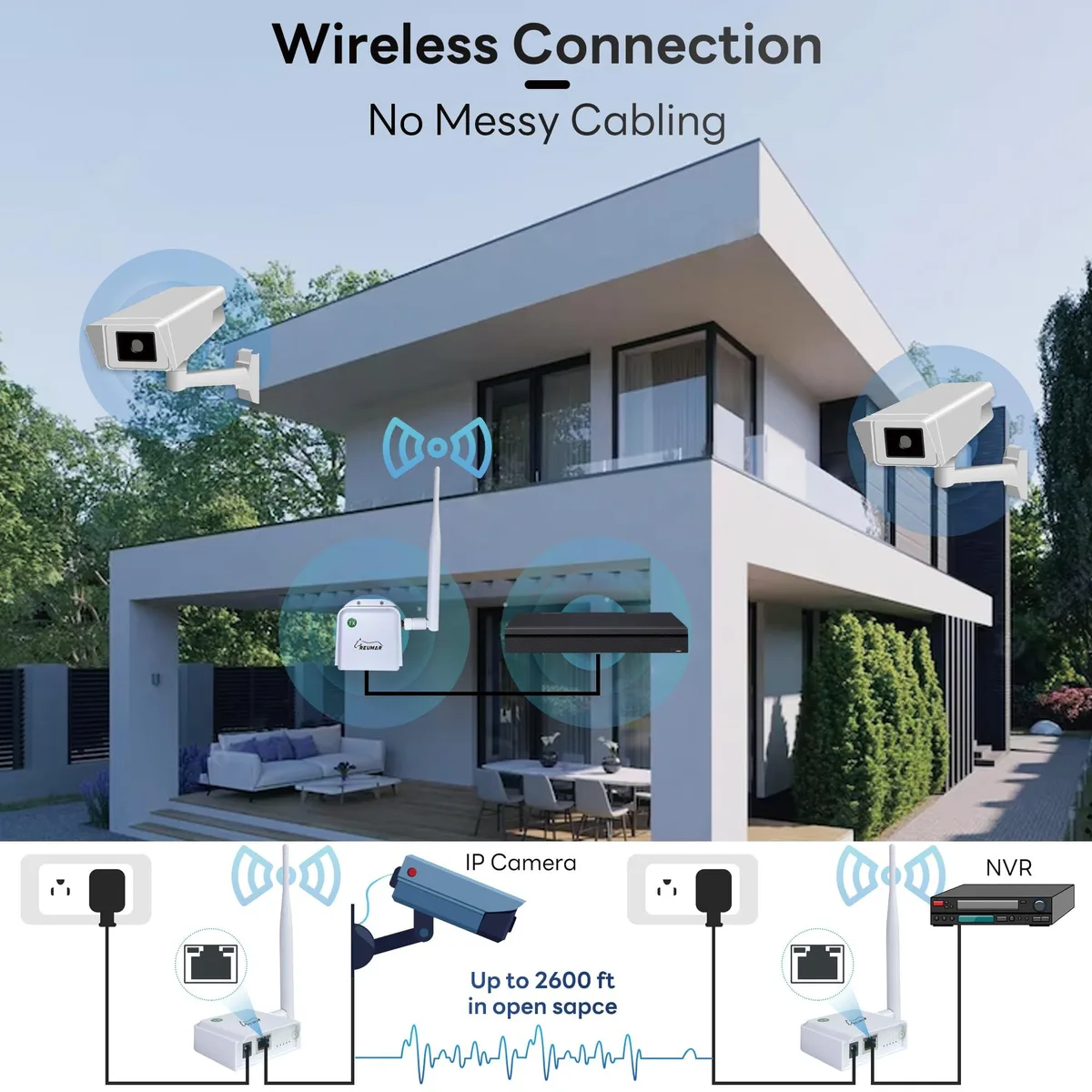

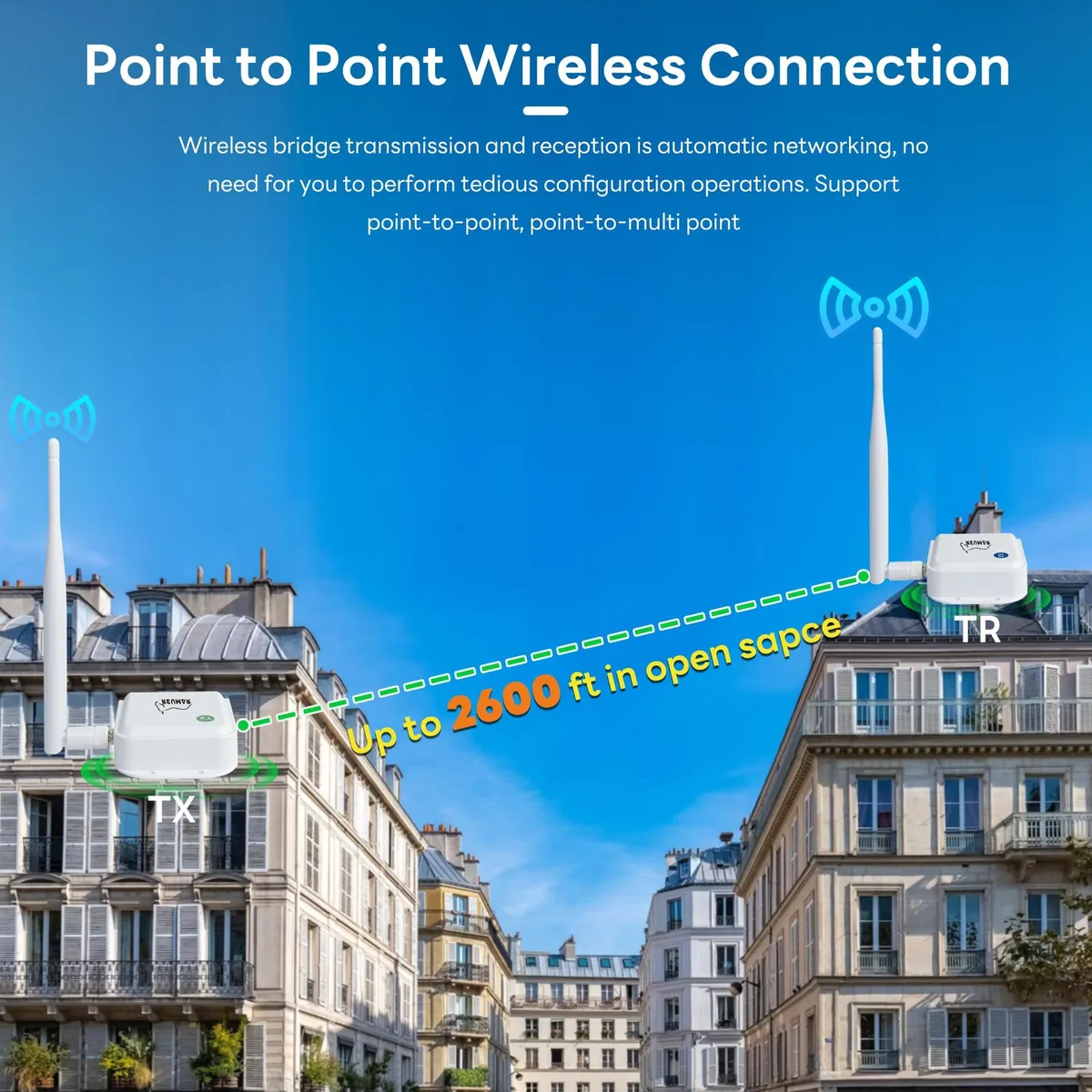

The REUMAR AH 9066 is a point-to-point wireless bridge operating on the 900 MHz radio frequency. It ships as a matched transmitter and receiver set designed to link two locations without running cable. The single-band unit complies with the 802.11ah standard and includes two 2 dBi high-gain antennas for directional alignment. It targets installers who need a dedicated long-range link for IP cameras or remote sensors.

Sustained Throughput and Range

The link delivers a maximum data rate of 16 megabytes per second within the 902 to 928 MHz band using an 8 MHz channel bandwidth. Line-of-sight reach is rated at 2600 feet, while obstacles such as walls reduce practical distance to roughly 1000 meters. The radio maintains the connection continuously rather than bursting, supporting up to eight associated devices without dropping the bridge. Actual throughput varies with interference and alignment precision.

Pre-Installation Checklist

Verify that both ends have a clear mounting position for the included antennas and a wired Ethernet path to the local network switch or router. Each unit requires a USB power source; confirm the adapter can supply sufficient current for continuous operation. The 900 MHz band differs from common 2.4 GHz equipment, so ensure no regulatory restriction applies at the installation site. No configuration software is mentioned, so plan for a plug-and-play deployment.
