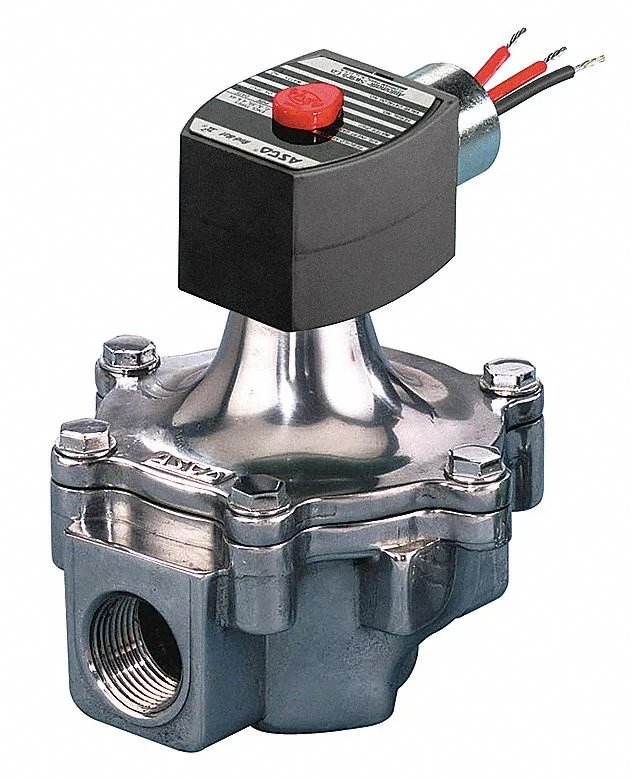

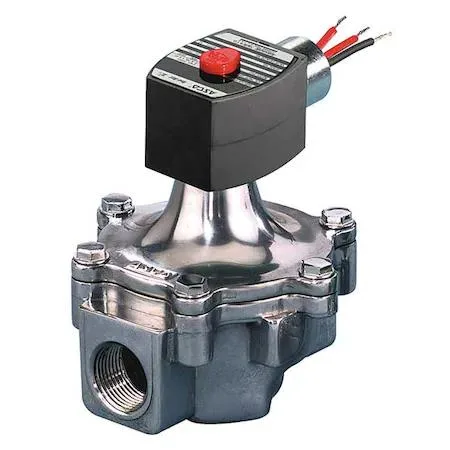

Aluminium solenoid valve body, 1-1/4 inch port, explosion-proof coil enclosure

Red Hat

Red Hat ASCO EF8215B060 2-Way Solenoid Valve 1-1/4 in

SKU CH-H61Y-FMY4J

A 1-1/4 in normally-closed solenoid valve with a 32 Cv aluminium body, NBR seals and an explosion-proof coil rated for 110 V or 120 V AC at up to 25 psi air pressure

  • TypeOther
  • High-flow 2-way valve delivers Cv 32 performance
  • Normally closed design ensures safe default shut-off
  • Explosion-proof coil enclosure protects hazardous-area installations
  • Aluminium body with NBR seals resists corrosion and wear
  • Dual 110/120 V AC voltage simplifies wiring flexibility

Industrial 2-Way Solenoid Valve

The Red Hat ASCO EF8215B060 is a normally closed, high-flow solenoid valve built for 1-1/4 inch piping. Its aluminum body and NBR seals suit air and inert gas lines in industrial and commercial installations. The unit operates on 110V AC or 120V AC power and carries an explosion-proof coil enclosure for hazardous-area compliance. It is intended for engineers specifying reliable on-off control in medium-pressure systems.

25 psi Air Pressure Limit

The valve handles a maximum operating pressure differential of 25 psi for air and inert gas service. Fuel gas and fuel oil ratings are not applicable, so the device must not be used with those media. The explosion-proof coil enclosure adds safety in classified locations but does not extend the pressure envelope. Designers must verify that system pressure stays within this ceiling before installation.

Cv 32 Flow Capacity

A flow coefficient of 32 provides generous capacity for 1-1/4 inch lines carrying air or inert gas at modest pressure drops. The 1-5/8 inch orifice supports high-volume throughput while the normally closed action delivers fail-safe shutoff on power loss. Systems demanding pressure differentials above 25 psi or compatibility with fuel media will require a different valve series.

Highlights

  • High-flow 2-way valve delivers Cv 32 performance
  • Normally closed design ensures safe default shut-off
  • Explosion-proof coil enclosure protects hazardous-area installations
  • Aluminium body with NBR seals resists corrosion and wear
  • Dual 110/120 V AC voltage simplifies wiring flexibility

Specifications

BrandASCO
TypeOther

Questions about this item

Should I choose the 110 V AC or the 120 V AC version for my installation?

Both voltages are supported by the same coil; the valve operates on either 110 V AC or 120 V AC without any hardware change.

What does the Cv 32 rating mean for actual flow through the valve?

A Cv of 32 indicates the valve passes 32 US gallons per minute of water with a 1 psi pressure drop across the 1-1/4 in port.

How does the 25 psi maximum pressure differential limit the air or inert-gas applications I can use it for?

The valve is rated for a maximum operating pressure differential of 25 psi on air or inert gas; systems exceeding that pressure require a different valve.
