Red Hat

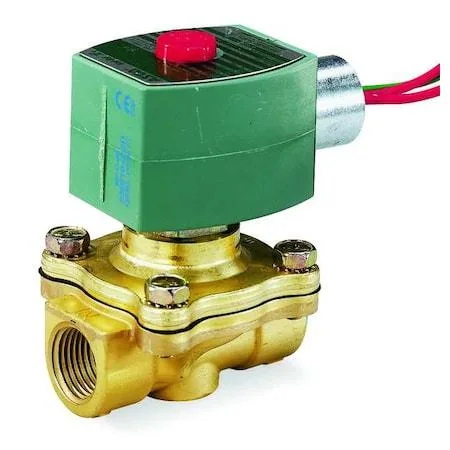

Red Hat ASCO 8210G095 Solenoid Valve 2-Way 2-Position Normally Closed 3/4 in
Pilot-operated normally closed solenoid valve controls air, inert gases and water with a 3/4 in orifice, Cv 5, brass body, NBR seals, 24 V AC coil, IP66 and NEMA 4X ratings, 0-150 psi range.
- TypeOther
- Pilot-operated design handles 0 to 150 psi differential pressure
- Brass body with NBR seals resists corrosion in water and air systems
- IP66 and NEMA 4X watertight enclosure suits indoor and outdoor installation
- 24 V AC coil with 10.1 W consumption simplifies low-voltage wiring
- 3/4 in NPTF connections with Cv 5 provide high flow capacity
Valve Type and Application
The ASCO 8210G095 is a pilot-operated, normally closed solenoid valve designed to control air, inert gases and water. It suits process-control and automation systems that require a 2-way, 2-position valve with a Cv of 5 and a 3/4-inch orifice.
Installation and Common Issues
The valve body is brass with NPTF connections and includes the coil and seals, so pipe-thread assembly is straightforward. Vertical mounting orientation is supported. Incorrect voltage applied to the 24V AC coil or debris in the NBR seal area are the usual causes of failure.
Capacity and Limits
Operating pressure differential ranges from 0 to 150 psi for air, inert gas and water. Fluid temperature is rated up to 180°F and ambient temperature from 14°F to 140°F. The IP66-rated watertight enclosure allows indoor and outdoor use, but the 10.1 W coil limits continuous duty cycles in high-heat environments.
Highlights
- Pilot-operated design handles 0 to 150 psi differential pressure
- Brass body with NBR seals resists corrosion in water and air systems
- IP66 and NEMA 4X watertight enclosure suits indoor and outdoor installation
- 24 V AC coil with 10.1 W consumption simplifies low-voltage wiring
- 3/4 in NPTF connections with Cv 5 provide high flow capacity
Specifications
| Brand | ASCO |
|---|---|
| Type | Other |
Questions about this item
How can I verify the ASCO 8210G095 is operating correctly after installation?
Apply 24V AC power and confirm the valve opens to allow flow; remove power and verify it closes with zero leakage at up to 150 psi differential.
What components are included with the ASCO 8210G095 and what must be sourced separately?
The valve body, brass construction with NBR seals, integrated coil, and 1/2 in conduit hub are supplied; piping, 24V AC power source, and thread sealant are not included.
Which ASCO 8210G095 configuration suits my pressure and temperature requirements?
This single model handles 0–150 psi for air, inert gas, and water with fluid temperatures up to 180°F and ambient range of 14°F to 140°F.
