Red Hat

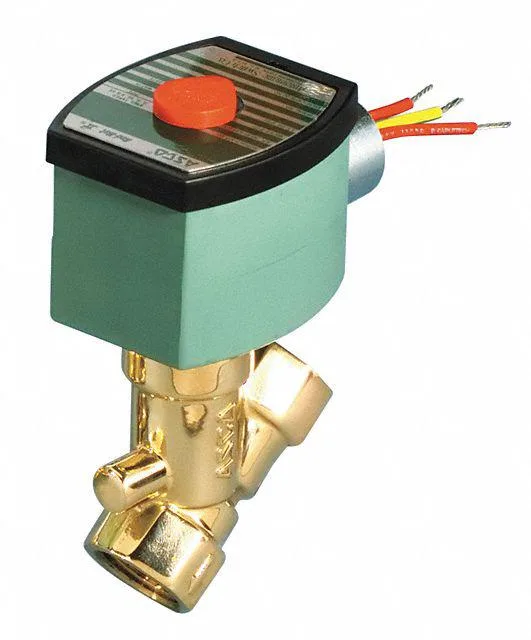

Red Hat ASCO 8030G069 Solenoid Valve 1/2 in NPTF
A normally closed 2-way solenoid valve with brass body, included 120V AC coil, 2.8 Cv flow and 8 psi maximum pressure for gas burner control
- TypeOther
- Normally closed 2-way valve stops gas flow when de-energised
- Brass body resists corrosion in indoor and outdoor installations
- 120 V AC coil with Class F insulation included for direct wiring
- 8 Cv flow coefficient delivers 151000 BtuH gas capacity
- Mounts horizontally or vertically within 32 °F to 125 °F ambient range
Valve for Commercial Gas Burners
The ASCO 8030G069 is a normally closed, two-way solenoid valve built to control commercial and industrial gas burners. It operates on a 120V AC supply at 60 Hz and ships with the required coil included. The brass body carries an NBR seal and a 7/16 in orifice, suited for air, inert gases, and water up to 125°F fluid temperature. Installers can mount it horizontally or vertically in indoor or outdoor locations.
Pressure and Flow Limits
The valve handles a maximum operating pressure differential of 8 psi with a minimum of 0 psi. Its flow coefficient (Cv) is 2.8, delivering a gas capacity of 151000 BtuH. The coil draws 10.1 W with Class F insulation and uses a DIN electrical connection inside a high-temperature enclosure without a junction box. Ambient temperatures must stay between 32°F and 125°F for reliable operation.
Check Pipe Size and Voltage Before Ordering
Confirm your piping uses 1/2 inch NPTF threads to match the valve connections. Verify the control circuit supplies 120V AC at 60 Hz, as other voltages or frequencies are not supported. Ensure the system pressure differential will not exceed 8 psi and that the media temperature stays within the 125°F maximum. The overall dimensions are 4-5/16 in height, 2-9/32 in length, and 1-15/16 in width for clearance planning.
Highlights
- Normally closed 2-way valve stops gas flow when de-energised
- Brass body resists corrosion in indoor and outdoor installations
- 120 V AC coil with Class F insulation included for direct wiring
- 8 Cv flow coefficient delivers 151000 BtuH gas capacity
- Mounts horizontally or vertically within 32 °F to 125 °F ambient range
Specifications
| Brand | ASCO |
|---|---|
| Type | Other |
Questions about this item
Which voltage and frequency version of the ASCO 8030G069 matches a 120V 60 Hz supply?
The 8030G069 operates on 120V AC at 60 Hz and includes the required coil, so this single listed version fits that supply directly.
What does the 151000 BtuH gas capacity mean for a burner installation?
It indicates the valve can pass enough fuel for a burner rated up to 151000 BtuH when the pressure differential stays within the 8 psi maximum.
How does the 1/2 in NPTF connection affect pipe sizing and flow?
The 1/2 in NPTF threads match standard 1/2 inch pipe, and the 2.8 Cv flow coefficient determines the actual flow rate at the allowed 8 psi differential.
