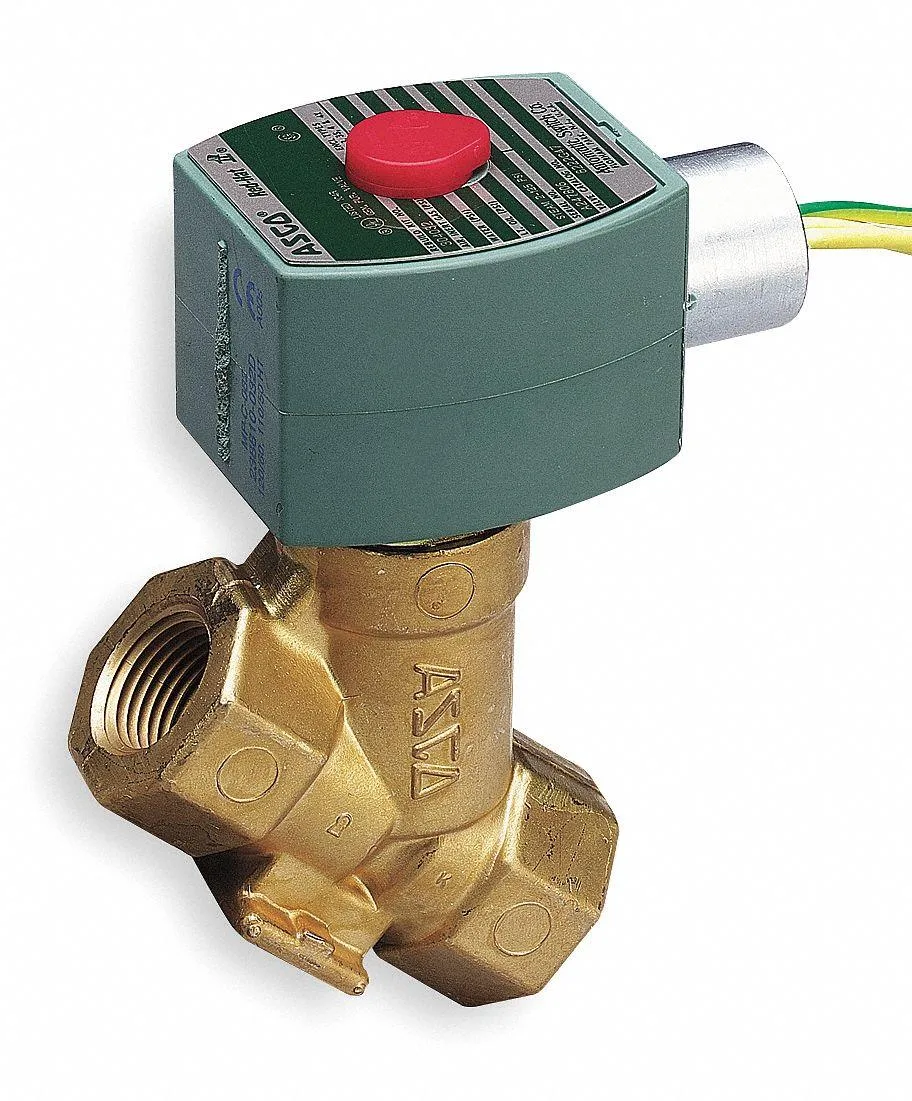

Brass Y-shaped solenoid valve body with conduit connection

Red Hat

Red Hat 8222G074 3/8 in Solenoid Valve Trap

SKU CH-4WMQ-0SS2V MPN 8222G074

A normally closed 2-way solenoid valve for steam service with brass body, PTFE seals, 3/8 inch NPT connections, 120V AC coil, and 135 psi maximum steam differential pressure

  • TypeDrain Components
  • Normally closed design prevents unwanted flow
  • Pilot-operated brass body handles steam up to 353°F
  • PTFE seals resist high-temperature media
  • 120V AC coil works at 50 Hz and 60 Hz
  • 18-inch leads connect via 1/2 inch conduit

Industrial Steam Control Valve

The ASCO 8222G074 is a pilot-operated solenoid valve designed for steam service in industrial plumbing systems. It operates in a normally closed, two-way configuration with a brass Y-shaped diaphragm body and PTFE seals. The unit includes the coil and 18-inch leads for 120V AC power at 50 Hz or 60 Hz frequencies. It suits maintenance teams and OEMs needing reliable high-temperature fluid control.

Brass Body With Conduit Connection

The valve installs via 3/8 inch NPTF inlet and outlet threads, fitting directly into compatible piping without adapters. Electrical supply enters through a 1/2 inch conduit fitting, simplifying wiring in panel or junction-box installations. Ambient temperature tolerance from 32°F to 125°F allows placement in typical mechanical rooms. The integrated coil removes the need for separate actuator mounting.

135 PSI Steam Differential Limit

The valve handles steam up to 353°F at a maximum differential pressure of 135 psi, with a minimum operating differential of 1 psi for water service. Pilot-operated action requires this pressure drop to shift reliably, so very low-pressure or vacuum lines are not suitable. California Proposition 65 warnings apply for chemical exposure. Systems exceeding the pressure or temperature ratings need a different valve class.

Highlights

  • Normally closed design prevents unwanted flow
  • Pilot-operated brass body handles steam up to 353°F
  • PTFE seals resist high-temperature media
  • 120V AC coil works at 50 Hz and 60 Hz
  • 18-inch leads connect via 1/2 inch conduit

Specifications

TypeDrain Components
BrandRed Hat
Model8222G074

Questions about this item

How long will the PTFE diaphragm hold up at the 353 °F steam rating before it starts to degrade?

The PTFE seals and brass body are rated for continuous steam service up to 353 °F and 135 psi differential, so the diaphragm remains within its design limits under those conditions.

How hot does the coil get when the valve stays energised all day at 120 V AC?

The coil is designed for 120 V AC at 50 Hz and 60 Hz within a 32 °F to 125 °F ambient range; it will reach its normal operating temperature without exceeding the insulation class.

Do I need a separate 1/2 inch conduit fitting and 120 V AC supply to wire this valve?

Yes, the valve ships with 18-inch leads and requires a 1/2 inch conduit connection plus a 120 V AC circuit compatible with 50 Hz or 60 Hz.
