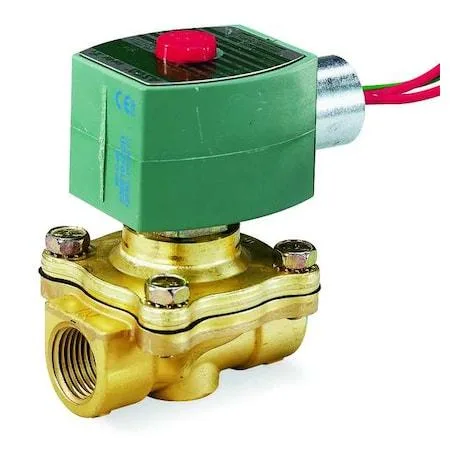

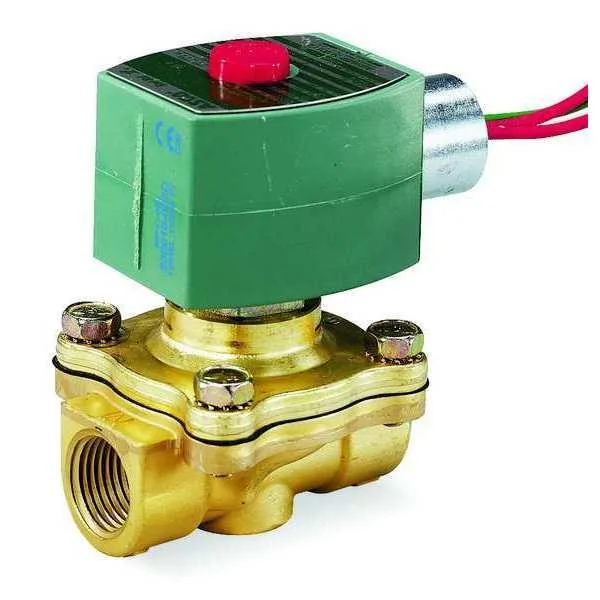

Brass solenoid valve, compact cylindrical body, 24V DC coil, 3/8 inch ports

Red Hat

Red Hat 8210G093 24V DC Brass Solenoid Valve Trap

SKU CH-95EK-DHSM4 MPN 8210G093

A 24V DC brass solenoid valve for air, inert gases and water with a 3.0 flow coefficient and 40 psi pressure rating

  • TypeDrain Components
  • 24 V DC coil enables low-voltage control
  • Normally closed design stops flow when de-energised
  • Brass body resists corrosion from air, water and inert gases
  • 0 Cv coefficient delivers high flow capacity
  • Rated for 40 psi differential pressure with air and water

24V DC Brass Solenoid Valve

This normally closed valve controls air, inert gases and water in a 2-way, 2-position configuration. The brass body and Class F coil insulation suit indoor or outdoor plumbing and automotive tool installations. It operates on 24V DC power and requires no minimum pressure differential to open.

Sustained pressure performance

The valve maintains a 3.0 coefficient of volume across its rated range. Maximum operating pressure differential is 40 psi for both air or inert gas and water service, while light oil duty is not rated. This limit applies continuously rather than only during brief actuation cycles.

3/8 inch pipe interface

The 3/8 inch pipe size sets the practical flow capacity for the system. California Proposition 65 warnings note the presence of chemicals known to cause cancer and reproductive harm, which may restrict use in certain regulated environments. No other media or pressure ratings are specified for this model.

Highlights

  • 24 V DC coil enables low-voltage control
  • Normally closed design stops flow when de-energised
  • Brass body resists corrosion from air, water and inert gases
  • 0 Cv coefficient delivers high flow capacity
  • Rated for 40 psi differential pressure with air and water

Specifications

TypeDrain Components
BrandRed Hat
Model8210G093

Questions about this item

How much power does the 24V DC coil draw when the valve runs continuously?

The coil is rated for Class F insulation and a 24V DC supply; continuous duty is supported within the specified pressure range.

What pipe fittings and media supply are needed to install the 3/8 in brass valve?

It requires 3/8 inch pipe connections and a clean supply of air, inert gas, or water at up to 40 psi differential.

Will the 3.0 Cv flow coefficient work with older 3/8 in piping in my system?

The 3.0 Cv rating matches standard 3/8 inch lines for air, inert gas, or water service up to 40 psi.
