Red Hat
Red Hat 8210 Solenoid Valve 2-Way 1-1/2 in 24V DC
Controls air, inert gases, light oil or water flow with a 22.5 Cv brass body rated to 125 psi at 24V DC
- TypeOther
- High flow capacity with 22.5 Cv rating
- Reliable shut-off via normally closed 2-way design
- Durable brass body resists corrosion in fluid systems
- Compatible with air, inert gases, light oil and water
- Operates on 24V DC with 125 psi max air pressure

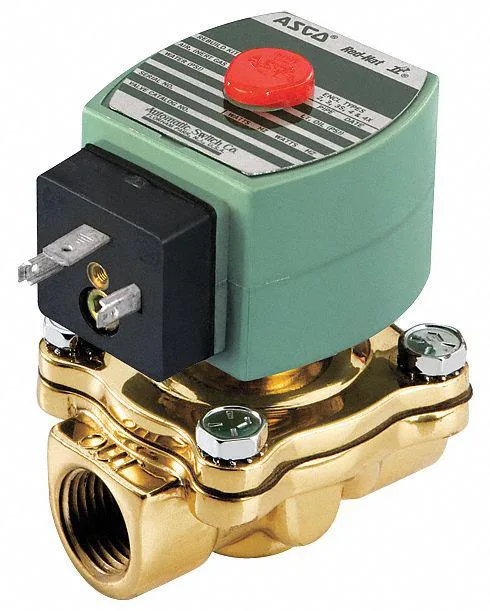

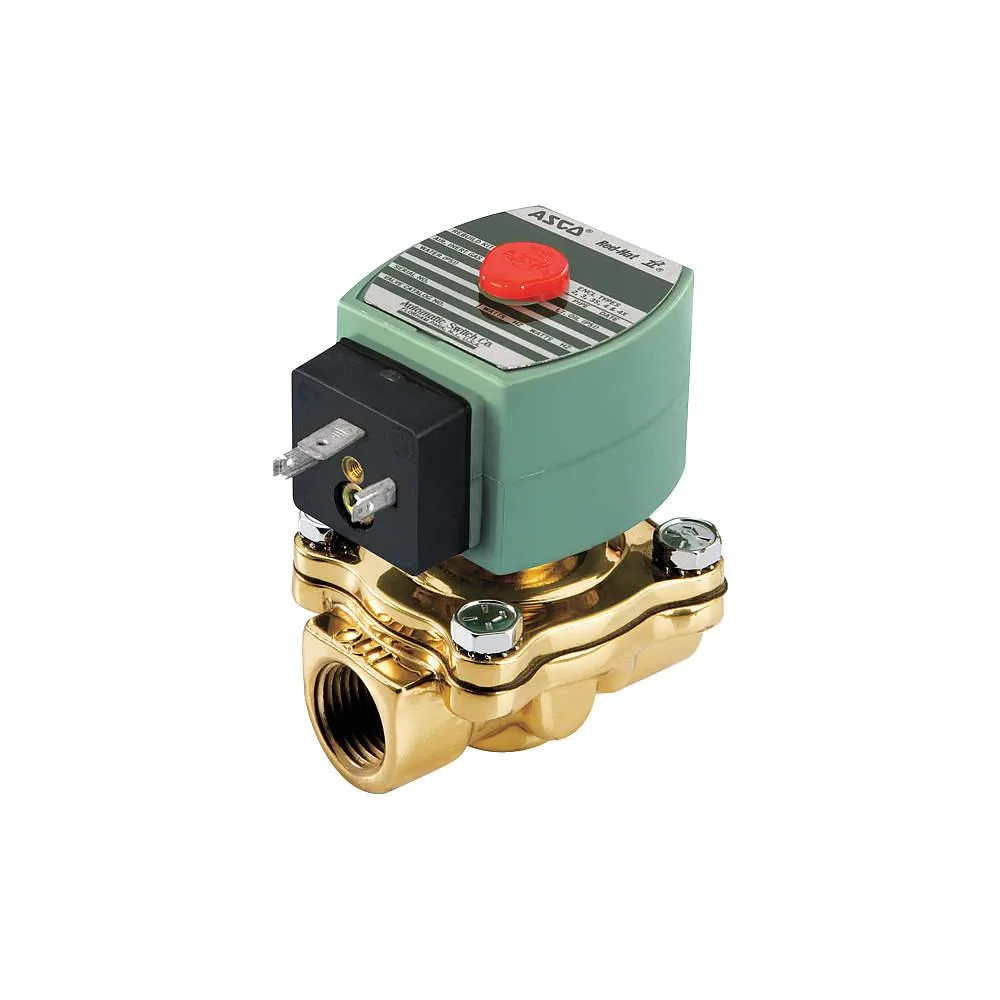

Red Hat 8210 Solenoid Valve
The Red Hat 8210 is a normally closed, two-way solenoid valve built for on-off control of air, inert gases, light oil or water. It suits plant engineers and maintenance teams who need a reliable brass-bodied shut-off valve for 1-1/2 inch piping systems.
22.5 Cv flow capacity
The valve delivers a coefficient of volume of 22.5 through a 1-1/4 inch orifice, which determines the flow rate at a given pressure drop. Select this model when the system requires that specific Cv value to meet the designed flow specification.
125 psi maximum air pressure
Operating pressure differential for air or inert gas is rated up to 125 psi, and the 24V DC coil draws modest power while staying cool in continuous duty. The NBR seals and brass body resist wear in normal indoor service, keeping noise and heat low during routine cycling.
Highlights
- High flow capacity with 22.5 Cv rating
- Reliable shut-off via normally closed 2-way design
- Durable brass body resists corrosion in fluid systems
- Compatible with air, inert gases, light oil and water
- Operates on 24V DC with 125 psi max air pressure
Specifications
| Brand | ASCO |
|---|---|
| Type | Other |
Questions about this item
What does the 22.5 Cv rating mean for flow through this valve?
A Cv of 22.5 indicates the valve can pass 22.5 US gallons per minute of water with a 1 psi pressure drop across the 1-1/4 inch orifice.
How does the 24V DC coil limit the control options for this solenoid?
The valve requires a 24V DC power source; it cannot be driven directly from AC mains or higher voltage DC without a suitable transformer or power supply.
What pipework and clearance does the 1-1/2 inch brass body need for installation?
The valve has 1-1/2 inch nominal pipe connections and a brass body; allow enough space for the coil enclosure and wiring access in the mounting orientation.
