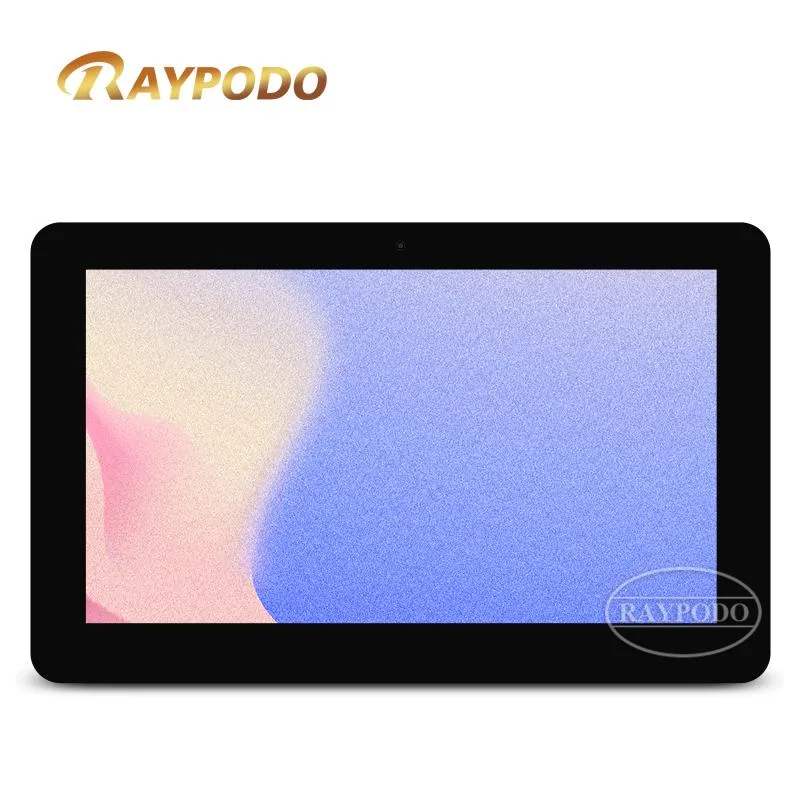

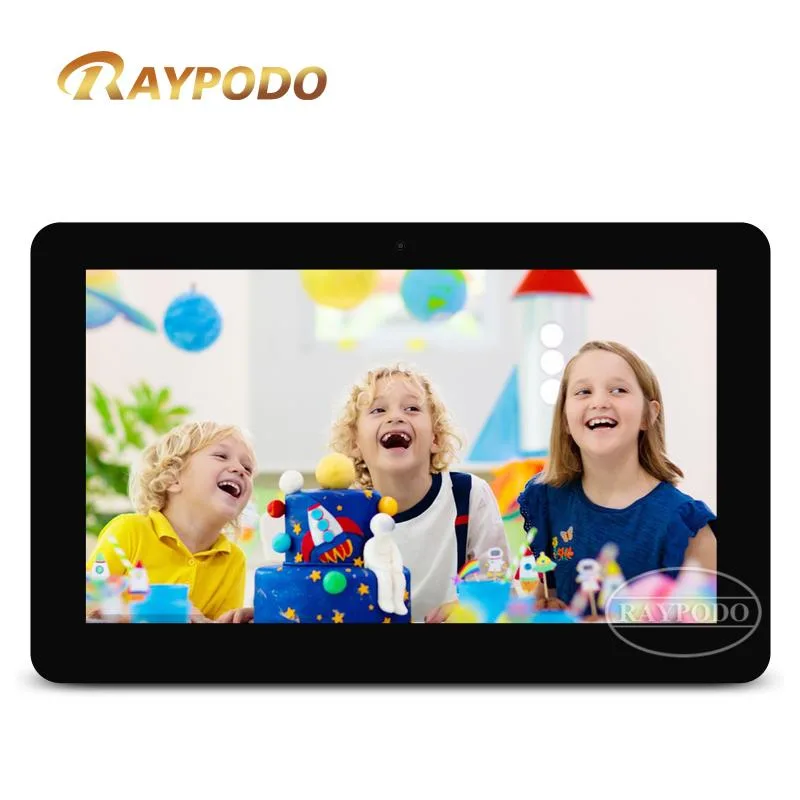

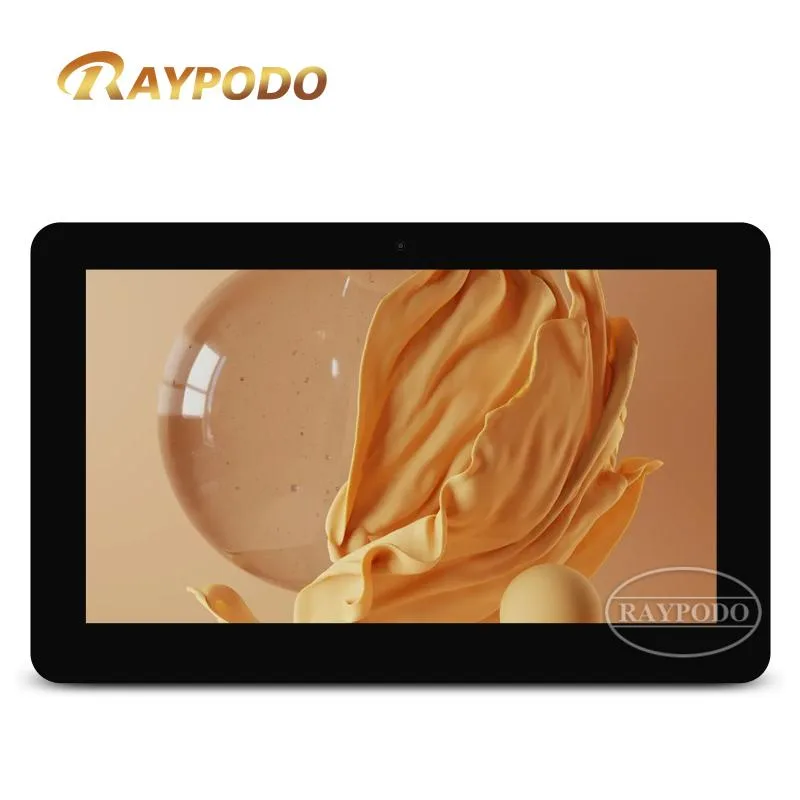

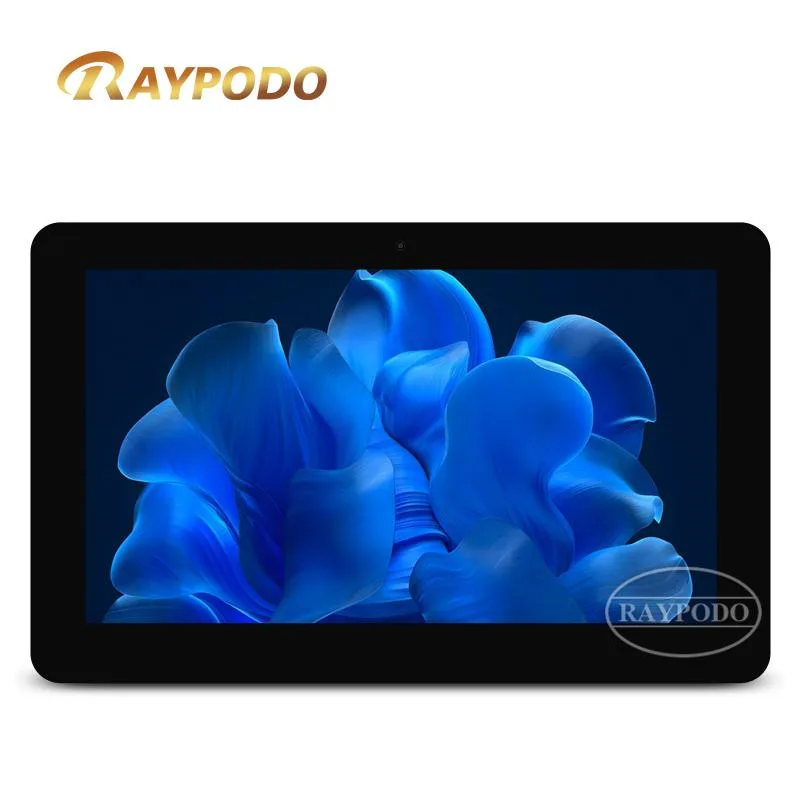

Black 14-inch Android 11 all-in-one PoE kiosk with 10-point capacitive touchscreen

RAYPODO

RAYPODO RK3566 14" Digital Signage Kiosk 2GB 32GB Android 11

SKU CH-9X1Y-1XSNY MPN RK3566

A 14-inch Android 11 kiosk with 10-point capacitive touch, 2GB LPDDR4X, 32GB eMMC and POE-powered 24/7 operation

  • Color/FinishBlack
  • TypeAll in One PC Poe Tablet
  • Operation SystemAndroid 11
  • ChipsetRK3566
  • Processor TypeQuad-Core ARM Cortex-A55
  • Processor Speed-

chip RK3566

RAM+ROM 2+32GB

  • Full HD 14-inch IPS display shows crisp 1920×1080 visuals
  • 32 GB eMMC storage holds large media libraries
  • HDMI output enables multi-screen expansion for signage
  • PoE via RJ45 delivers stable power and data 24/7
  • Battery-free design built for continuous commercial operation

14-Inch Android Kiosk

The RAYPODO RK3566 is a 14-inch all-in-one digital signage kiosk running Android 11 on a quad-core ARM Cortex-A55 processor. It integrates a Full HD IPS touchscreen, 2 GB of LPDDR4X/LPDDR4 memory and 32 GB of eMMC storage in a single black enclosure designed for continuous indoor operation. Power-over-Ethernet support allows both data and power over a single RJ45 cable.

Suited for Fixed Indoor Displays

This unit fits retailers, restaurants and offices that need a wall-mounted or desktop screen showing menus, promotions or wayfinding content 24 hours a day. The 10-point capacitive touch panel and HDMI output enable interactive or multi-screen setups. Buyers who need a portable tablet with a built-in battery, cellular connectivity or consumer-grade apps should look elsewhere.

Steady Output Over Long Shifts

With no battery to degrade, the kiosk draws constant power through PoE, eliminating charge-cycle downtime. The Mali-G52-2EE GPU drives the 1920×1080 panel at 250 cd/m² brightness during extended playback loops. Passive cooling handles the ARM Cortex-A55 workload without fan noise, while the eMMC storage and optional TF card expansion maintain read/write consistency for repeated media loading.

Highlights

  • Full HD 14-inch IPS display shows crisp 1920×1080 visuals
  • 32 GB eMMC storage holds large media libraries
  • HDMI output enables multi-screen expansion for signage
  • PoE via RJ45 delivers stable power and data 24/7
  • Battery-free design built for continuous commercial operation

Specifications

BrandRaypodo
ModelRK3566
Color/FinishBlack
TypeAll in One PC Poe Tablet
Operation SystemAndroid 11
ChipsetRK3566
Processor TypeQuad-Core ARM Cortex-A55
Processor Speed-
Screen Size14"
Resolution1920*1080
Brightness250 cd/m2
Touch Screen10-Point capacitive touch
Screen FeaturesNormally black, IPS, LCD IPS panel, 16:9 Aspect Ratio
GPU / VGA TypeMali-G52-2EE
Memory Capacity2GB
Memory Form FactorLPDDR4X/LPDDR4
Memory SpecStandard 2G LPDDR4X/LPDDR4
HDD Capacity32GB
HDD InterfaceEMMC
HDD SpecEMMC 32G (optional)
Speaker2*8Ω 2W
Audio Ports3.5mm earphone + Microphone (Optional)
LAN100M/1000M ethernet
Wireless LAN802.11b/g/n
BluetoothBluetooth 5.0
Video PortsHD-MI Output
USBUSB *2, Dual USB 3.0/one support USB OTG
RJ45RJ45 with POE
Card ReaderTF card (Max Support 128GB)
Wall MountSupported (VESA 75x75mm)
Supply12V/1.5A/3A
Features10-Point capacitive touch, Supports multiple playback modes, PTC live clock, Auto ON/OFF, Standard No Support Motion Sensor, Multi-language, Standard Front Camera 2.0 M/P, POE IEEE802.3at/af supported

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

What power infrastructure must be in place for the RK3566 kiosk to operate?

The unit requires a PoE-enabled RJ45 connection that delivers both power and data; no battery is included, so a PoE switch or injector is essential for 24/7 operation.

Can the HD-MI output drive a legacy 1080p display alongside the built-in 14" panel?

Yes, the HD-MI interface supports multi-screen expansion at 1920*1080 resolution, allowing a second Full HD monitor to mirror or extend the Android 11 desktop.

How can I verify the 10-point capacitive touchscreen is responding correctly after installation?

Open any Android app and perform simultaneous ten-finger taps or gestures; all contact points should register instantly on the 14" IPS panel without lag or missed inputs.
