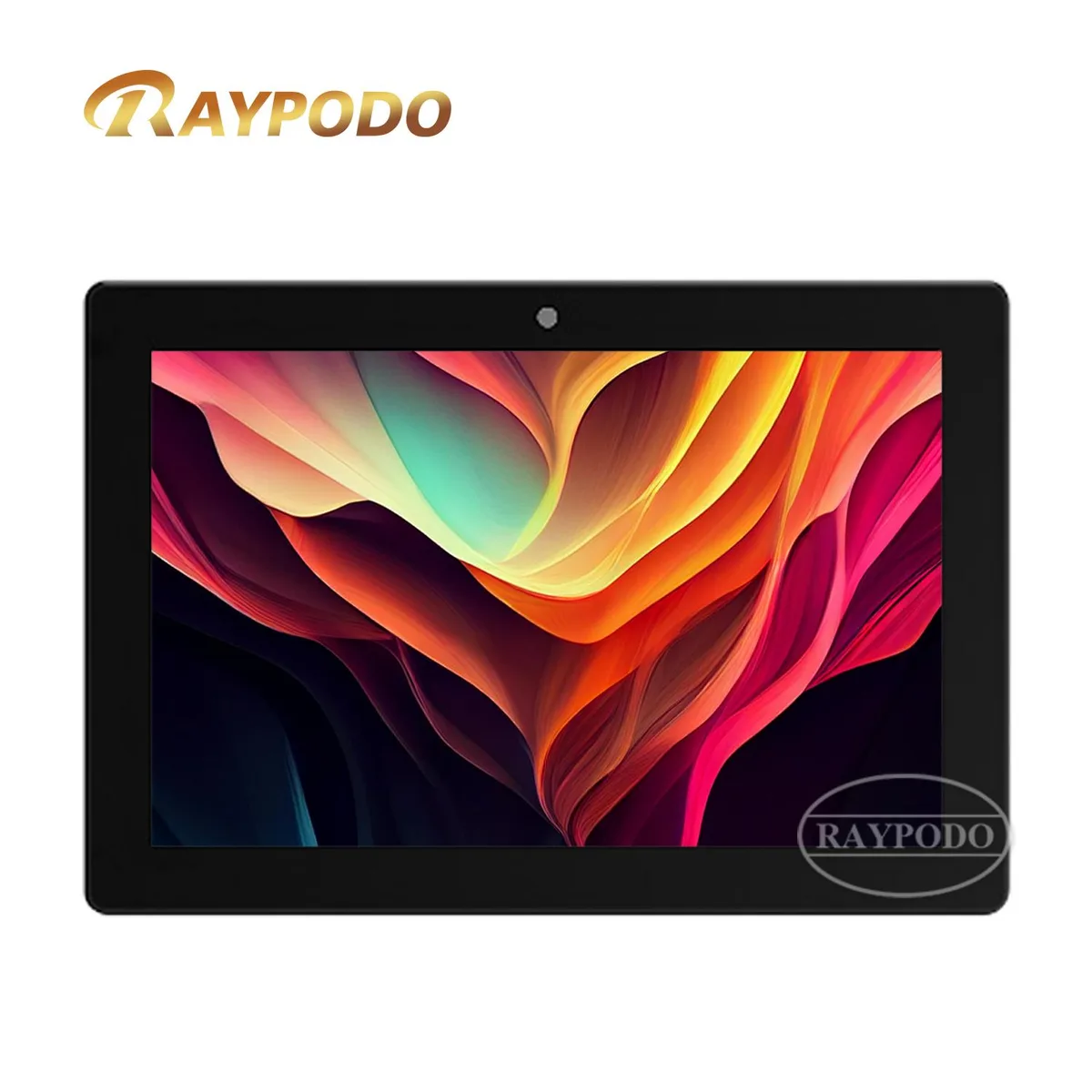

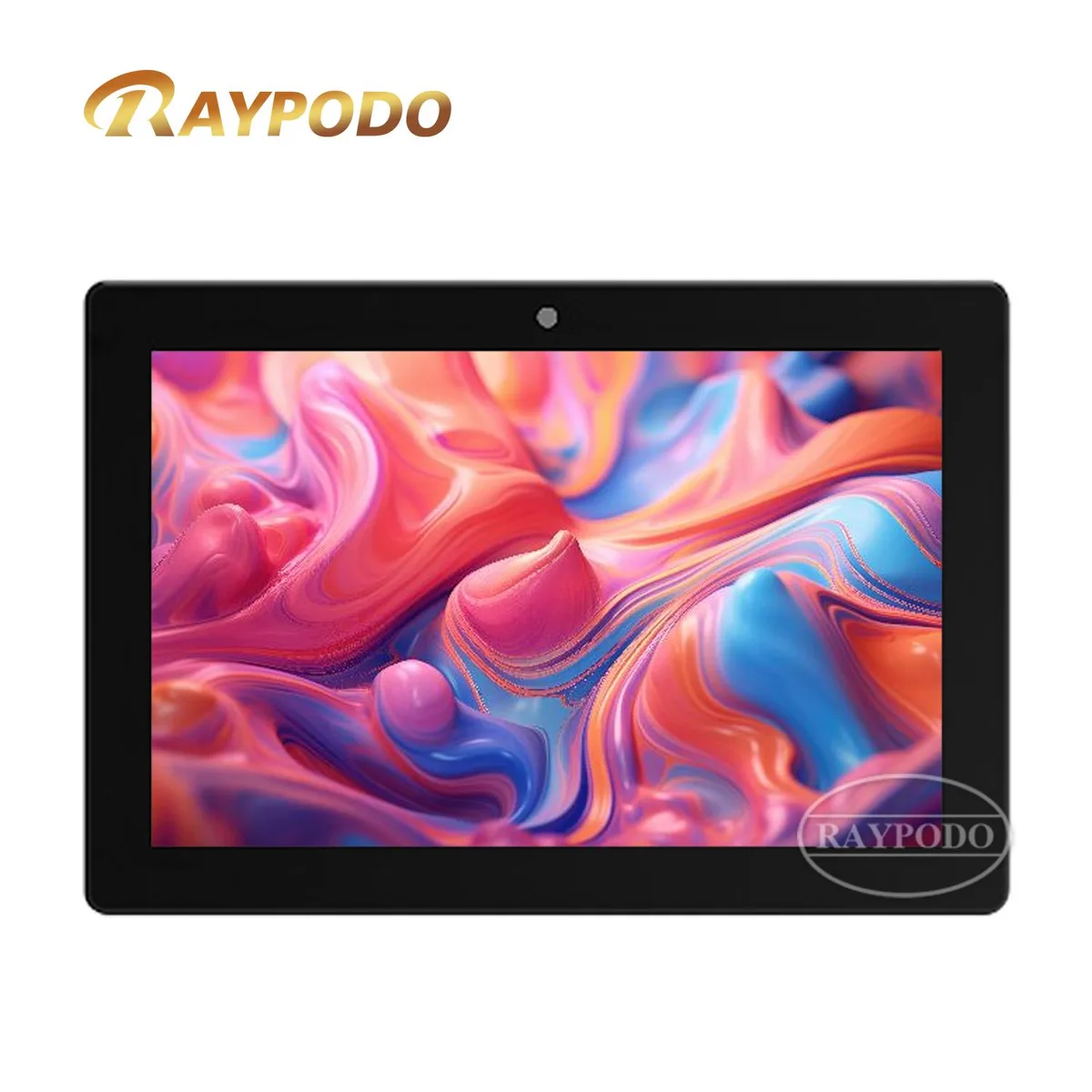

Black 10.1 inch Android commercial display with capacitive touchscreen and VESA mount

RAYPODO

RAYPODO 10.1" RK3566 2GB+16GB Android 11 Black commercial display

SKU CH-NW5W-5ZW30

A 10.1-inch Android 11 commercial display with RK3566 quad-core processor, 2GB memory, 16GB storage, 10-point capacitive touch, and PoE-powered wall-mount operation

  • Cabinet ColorBlack
  • Screen Size10.1"
  • TouchscreenYes
  • Touchscreen Type10-Point capacitive touch
  • Native Resolution1280*800
  • Aspect Ratio16:9

memory 2GB+16GB

  • 24/7 reliable operation without a battery for continuous indoor signage
  • RK3566 quad-core Cortex-A55 processor delivers smooth commercial display performance
  • POE via RJ45 enables single-cable power and 1000M Ethernet for stable wall-mounted installs
  • 10-point capacitive touchscreen on 10.1" IPS panel provides responsive multi-touch interaction
  • 2GB LPDDR4X with 16GB eMMC expandable via TF card up to 128GB for content storage

Purpose-built commercial display

The RAYPODO 10.1-inch panel runs Android 11 on an RK3566 quad-core Cortex-A55 processor with 2GB LPDDR4X memory and 16GB eMMC storage. It targets indoor digital-signage installations such as retail counters, office notice boards and library way-finding where a battery-free, wall-mounted unit is required. The 10-point capacitive touchscreen and POE-powered Ethernet simplify deployment in spaces without convenient mains sockets.

Capacity and headroom

The Mali-G52-2EE graphics drive the 1280 by 800 IPS panel at 250 cd/m² brightness, adequate for static menus, schedules and promotional loops in controlled lighting. Two gigabytes of RAM and sixteen gigabytes of internal storage handle the OS and cached media; a TF-card slot accepts up to 128GB for larger content libraries. Continuous 24/7 operation is supported, but the platform is not suited to heavy 3D rendering or multi-app multitasking beyond typical signage workloads.

Integration and mounting

A 75 by 75 mm VESA pattern allows standard bracket or arm mounting, while POE over the RJ45 port delivers both data and power through a single cable. The unit provides HDMI output for a secondary screen, a 3.5 mm audio jack, two USB ports and the TF-card slot for local media playback. No battery is included, so the display must remain connected to a POE switch or the supplied power jack at all times.

Highlights

  • 24/7 reliable operation without a battery for continuous indoor signage
  • RK3566 quad-core Cortex-A55 processor delivers smooth commercial display performance
  • POE via RJ45 enables single-cable power and 1000M Ethernet for stable wall-mounted installs
  • 10-point capacitive touchscreen on 10.1" IPS panel provides responsive multi-touch interaction
  • 2GB LPDDR4X with 16GB eMMC expandable via TF card up to 128GB for content storage

Specifications

BrandRaypodo
ModelRaypodo 10.1-inch RK3566 2GB+16GB Android 11 Black
Cabinet ColorBlack
Screen Size10.1"
TouchscreenYes
Touchscreen Type10-Point capacitive touch
Native Resolution1280*800
Aspect Ratio16:9
Brightness250cd/m2 (Min)
Panel10.1" LCD IPS panel
Built-in SpeakerYes (2*8Ω 2W)
VESA Compatible75x75mm
ProcesserRK3566 Quad-Core ARM Cortex-A55
Processer FeatureQuad-Core ARM Cortex-A55
ChipsetRK3566
Memory2GB LPDDR4X/LPDDR4
Storage16GB EMMC
GraphicsMali-G52-2EE
Operation SystemAndroid 11
Input TypeTouch, USB, TF card, RJ45, Power jack, HD-MI output, 3.5mm earphone
HDMI Port1 (output)
USB PortUSB*2
Ethernet Port1 (100M/1000M, with POE)
Audio Ports3.5mm earphone + Microphone (Optional)
Other PortsTF card (Max Support 128GB), USB*2, RJ45 with POE, Power jack
Power Supply12V/1.5A/3A
Feature10-Point touchscreen, HD-MI output, POE, 24/7 operation, Supports multiple playback modes, PTC live clock, Auto ON/OFF

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Will the RK3566 Android 11 unit run alongside my existing 1000M Ethernet switch without extra configuration?

Yes, the RJ45 port provides 1000M Ethernet and the device supports POE power over that same cable, so it integrates with a standard gigabit switch and requires no separate power adapter.

How can I verify the 10-point capacitive touchscreen and Mali-G52 graphics are working after mounting the display?

Open any Android 11 app that responds to multi-finger gestures; smooth 10-point tracking and fluid UI animation confirm the touchscreen and Mali-G52-2EE GPU are operating correctly.

Does the box include a VESA 75x75 wall bracket and a TF card, or must I buy them separately?

The unit itself has 75x75 VESA holes for mounting; a compatible bracket and a TF card up to 128GB are not included and must be purchased separately.
