Red ABS plastic battery disconnect switch with two 3/8 inch studs and rotary knob

RAYBESTOS UNBRANDED

RAYBESTOS UNBRANDED Battery Disconnect Switch 275A 6V-60V DC 3/8" Studs

SKU CH-SNZ2-WVJ1R

Battery disconnect switch rated 275A continuous, 455A intermittent and 1250A cranking at 6V-60V DC with 3/8" studs

  • TypeSafety & Disconnect Switches
  • MaterialABS

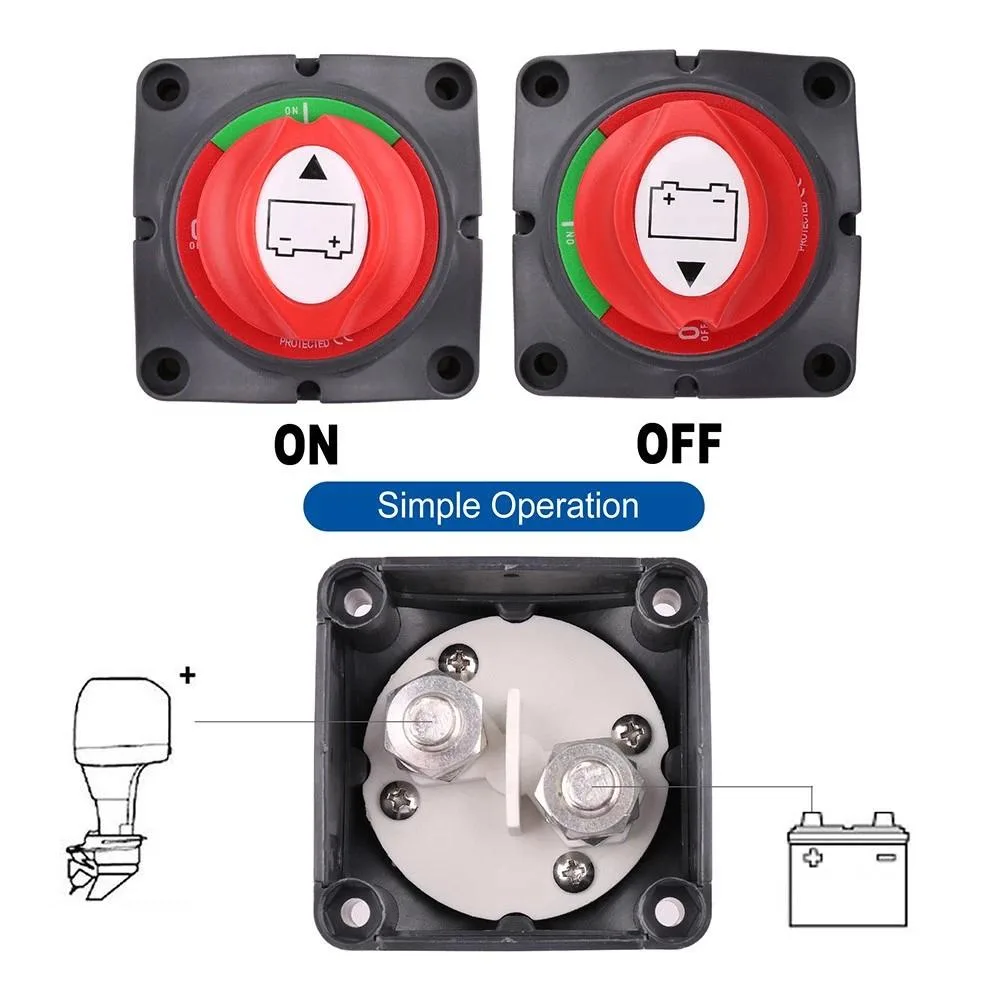

  • Cuts battery power instantly with simple on/off operation
  • Handles 275A continuous DC load for reliable isolation
  • Supports 455A intermittent current for short high-draw moments
  • Delivers 1250A cranking power to start large engines
  • Works across 6V-60V DC systems in cars, RVs, boats

Product identity

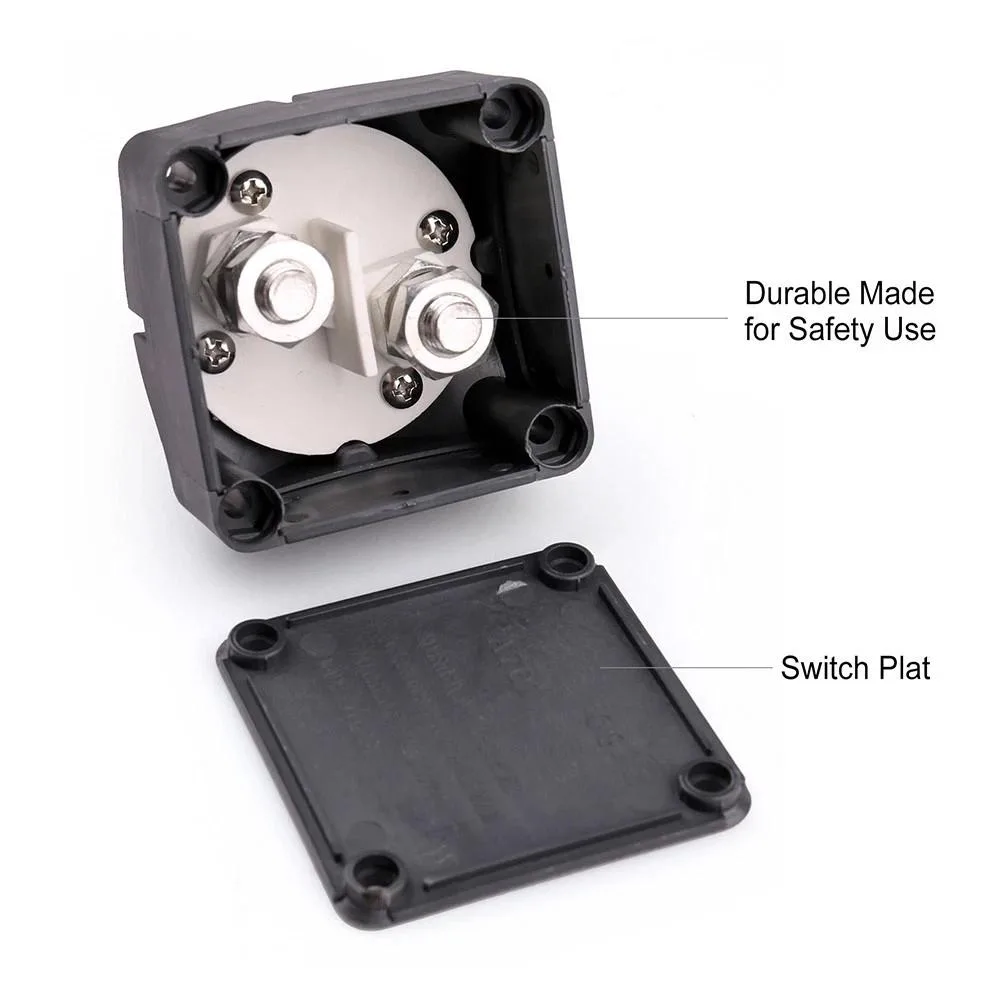

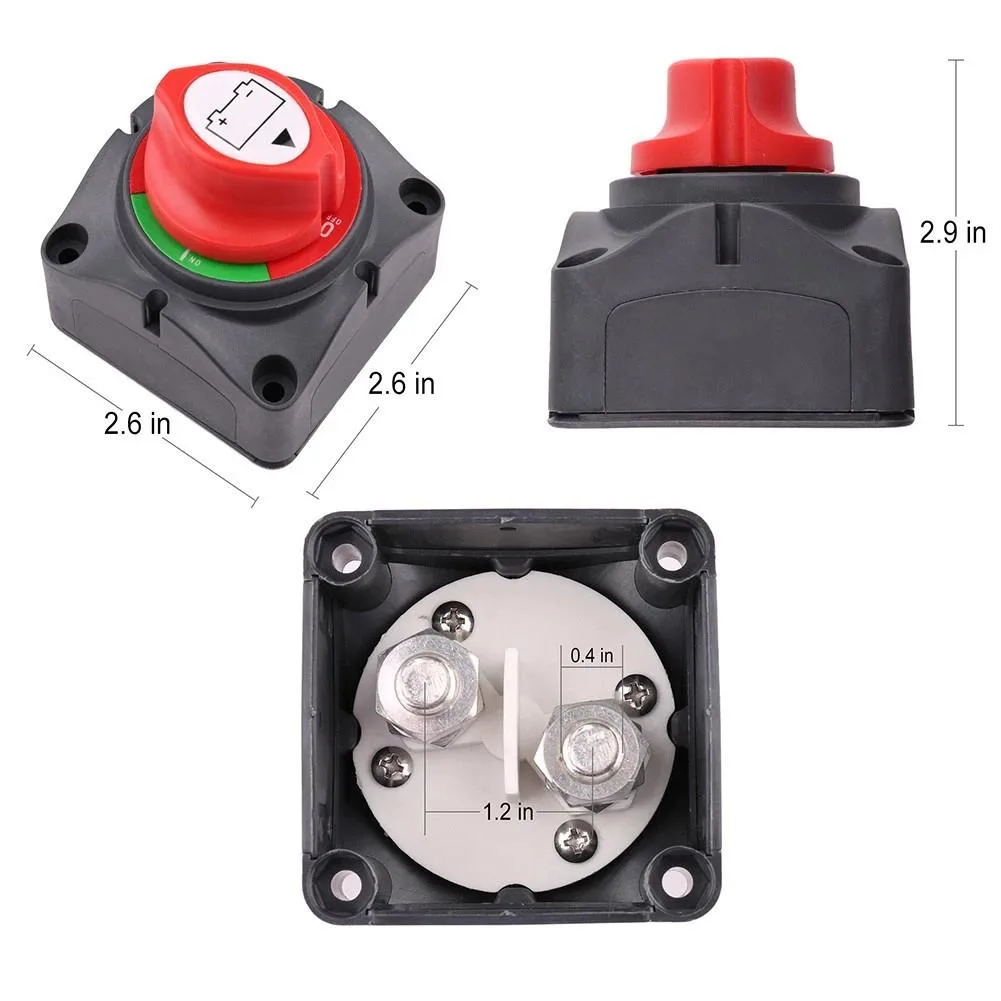

The Raybestos Unbranded battery disconnect switch provides a manual on/off isolator for 6 V to 60 V DC systems. It uses two 3/8 inch studs and an ABS housing to break the circuit when turned.

Suitable applications

It suits vehicles, RVs and boats that need a simple master cut-off for a single battery bank. Installations requiring remote solenoid control, multiple isolated circuits or a higher continuous rating should look elsewhere.

Deciding specification

The continuous rating is 275 A DC for one hour, with 455 A intermittent for five minutes and 1250 A cranking for ten seconds. Match these figures to the peak and sustained loads of the intended circuit.

Highlights

  • Cuts battery power instantly with simple on/off operation
  • Handles 275A continuous DC load for reliable isolation
  • Supports 455A intermittent current for short high-draw moments
  • Delivers 1250A cranking power to start large engines
  • Works across 6V-60V DC systems in cars, RVs, boats

Specifications

TypeSafety & Disconnect Switches
MaterialABS

Questions about this item

Will the 3/8" stud terminals need periodic tightening or replacement?

The 3/8" studs are part of the ABS housing assembly; check torque after installation and inspect for corrosion during routine battery maintenance.

Which current rating limits continuous all-day operation?

The 275A DC continuous rating for one hour is the limit for sustained use; exceeding it risks overheating the contacts.

How hot does the ABS housing get when the switch carries 275A all day?

At the rated 275A continuous load the housing will warm up; ensure ventilation around the switch and monitor temperature during extended runs.
