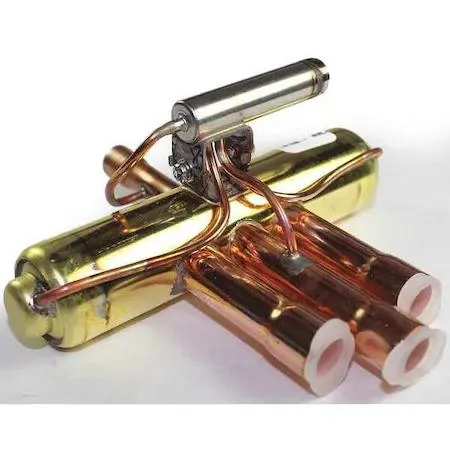

Brass four-way reversing valve with pilot valve and centred discharge tube

Ranco

Ranco V2-408060-170 four-way heat pump reversing valve

SKU CH-PKX1-QPSXY

Four-way heat-pump reversing valve with brass body, 3/8 in socket-weld discharge, pilot valve included, rated to 690 psi and 158 °F

  • Four-way valve reverses refrigerant flow for heat-pump operation
  • Brass body resists corrosion across 0–690 psi pressure range
  • Pilot valve included for direct system integration
  • Rated for R22 and R410A refrigerants in CFC, HCFC and HFC media
  • Operates up to 158 °F for demanding HVAC applications

Application and fit

The Ranco V2-408060-170 is a four-way heat pump reversing valve built for systems that use R22 or R410A refrigerant. Its brass body and centered discharge tube suit standard heat pump layouts where flow direction must be switched reliably.

Installation checks

Verify that the discharge connection is a 3/8 inch socket weld and that the suction line matches the 1/2 inch port before ordering. Confirm the system design pressure does not exceed 690 psi and that the operating temperature stays within 158 degrees F. A separate solenoid coil is required because none is included.

Sustained operation

The pilot valve is integrated and the maximum leakage rate is rated at 2 000 cc/min across the full pressure range of 0 to 690 psi. Brass construction resists corrosion during continuous cycling between heating and cooling modes. Performance remains stable as long as system pressure and temperature stay inside the published limits.

Highlights

  • Four-way valve reverses refrigerant flow for heat-pump operation
  • Brass body resists corrosion across 0–690 psi pressure range
  • Pilot valve included for direct system integration
  • Rated for R22 and R410A refrigerants in CFC, HCFC and HFC media
  • Operates up to 158 °F for demanding HVAC applications

Specifications

BrandRANCO

Questions about this item

Does the Ranco V2-408060-170 four-way heat pump reversing valve come with a solenoid coil, or must it be purchased separately?

The valve includes a pilot valve but the solenoid coil is not included and must be bought separately.

Which refrigerant types is the Ranco V2-408060-170 rated for, and what are the discharge connection sizes?

It is rated for R22 and R410A refrigerants with a 1/2 inch suction connection and a 3/8 inch discharge socket-weld connection.

What does the 690 psi maximum operating pressure mean when the valve is installed in a heat-pump system?

The valve can safely handle system pressures up to 690 psi, covering typical high-side pressures encountered in R22 or R410A heat-pump operation.
