Qnap

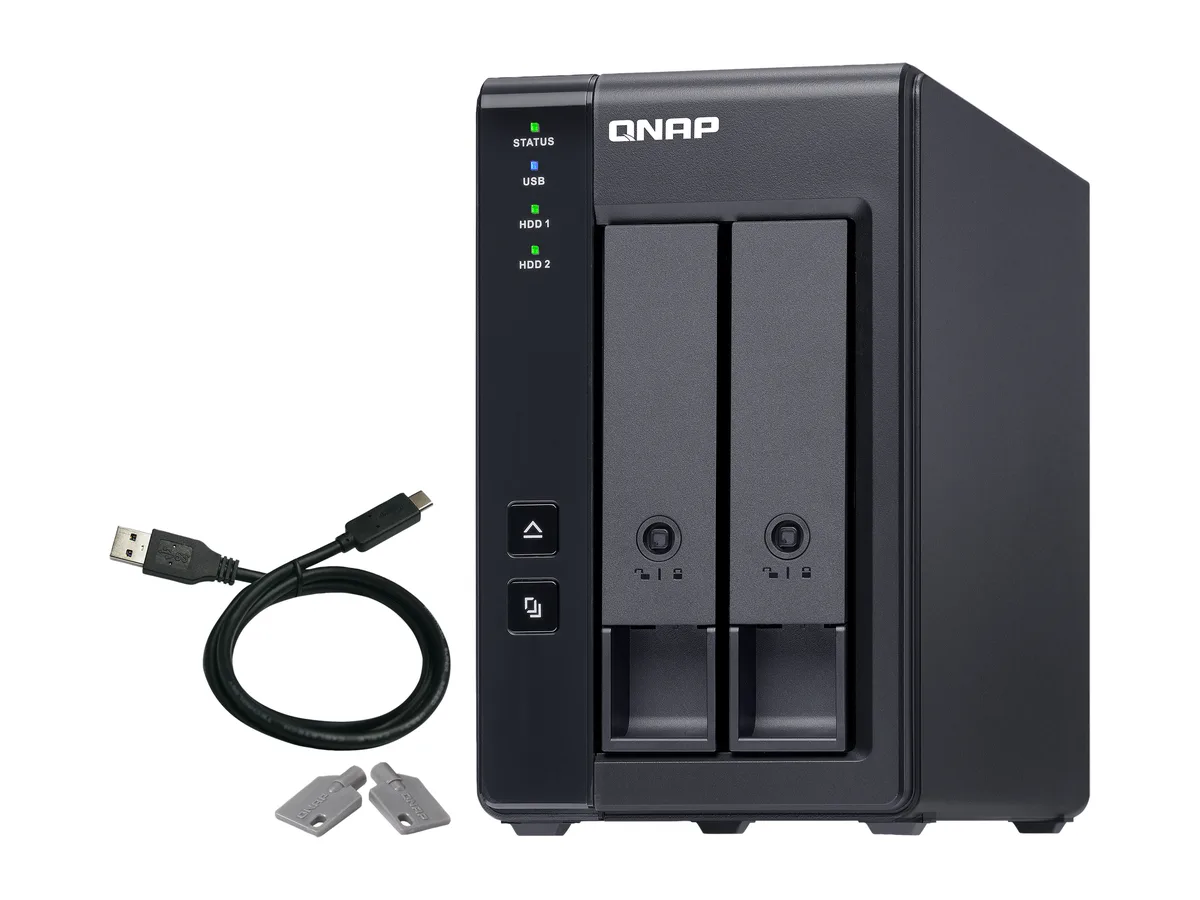

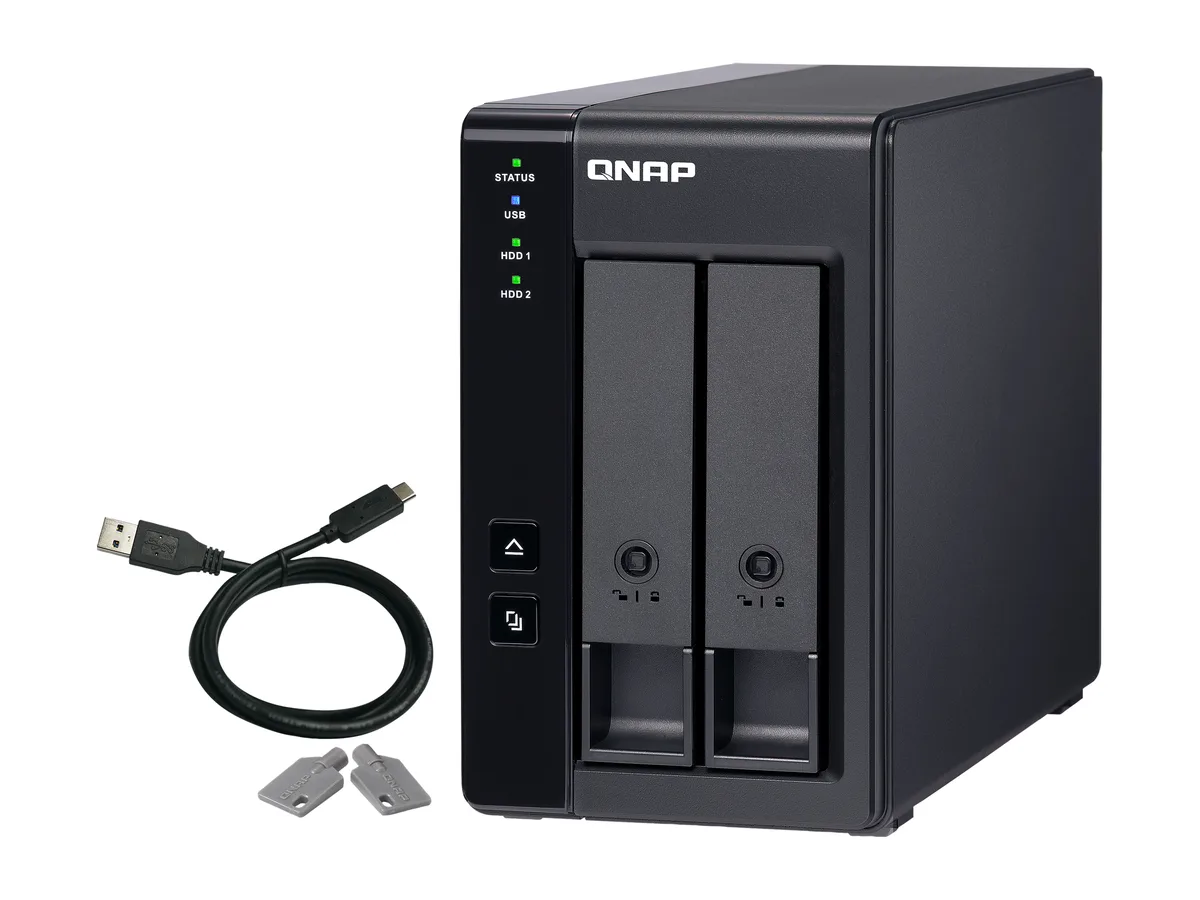

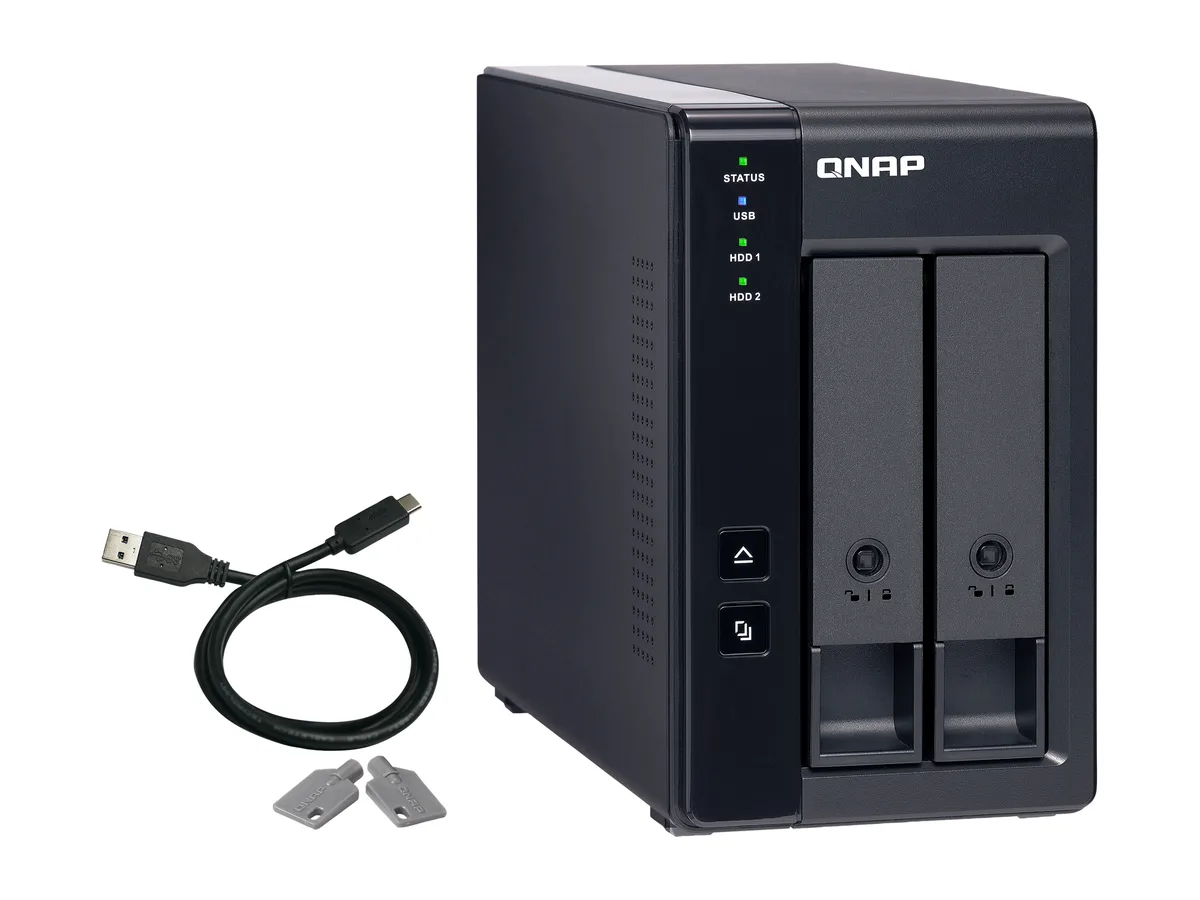

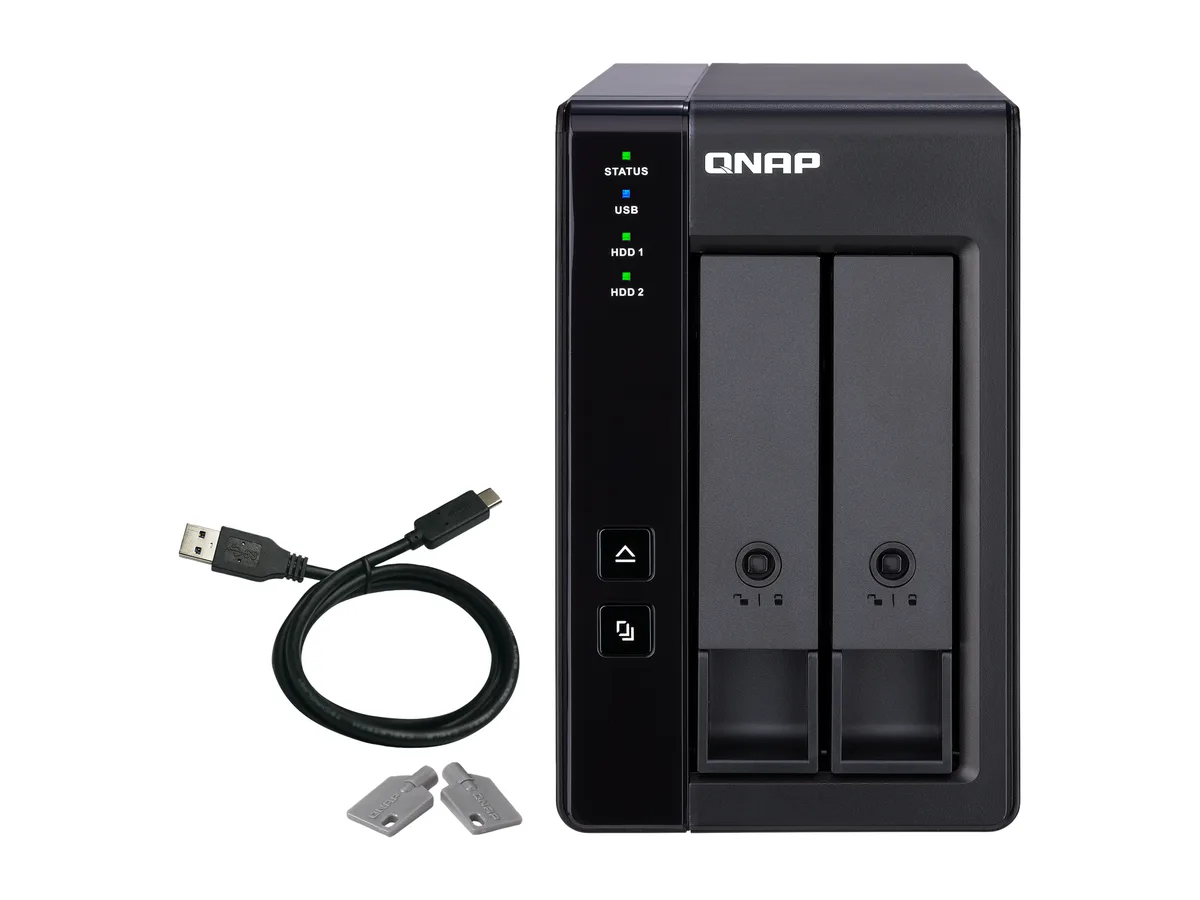

Qnap TR-002-US 2-Bay USB 3.2 Gen 2 Type-C Desktop NAS
A two-bay desktop NAS with hardware RAID connects via USB 3.2 Gen 2 Type-C to expand storage up to 36 TB for backup and media streaming
- TypeDesktop NAS
- Ports1 x USB 3.2 Gen 2 Type-C
- Port USB1 x Type-C USB 3.1 Gen 2
- HDD Interface2 x SATA (2 x Bay)
- Form Factor2-Bay
- ProcessorMicro processor with hardware RAID
- Expand NAS capacity via 2-bay USB 3.2 Gen 2 Type-C
- Hardware RAID handled by on-board micro processor
- Direct-attached storage for PC or QNAP NAS
- Supports 3.5" and 2.5" SATA drives up to 36 TB
- Low power draw 2.98 W in hibernation, 10.15 W active
Two-bay USB 3.2 Gen 2 Type-C desktop NAS
The Qnap TR-002-US is a diskless two-bay desktop NAS that connects to a PC or compatible QNAP NAS through a single USB 3.2 Gen 2 Type-C port. It provides direct-attached storage with hardware RAID for users who want to expand capacity or back up and stream media from a personal cloud without deploying a full network appliance.
Hardware RAID with 36 TB maximum capacity
A built-in micro processor handles RAID 0, RAID 1, JBOD and single-disk modes independently of the host system, so the enclosure presents a single protected volume regardless of the operating system. The two 3.5-inch or 2.5-inch SATA bays accept HDDs or SSDs up to a combined 36 TB, giving a clear capacity ceiling for buyers planning their storage layout.
External 36 W adapter, 10.15 W typical access draw
Power comes from an external 36 W adapter rated for 100-240 V, and the unit consumes about 10.15 W during normal operation with both drives installed. In drive hibernation the draw falls to roughly 2.98 W, and the specified operating temperature range is 0 °C to 40 °C with humidity tolerance of 5 % to 95 % non-condensing.
Highlights
- Expand NAS capacity via 2-bay USB 3.2 Gen 2 Type-C
- Hardware RAID handled by on-board micro processor
- Direct-attached storage for PC or QNAP NAS
- Supports 3.5" and 2.5" SATA drives up to 36 TB
- Low power draw 2.98 W in hibernation, 10.15 W active
Specifications
| Brand | QNAP |
|---|---|
| Model | TR-002-US |
| Type | Desktop NAS |
| Ports | 1 x USB 3.2 Gen 2 Type-C |
| Port USB | 1 x Type-C USB 3.1 Gen 2 |
| HDD Interface | 2 x SATA (2 x Bay) |
| Form Factor | 2-Bay |
| Processor | Micro processor with hardware RAID |
| Included HDD Capacity | Diskless System |
| Max Capacity | 36TB |
| Drive Compatibility | 3.5" SATA 6Gb/s, 3Gb/s HDD 2.5" SATA 6Gb/s, 3Gb/s HDD 2.5" SATA 6Gb/s, 3Gb/s SSD |
| Power | Power Supply Unit: External Power Adapter, 36W, 100-240V Power Consumption: HDD Sleep Mode: 2.98W Power Consumption: Operating Mode, Typical: 10.15W With drives fully populated |
| Power Consumption | 10.15 W (Access) 2.98 W (HDD Hibernation) |
| Temperature | 0°C - 40 °C |
| Humidity | 5-95% R.H |
| Features | The TR-002 USB 3.1 Gen. 2 RAID expansion enclosure allows you to expand the capacity of your QNAP NAS and PC. The TR-002 can also be utilized as a DAS (Direct-attached Storage) device, allowing you to directly access its content just by connecting it via USB. The TR-002 features two 3.5-inch SATA drive bays with USB 3.1 Gen. 2 Type-C connectivity to bring you a highly-reliable and secure storage capacity expansion solution. |
| Usage | Backup & stream media through personal cloud |

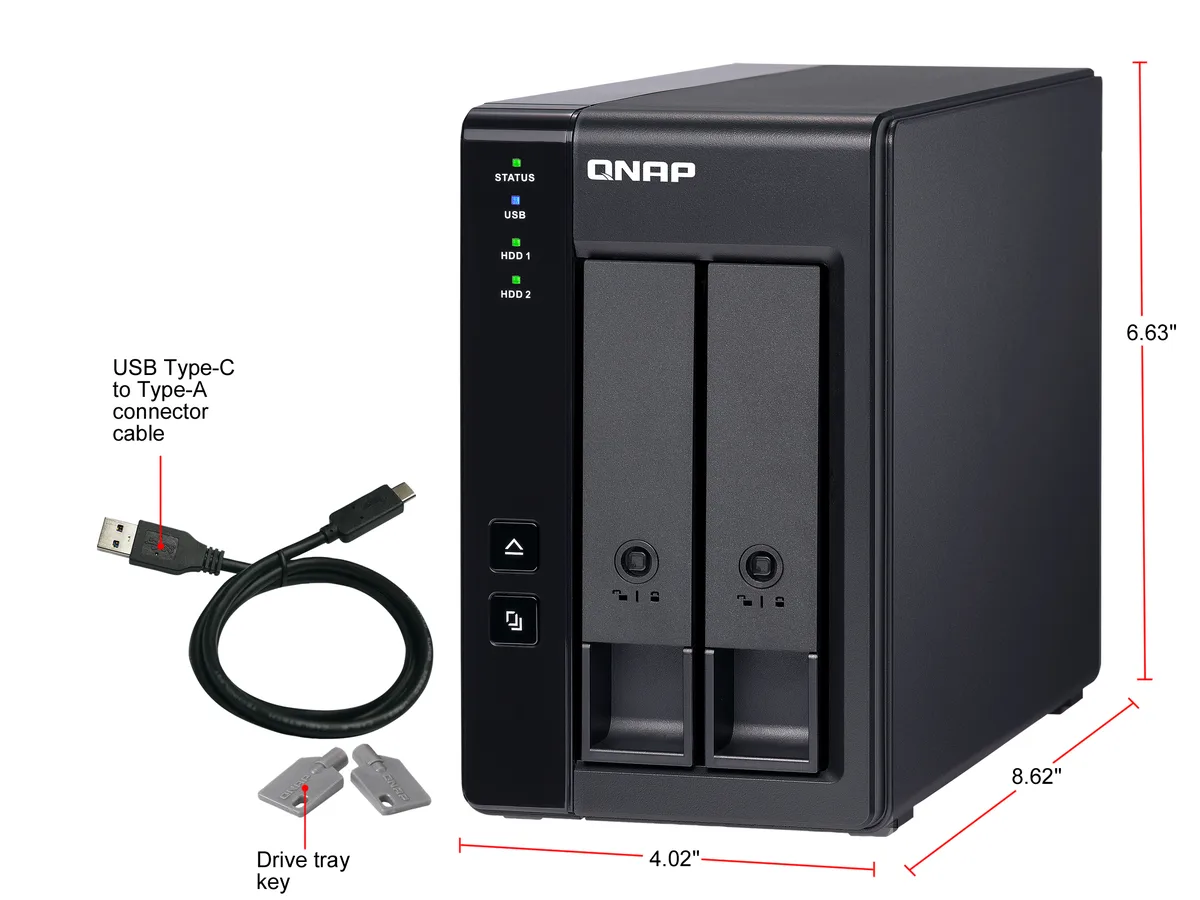

| Dimensions | 6.63" x 4.02" x 8.62" |
| Weight | 3.02 lbs. |
| Package Contents | TR-002 external RAID enclosure 1 x AC power adapter 1 x Power Cord 1 x USB Type-C to Type-A connector cable 2 x Drive tray keys 1 x USB cable clip 6 x Screws for 2.5-inch drives 8 x Screws for 3.5-inch drives Quick Installation Guide (QIG) |
| Shipping weight | 2.22 kg |
| Package size | 267 × 241 × 203 mm |
Questions about this item
What does the 36 TB maximum capacity mean for actual storage space once the drives are installed and RAID is configured?
Two SATA drives can be installed up to a combined raw capacity of 36 TB; the usable space depends on the RAID mode chosen, with RAID 1 mirroring halving the available capacity.
The box has a USB 3.2 Gen 2 Type-C port — what transfer ceiling does that impose in daily use?
The USB 3.2 Gen 2 Type-C link tops out at 10 Gb/s, so real-world throughput will be limited by that bus speed rather than the internal SATA drives.
What physical drives and mounting hardware are needed to populate the two bays?
Each bay takes a 3.5-inch or 2.5-inch SATA drive; the package includes eight screws for 3.5-inch drives and six screws for 2.5-inch drives plus drive-tray keys for securing them.
