Silver 1U half-rack switch with twelve fiber ports

Qnap

Qnap QSW-M7308R-4X-US 12-port 25/100GbE network switch

SKU CH-65AJ-73E6J MPN QSW-M7308R-4X-US

A 12-port rack-mountable switch with four 100GbE QSFP28 and eight 25GbE SFP28 fiber ports, managed via QNAP Switch System for Layer 2 control

  • 12-port design with four 100GbE QSFP28 and eight 25GbE SFP28 fiber ports
  • Layer 2 management including LACP, VLAN, ACL and LLDP for bandwidth control and security
  • Centralised QNAP Switch System dashboard simplifies port monitoring and configuration
  • 1U half-rackmount form factor fits dense server-room deployments
  • 100 W power consumption supports high-throughput 25/100GbE operation

12-port 25/100GbE fiber switch

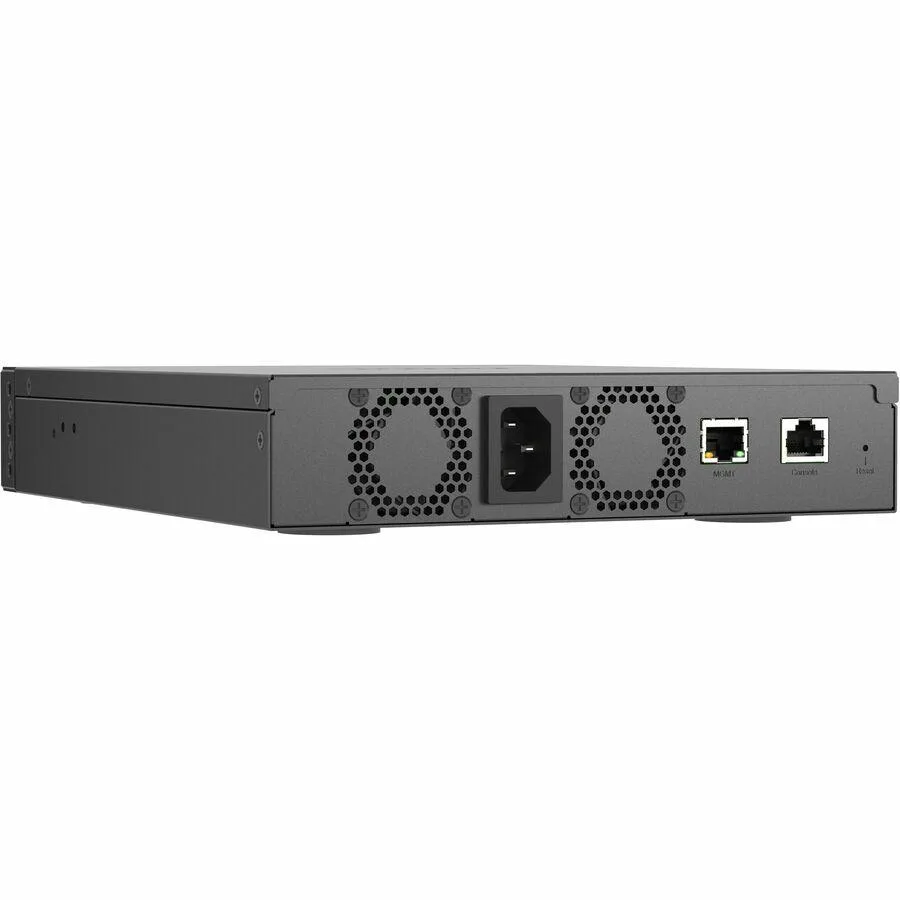

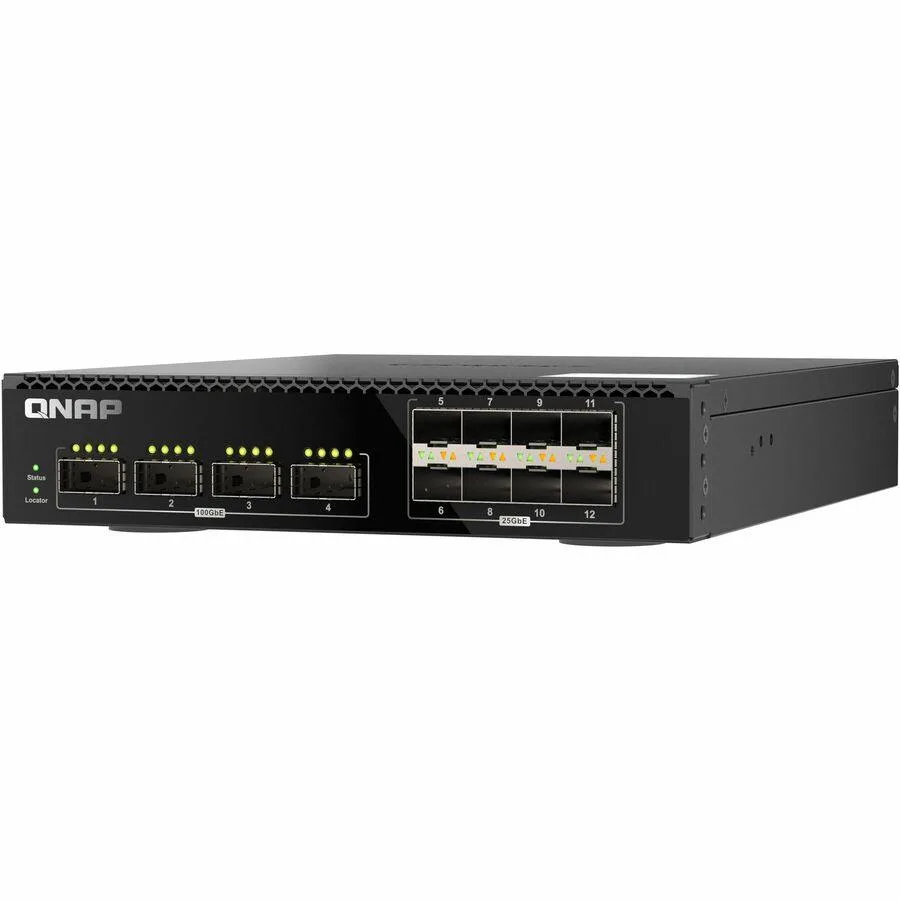

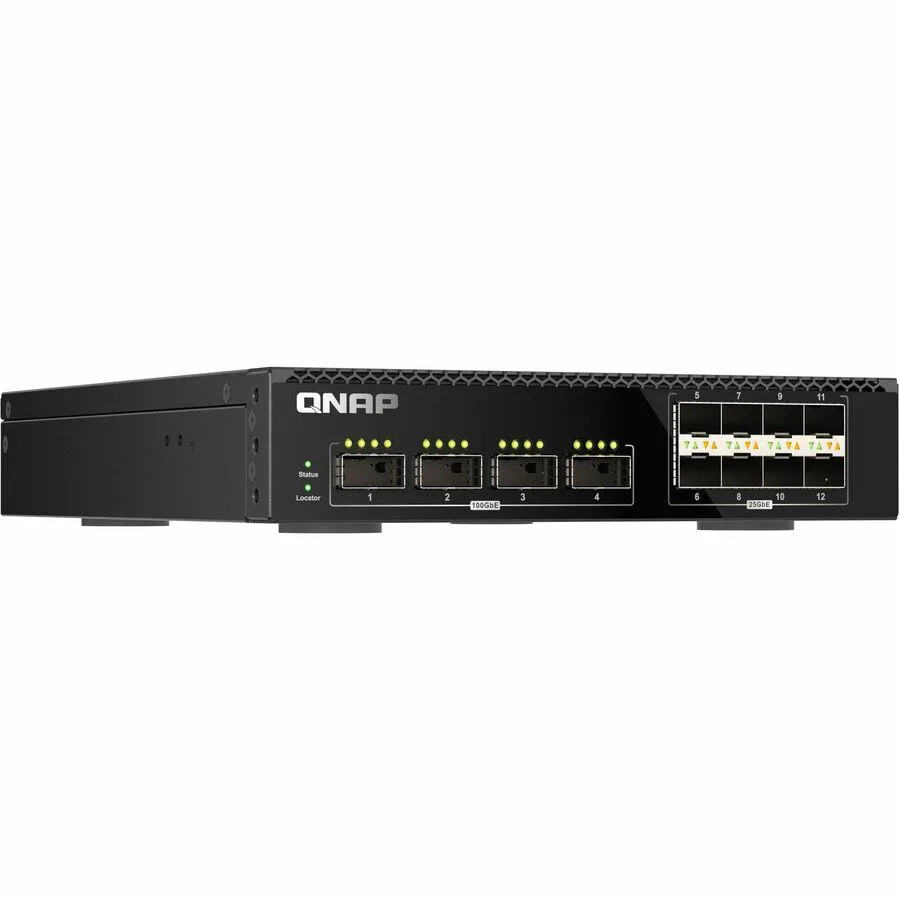

The Qnap QSW-M7308R-4X-US is a half-width rack-mountable switch with twelve fiber ports. Four ports run at 100GbE using QSFP28 optics and eight ports run at 25GbE using SFP28 optics. It targets data-centre racks that need ultra-high-speed aggregation in a single 1U appliance.

Layer 2 managed upgrade for unmanaged uplinks

This switch replaces unmanaged or Layer 2-limited uplinks when traffic demands exceed their port speeds or feature sets. The jump is worth it when you need LACP link aggregation, VLAN segmentation, ACL traffic filtering or LLDP neighbour discovery across 25GbE and 100GbE links.

Sustained load with 100 W power envelope

Under continuous full-port utilisation the unit draws up to 100 W while the QNAP Switch System dashboard provides real-time port statistics and health monitoring. Layer 2 features such as LACP and ACL operate in hardware so throughput remains consistent without CPU bottlenecks during prolonged transfers.

Highlights

  • 12-port design with four 100GbE QSFP28 and eight 25GbE SFP28 fiber ports
  • Layer 2 management including LACP, VLAN, ACL and LLDP for bandwidth control and security
  • Centralised QNAP Switch System dashboard simplifies port monitoring and configuration
  • 1U half-rackmount form factor fits dense server-room deployments
  • 100 W power consumption supports high-throughput 25/100GbE operation

Specifications

BrandQnap
Shipping weight2.65 kg
Package size343 × 330 × 108 mm

Questions about this item

Does the half-rack chassis include brackets for a standard 1U rack slot?

The unit is a 1U rack-mountable switch designed for half-width rack installation with the supplied mounting hardware.

What is the correct order for inserting the eight SFP28 and four QSFP28 transceivers during first setup?

Power off the switch, insert each transceiver until it clicks, then power on and configure ports in QSS before connecting cables.

When should the internal fan module be checked or replaced to maintain airflow?

Monitor the QSS dashboard for temperature alerts; clean dust from vents every six months and replace the fan if noise or speed warnings appear.
