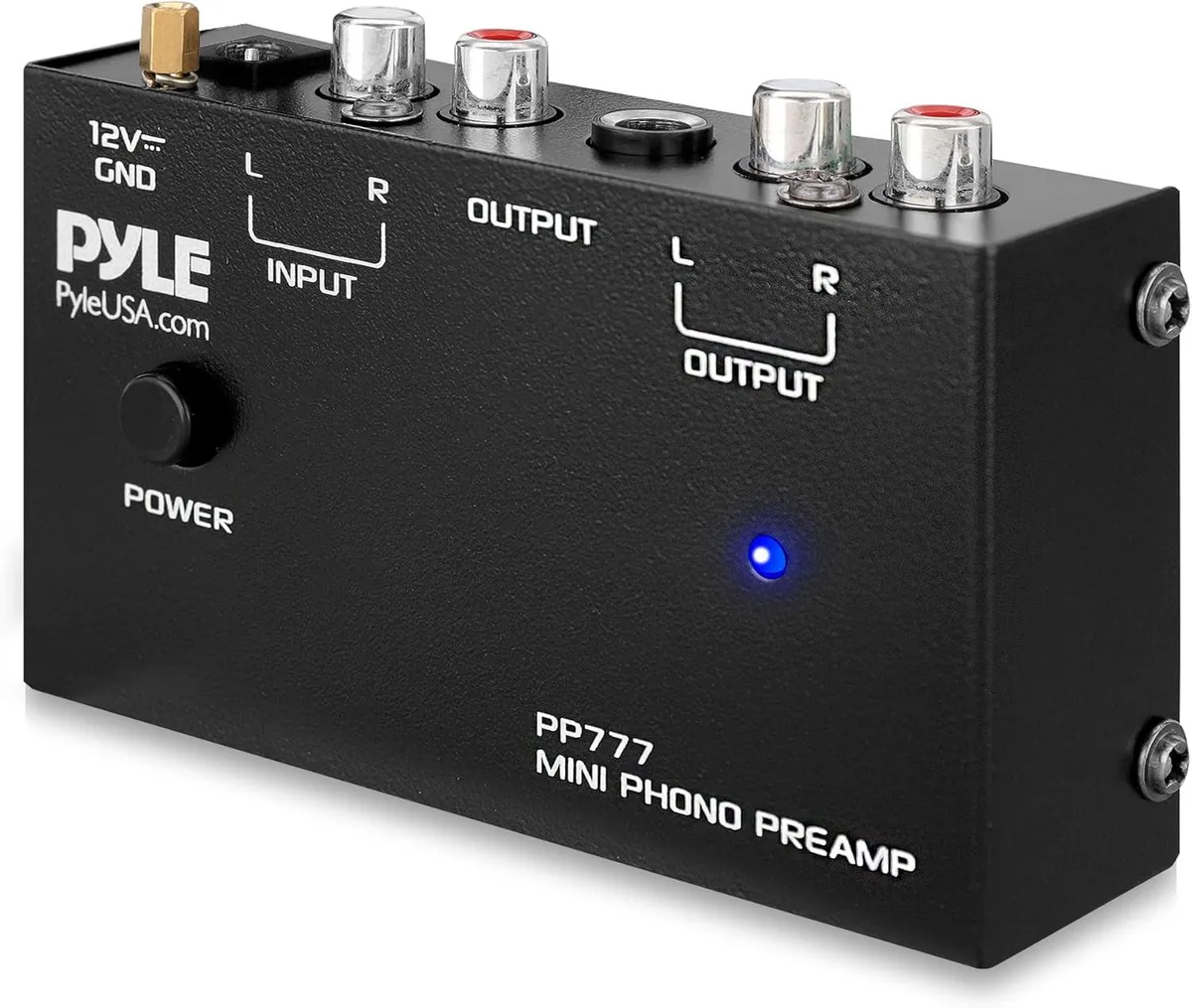

Compact black phono preamp with RCA and 1/4" outputs

Pyle

Pyle PP777 Phono Turntable Preamp Receiver

SKU CH-6CGD-VY5NF

Compact phono preamp converts turntable signals to line level with ultra-low noise and RCA plus 1/4" outputs

  • TypePhono Turntable Preamp
  • ColorBlack
  • ChannelsSingle Channel (Stereo Input and Output)
  • Other SpecificationsInput Sensitivity: 3mV at 50K Ohms (Phono) Output Voltage: 2
  • Frequency Response20Hz ~ 20kHz ±2dB
  • AudioSupports phono to line level conversion
  • Converts phono signals to line-level for clear playback
  • RCA input plus RCA and 1/4" output for flexible connections
  • Ultra-low noise circuitry preserves audio detail
  • 20 Hz to 20 kHz ±2 dB frequency response covers full audible range
  • Compact 3.54" x 2.13" x 1.02" design fits any setup

Compact phono preamp for turntables

The Pyle PP777 converts phono signals from a turntable into line-level audio with ultra-low noise circuitry. It accepts a single stereo RCA input at 3mV sensitivity and 50K ohms impedance, then delivers up to 2V peak-to-peak output at 10K ohms. Frequency response spans 20Hz to 20kHz within ±2dB, making it suitable for vinyl enthusiasts who need a clean gain stage.

Black metal chassis with versatile outputs

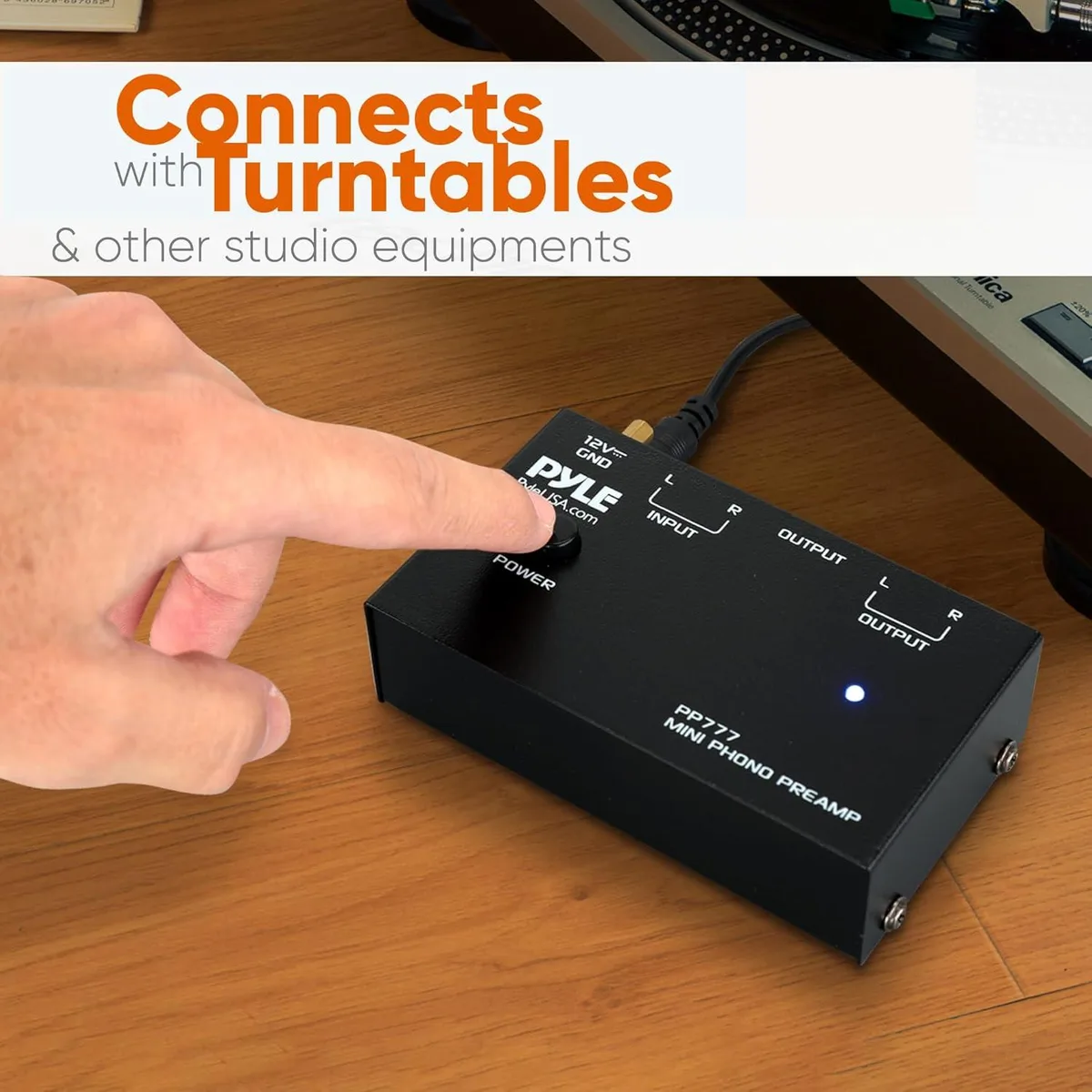

The unit measures 3.54 by 2.13 by 1.02 inches and weighs very little, so it fits on a crowded shelf or beside a mixer without crowding other gear. A front-panel power switch controls the included 12V DC adapter, while rear connectors provide both RCA and 1/4-inch jack outputs for direct connection to amplifiers, powered speakers or audio interfaces. Magnetic pickups are supported by the internal circuitry.

Replaces built-in phono stages on modern amps

Many current receivers omit a dedicated phono input, forcing vinyl owners to add external gain. This preamp fills that gap without the cost of a full receiver upgrade. It also serves studio users who need a portable line-level converter for magnetic cartridges. Buyers who require multiple phono channels, balanced XLR outputs or a moving-coil input stage will need a different solution.

Highlights

  • Converts phono signals to line-level for clear playback
  • RCA input plus RCA and 1/4" output for flexible connections
  • Ultra-low noise circuitry preserves audio detail
  • 20 Hz to 20 kHz ±2 dB frequency response covers full audible range
  • Compact 3.54" x 2.13" x 1.02" design fits any setup

Specifications

BrandPyle
ModelPP777
Part NumberPP777
TypePhono Turntable Preamp
ColorBlack
ChannelsSingle Channel (Stereo Input and Output)
Other SpecificationsInput Sensitivity: 3mV at 50K Ohms (Phono)
Output Voltage: 2V max (P-P) at 10K Ohms
Frequency Response20Hz ~ 20kHz ±2dB
AudioSupports phono to line level conversion
InputRCA (Phono)
OutputRCA and 1/4” Jack
Pre-Amp OutSingle Sub
Power SupplyDC 12V adapter (included)
ConsumptionMinimal
FeaturesConverts phono signals to line-level signals
State-of-the-art low-noise operation
Compact and lightweight design
Dimensions3.54" x 2.13" x 1.02"

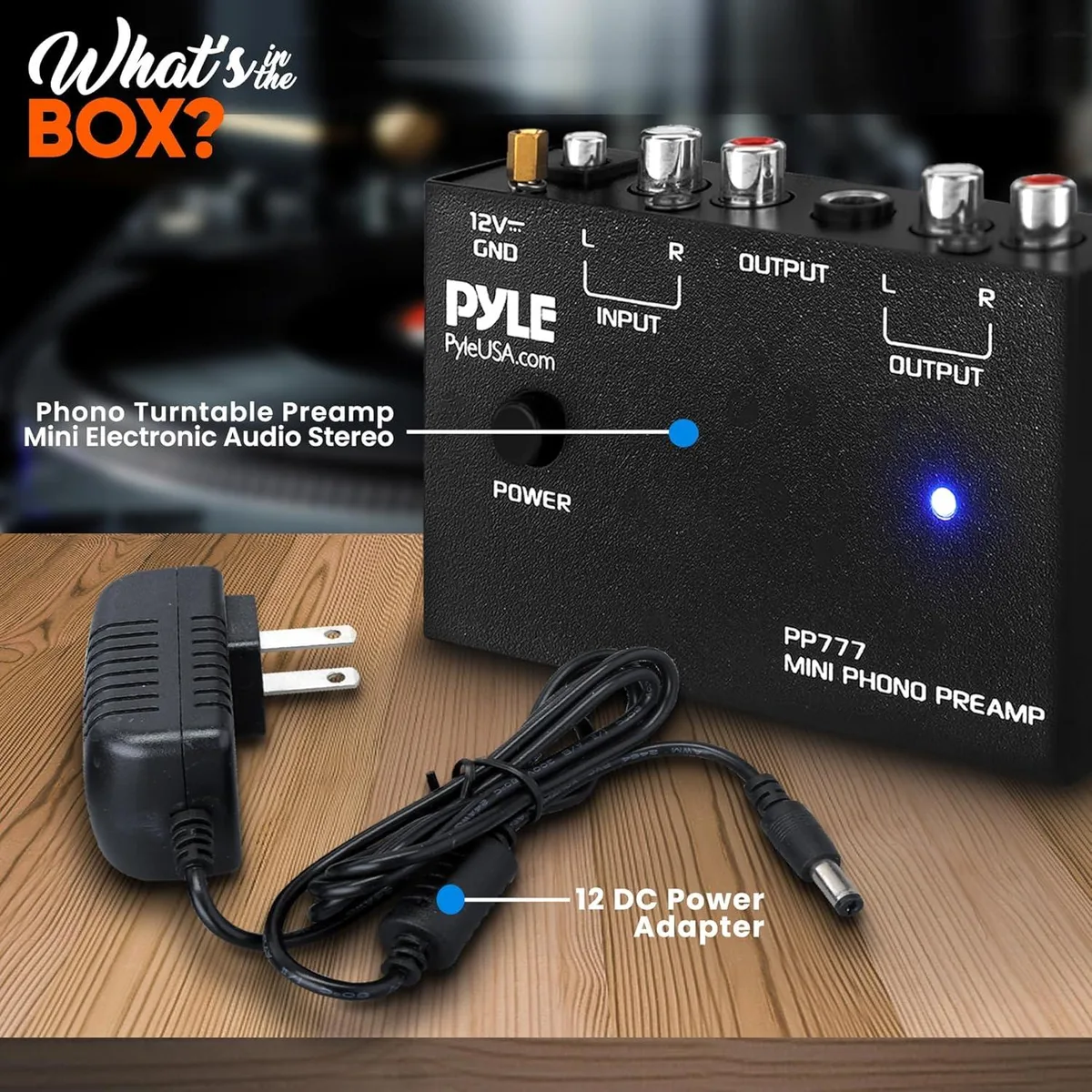

Package ContentsPhono Turntable Preamp
12V DC Adapter

Questions about this item

What is the frequency response range of the PP777 preamp?

The frequency response is 20Hz to 20kHz with a tolerance of ±2dB.

What are the dimensions of the PP777 preamp?

The unit measures 3.54 inches wide, 2.13 inches deep, and 1.02 inches high.

How is the PP777 preamp powered and connected?

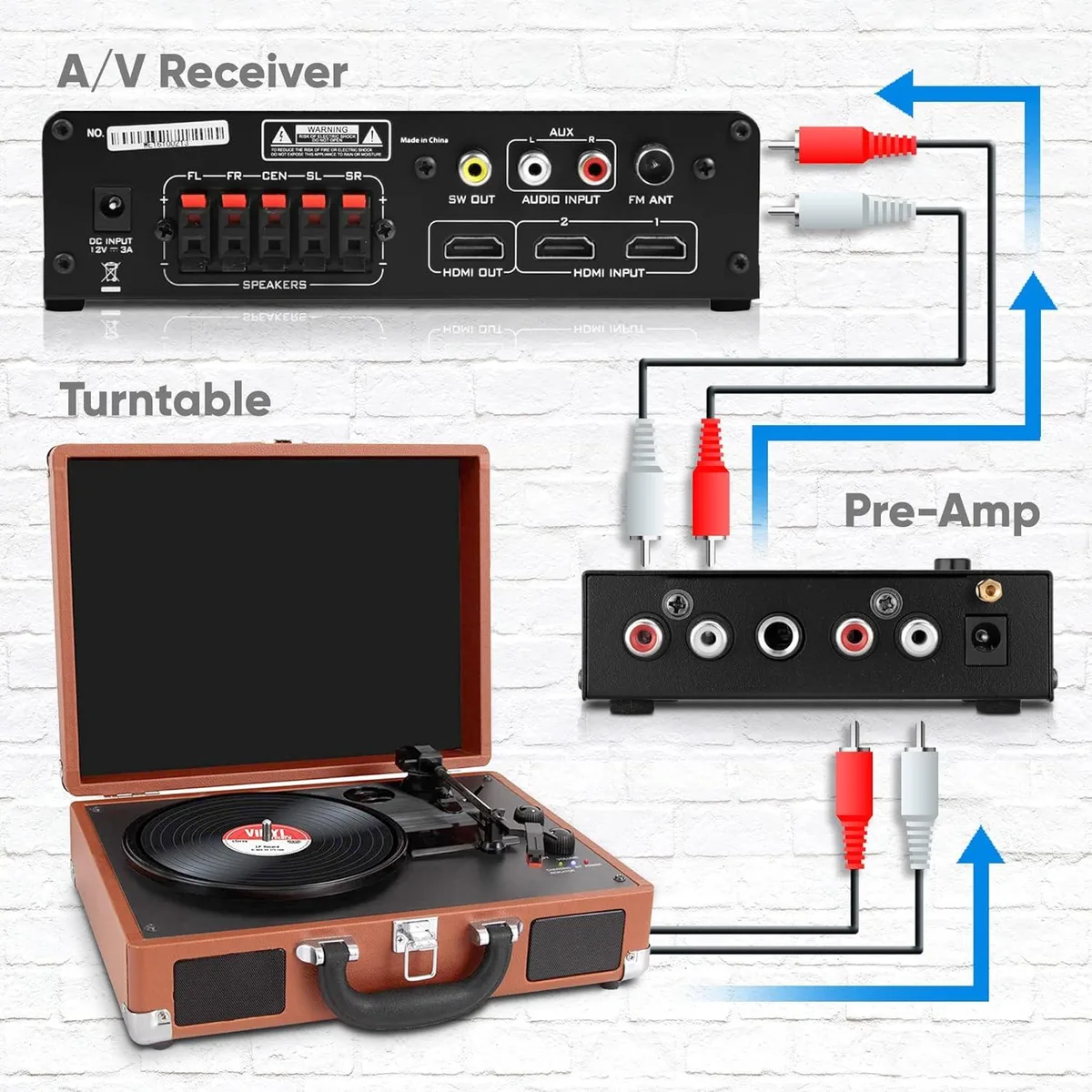

It uses the included 12V DC adapter; connect the turntable to the RCA input and the amplifier to the RCA or 1/4" output.
