Black half-DIN car equalizer with rotary controls and red green illumination

Pyle

Pyle PLXREQ520P 5-Band Parametric Equalizer Half-DIN car electronics accessory

SKU CH-JRZF-77BF7 MPN PLXREQ520P

A half-DIN parametric equalizer with five adjustable bands, subwoofer gain control at 60Hz or 90Hz, and 5V RMS pre-amp outputs for car audio systems

  • FeaturesSubwoofer gain control with selectable 60Hz/90Hz frequency R
  • Height1.10
  • Width4.1 inches
  • Length7 inches
  • WeightApproximately 1.2 lbs
  • Adjustable Low PassYes
  • Precise tone shaping with 5-band parametric EQ from 45Hz to 20kHz
  • Subwoofer gain control selectable at 60Hz or 90Hz for tailored bass
  • 5V RMS pre-amp output at 0.05% THD delivers clean signal strength
  • RCA auxiliary inputs connect MP3, DVD, or phone sources directly
  • Compact half-DIN chassis with mounting hardware fits tight dashboard spaces

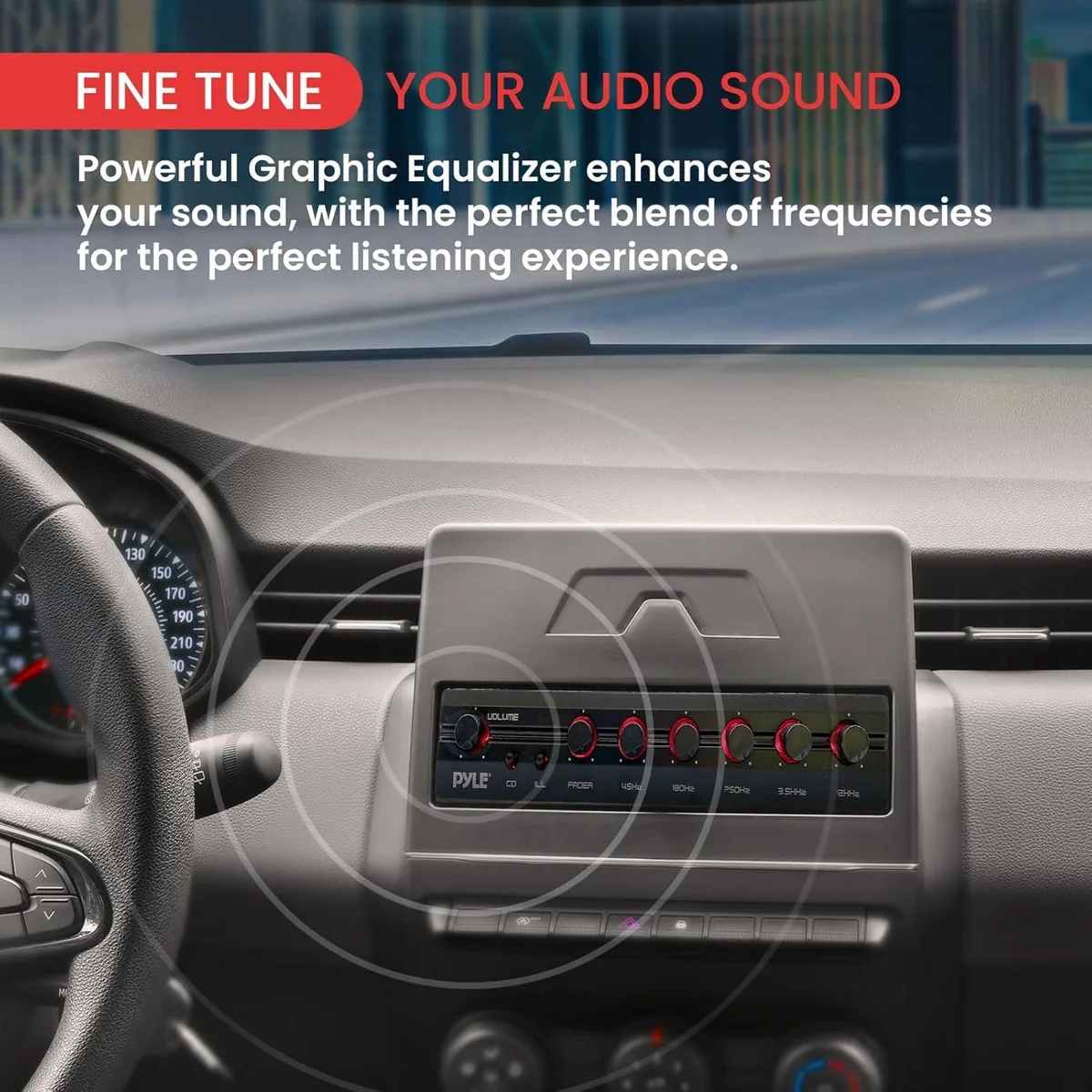

What this equaliser does

The Pyle PLXREQ520P is a 5-band parametric equaliser built for car audio systems. Its half-DIN chassis fits tight dash openings while adding RCA auxiliary inputs for phones, MP3 players or DVD sources. Adjustable bass, midrange and treble bands plus a dedicated subwoofer gain control let the installer shape the sound stage precisely. Red or green illumination matches the cabin lighting.

The spec that decides fit

The unit requires a half-DIN slot measuring 1.10 inches tall by 4.1 inches wide and 7 inches deep. Mounting brackets, screws and a fused power cable are included for a standard 12 V installation. If the dash opening is single-DIN or double-DIN this equaliser will not mount without an adapter kit.

Capacity and headroom

Five parametric bands cover 45 Hz to 20 kHz with ±12 dB range, while the subwoofer gain switch selects 60 Hz or 90 Hz crossover points. The pre-amp outputs deliver 5 V RMS at 0.05 % THD, giving clean signal to amplifiers. Systems needing more than five bands, digital processing or wireless streaming will require a different processor.

Highlights

  • Precise tone shaping with 5-band parametric EQ from 45Hz to 20kHz
  • Subwoofer gain control selectable at 60Hz or 90Hz for tailored bass
  • 5V RMS pre-amp output at 0.05% THD delivers clean signal strength
  • RCA auxiliary inputs connect MP3, DVD, or phone sources directly
  • Compact half-DIN chassis with mounting hardware fits tight dashboard spaces

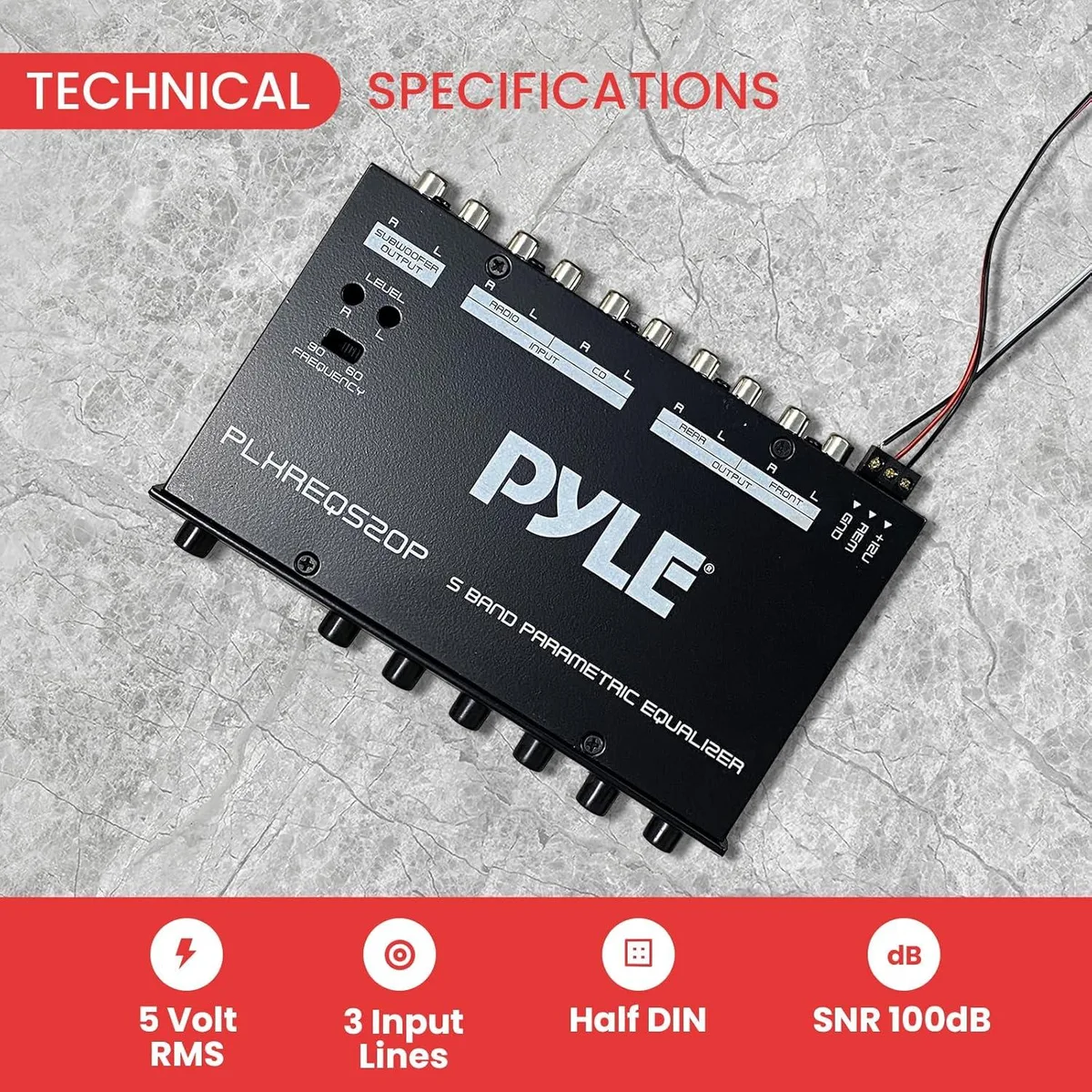

Specifications

BrandPyl
ModelPLXREQ520P
FeaturesSubwoofer gain control with selectable 60Hz/90Hz frequency
RCA auxiliary inputs for MP3, DVD, and phone connectivity
5V RMS pre-amp output for robust sound quality
Adjustable frequencies for bass, midrange, and treble (-12dB to +12dB)
Compact half-DIN size for easy installation
Red and green light illumination selector
Height1.10
Width4.1 inches
Length7 inches
WeightApproximately 1.2 lbs
Adjustable Low PassYes
Adjustable Parametric Bass EQYes
CablePower cable with 1A fuse included
ChannelsStereo
ColorBlack
CompatibilityCompatible with car audio systems and other setups with RCA connectivity
Frequency Response10Hz to 50kHz
Hardware IncludedMounting brackets, screws, and power cable
Head Unit SizeHalf-DIN
InputsRCA auxiliary inputs
OutputsRCA pre-amp outputs
Power5V RMS @ 0.05% THD
RangeFrequency adjustment range: -12dB to +12dB
Size/Dimensions7'' x 4.1'' x 1.10''
SNR100dB
THD0.05%
Vehicle Manufacturer CompatibilityUniversal
Voltage11V to 15V

Questions about this item

How does the 5V RMS pre-amp output affect real-world sound quality?

The 5V RMS pre-amp output delivers a strong, clean signal to your amplifiers with only 0.05% THD, reducing noise and allowing your amps to produce louder, clearer audio without distortion.

What do the RCA connections actually limit in a car audio system?

RCA auxiliary inputs and pre-amp outputs restrict you to line-level signals, so you must connect source units and amplifiers that use RCA cables rather than speaker-level or digital connections.

What dashboard space and hardware are needed to install this half-DIN equalizer?

It requires a half-DIN opening measuring about 1.10 inches tall by 4.1 inches wide by 7 inches deep, and the included mounting brackets and screws secure it in place.
