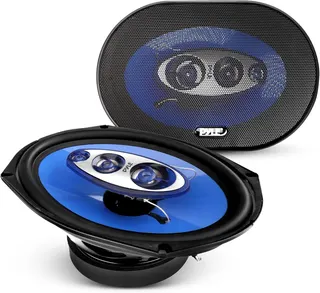

Black 6x9 quadriaxial speaker with polypropylene cone and dual piezo tweeters

Pyle

Pyle PL714BL 6x9 4-Way Quadriaxial Car Speaker 400W Peak

SKU CH-XMH1-BVNPX MPN PL714BL

A 6x9 quadriaxial speaker handles 400W peak and 200W RMS across 40Hz–22kHz with 90dB sensitivity

  • Type4-Way Quadriaxial Car Speakers
  • Speaker Size6x9 inches
  • Vehicle TypeUniversal compatibility with cars, SUVs, trucks, and boats
  • ColorBlack
  • Woofer MaterialPolypropylene Cone
  • Surround MaterialRubber Surround
  • Four-way quadriaxial design separates frequencies for clearer sound
  • 400 W peak power handles loud passages without distortion
  • 90 dB sensitivity produces strong volume from modest amplifier power
  • Frequency response 40 Hz – 22 kHz covers deep bass to crisp highs
  • Universal 6×9 inch fit suits cars, SUVs, trucks and boats

6x9 Quadriaxial Speakers

The Pyle PL714BL is a 4-way quadriaxial car speaker built for drivers who want full-range sound from a single 6x9 inch opening. It combines a polypropylene woofer, 1.25 inch Mylar midrange and dual .5 inch piezo tweeters in one frame.

Factory Speaker Upgrade

These speakers replace standard 2-way or coaxial factory units that lack a dedicated midrange and dual tweeters. The jump is worth it when you want clearer separation between vocals, instruments and high-frequency detail without adding separate component speakers.

Mounting Depth and Power Match

Check that your door or rear deck offers at least 3.5 inches of clearance behind the mounting surface. Verify your head unit or amplifier can deliver up to 200 watts RMS per channel into a 4 ohm load so the speakers receive clean power at listening volumes.

Highlights

  • Four-way quadriaxial design separates frequencies for clearer sound
  • 400 W peak power handles loud passages without distortion
  • 90 dB sensitivity produces strong volume from modest amplifier power
  • Frequency response 40 Hz – 22 kHz covers deep bass to crisp highs
  • Universal 6×9 inch fit suits cars, SUVs, trucks and boats

Specifications

BrandPYLE
Type4-Way Quadriaxial Car Speakers
Speaker Size6x9 inches
ModelPL714BL
Vehicle TypeUniversal compatibility with cars, SUVs, trucks, and boats
ColorBlack
Woofer MaterialPolypropylene Cone
Surround MaterialRubber Surround
Midrange1.25'' Mylar Dome
TweeterDual 0.5'' Piezo Tweeters
Voice CoilHigh-temperature aluminum
Magnet ConstructionStrontium Magnet
Frame ConstructionStamped Steel
Part NumberPL714BL
Peak Power400 Watts
RMS Power200 Watts
Sensitivity90dB
Frequency Response40Hz–22kHz
Impedance4 Ohm
Mounting Depth3.5 inches
Cut-out Dimensions8.7'' x 6.1''
FeaturesHigh power output for rich, dynamic sound
Wide frequency response for full-range audio reproduction
Lightweight design for easy installation in most vehicles
Durable materials for reliable performance
Package Contain- (2) 6x9/7x10 Car Speakers
- Mounting Hardware
- User Manual

Questions about this item

What mounting depth does the 6x9 PL714BL speaker require?

The speaker needs a mounting depth of 3.5 inches to fit properly in your vehicle's speaker opening.

How do I wire the 4-ohm quadriaxial speakers, and what step do installers often miss?

Connect positive to positive and negative to negative for the 4-ohm load; the step often missed is verifying the factory wiring polarity before finalising the connection.

When should the rubber surrounds on these PL714BL speakers be inspected or replaced?

Inspect the rubber surrounds annually for cracking or hardening; replace them if they lose flexibility, which typically occurs after several years of exposure to heat and UV.
