Compact metal KVM extender pair with HDMI and USB ports, vented aluminium finish

PWAYTEK 164ft KVM 1080P HDMI USB Extender KVM Switch

SKU CH-JFKB-9M2H0

Transmits 1080p HDMI and USB signals up to 164 ft over Cat6 cable with local loop-out and IP54-rated metal housing

  • TypeHDMI, USB
  • PC ConnectorsHdmi,usb
  • Console ConnectorsHdmi,usb
  • Computer ConnectionsHDMI
  • Monitor Connections1 Port
  • Video ResolutionHdmi

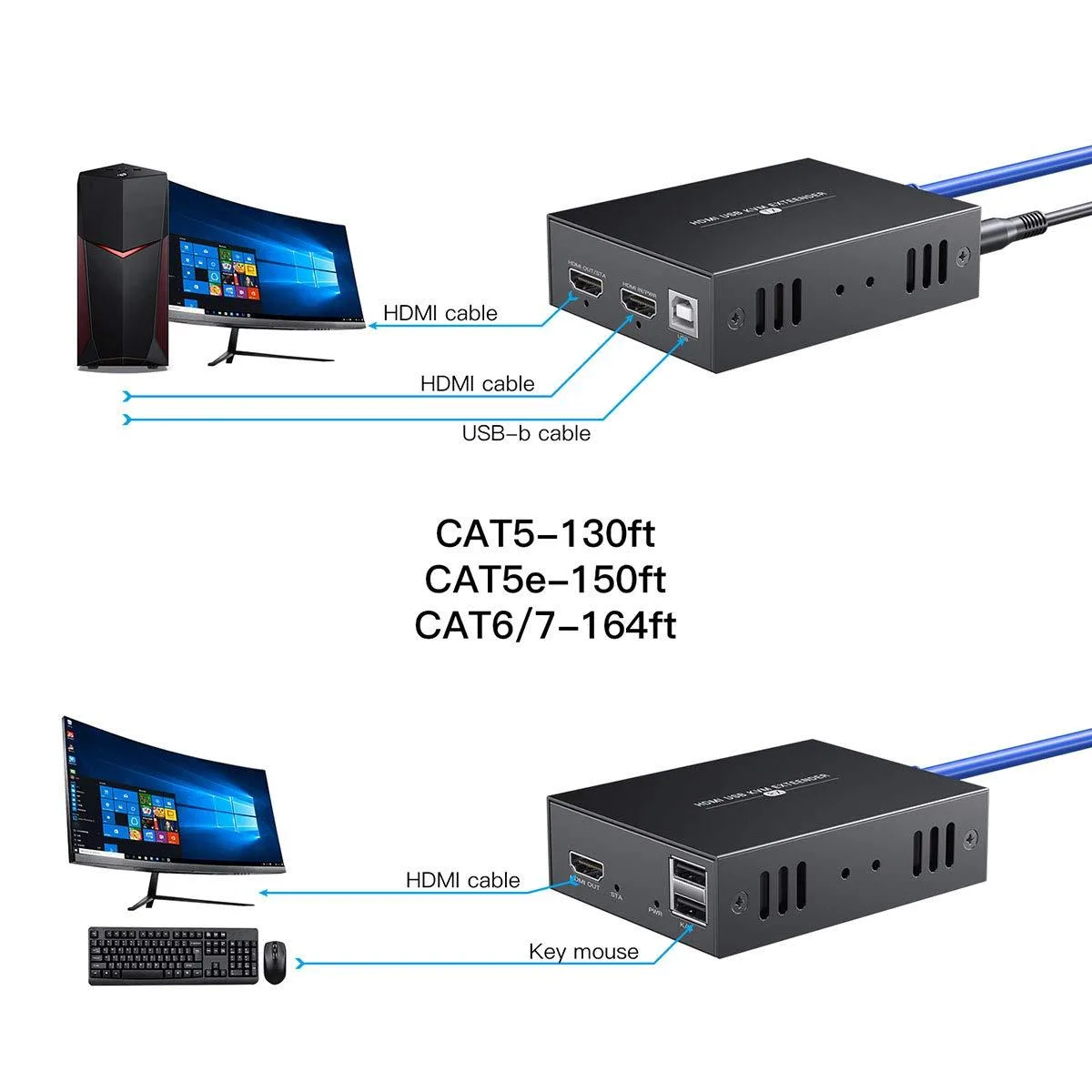

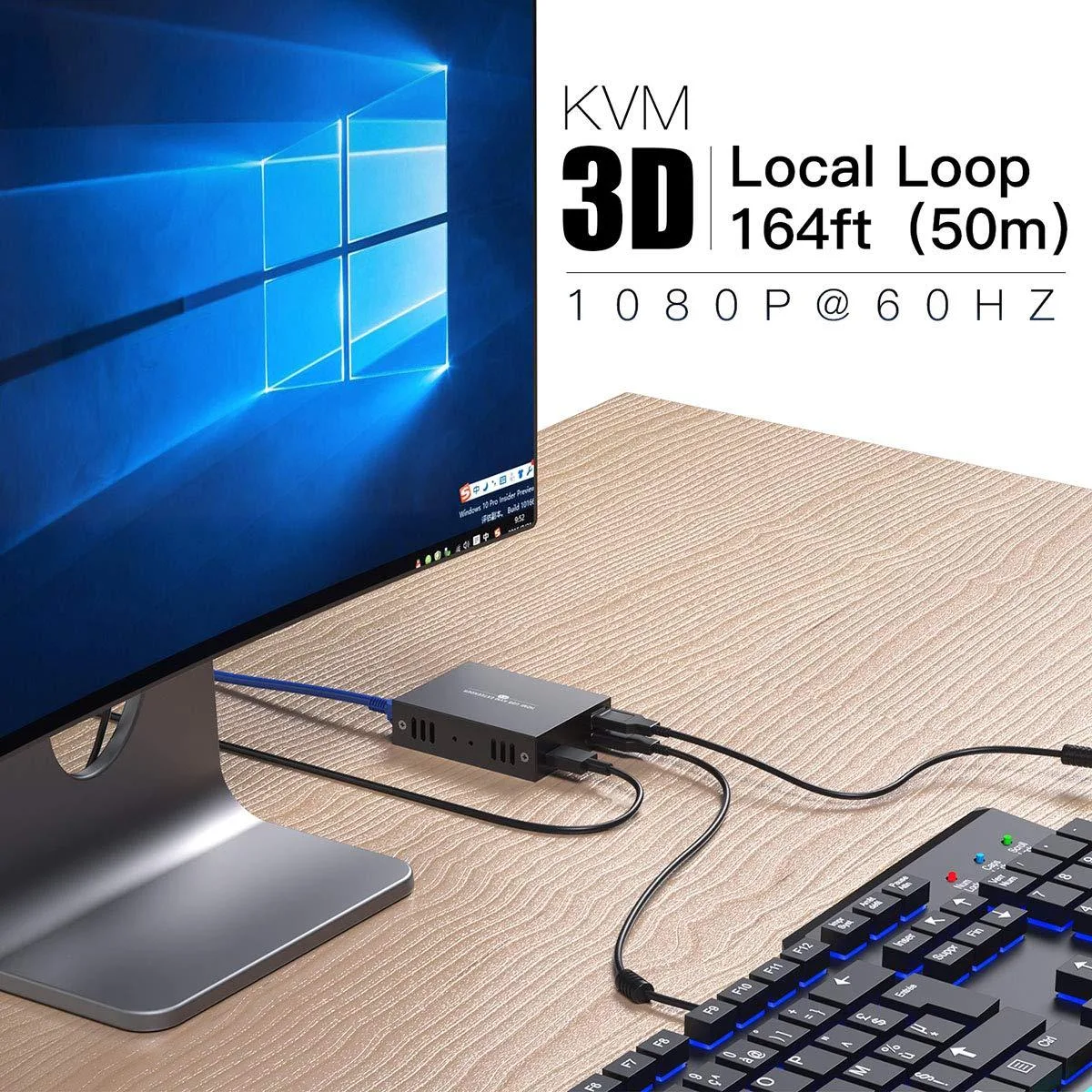

  • Transmit 1080p@60Hz up to 164ft over Cat6/7 cable
  • Extend HDMI and USB signals 130ft using Cat5e cable
  • Control remote PC with keyboard and mouse via USB KVM
  • Connect local and remote monitors simultaneously with dual HDMI outputs
  • Power both units from a single adapter using PoC function

Purpose and Audience

The PWAYTEK 164ft KVM extender sends 1080p HDMI video and USB keyboard-mouse control over a single Cat5e or Cat6 cable up to 50 metres. It suits installers who need a remote console for a PC, server or media player in a separate room or rack.

Installation Requirements

Verify the source device has an HDMI output and a spare USB port for the transmitter. Ensure a solid Cat5e, Cat6 or Cat7 patch cable with T568B wiring is available for the required run length. Confirm the remote monitor accepts 1080p@60Hz over HDMI and that a 220-volt outlet can power the transmitter unit.

Upgrade Context

This replaces a short HDMI cable plus a local keyboard and mouse when the computer must sit more than 10 feet from the user. The jump is worth it when distance exceeds standard cable limits or when a second local display is needed via the transmitter loop-out port.

Highlights

  • Transmit 1080p@60Hz up to 164ft over Cat6/7 cable
  • Extend HDMI and USB signals 130ft using Cat5e cable
  • Control remote PC with keyboard and mouse via USB KVM
  • Connect local and remote monitors simultaneously with dual HDMI outputs
  • Power both units from a single adapter using PoC function

Specifications

BrandPWAYTEK
Series164ft KVM 1080P
TypeHDMI, USB
PC ConnectorsHdmi,usb
Console ConnectorsHdmi,usb
Computer ConnectionsHDMI
Monitor Connections1 Port
Video ResolutionHdmi
PC SelectionUSB, Push Button, Temperature Switch
Monitors SupportedHdmi, Hdmi,usb
Wire Gauge1 amps
Temperature70 degrees_celsius
Audio FeaturesHdmi,usb, Hdmi
Power Features220 volts, false
USB FeaturesHdmi,usb
SplitterOnly164ft KVM 1080P
ApplicationHdmi,usb, Hdmi, remote
FeaturesHdmi,usb, Hdmi, remote, 1, IP54, Push Button
Dimensions5.4102 cm x 17.907 cm x 22.7076 cm

Questions about this item

Does the kit include the Cat6 cable needed for the 164ft run, or must I buy it separately?

The extender transmits HDMI 1.3 video up to 164ft over Cat6 or Cat7 cable, and 130ft over Cat5e; the Ethernet cable is not included and must be purchased separately.

Should I choose Cat5e, Cat6 or Cat7 for a 50m installation?

For the full 50m distance the manufacturer recommends Cat6 or Cat7; Cat5e is limited to 40m and Cat5 to 30m.

Will the 1080p@60Hz spec hold over the full 164ft link?

Yes, the extender supports 1920x1080@60Hz and 3D signals at the maximum 50m Cat6/7 distance, with HDCP 1.2 compliance.
