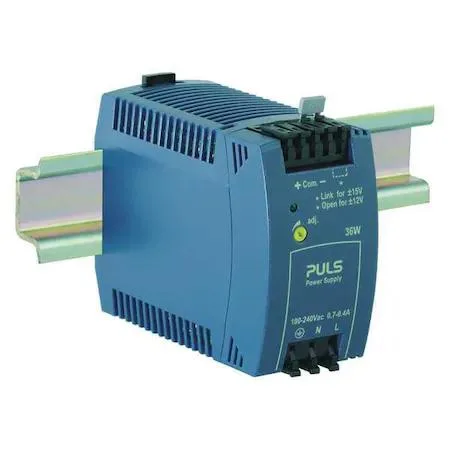

PULS ML30.106 DC Power Supply 36W DIN Rail

Compact DIN-rail supply for control cabinets

The PULS ML30.106 is a 36 W switching power supply that mounts on a standard DIN rail inside industrial enclosures. It accepts a wide 100 to 240 V AC or 110 to 300 V DC input and delivers a selectable 12 V or 15 V DC output rated up to 2.5 A or 2.8 A respectively. The plastic case measures 75 mm high, 45 mm wide and 91 mm deep with an IP20 rating and operates from -10 °C to 70 °C.

Replaces bulkier linear units when space is tight

Installers moving from older linear supplies gain the MiniLine series' high efficiency and long lifetime in a narrower 45 mm profile. The switch is worthwhile when cabinet depth is limited, when the wider input range simplifies stock for global machines, or when the green LED status indicator speeds commissioning. It is not suited for applications that require higher wattage, multiple isolated outputs or redundancy modules.

Handles sensors, small PLCs and fieldbus nodes

The 36 W output comfortably runs typical 12 V or 15 V sensor loops, compact PLCs and communication modules with 50 mV output noise and 54 ms hold-up time. Headroom disappears when loads approach the 2.8 A peak or when ambient temperatures stay near 70 °C without derating. NEC Class 2 listing covers many low-voltage control circuits but excludes higher-power actuator banks.
