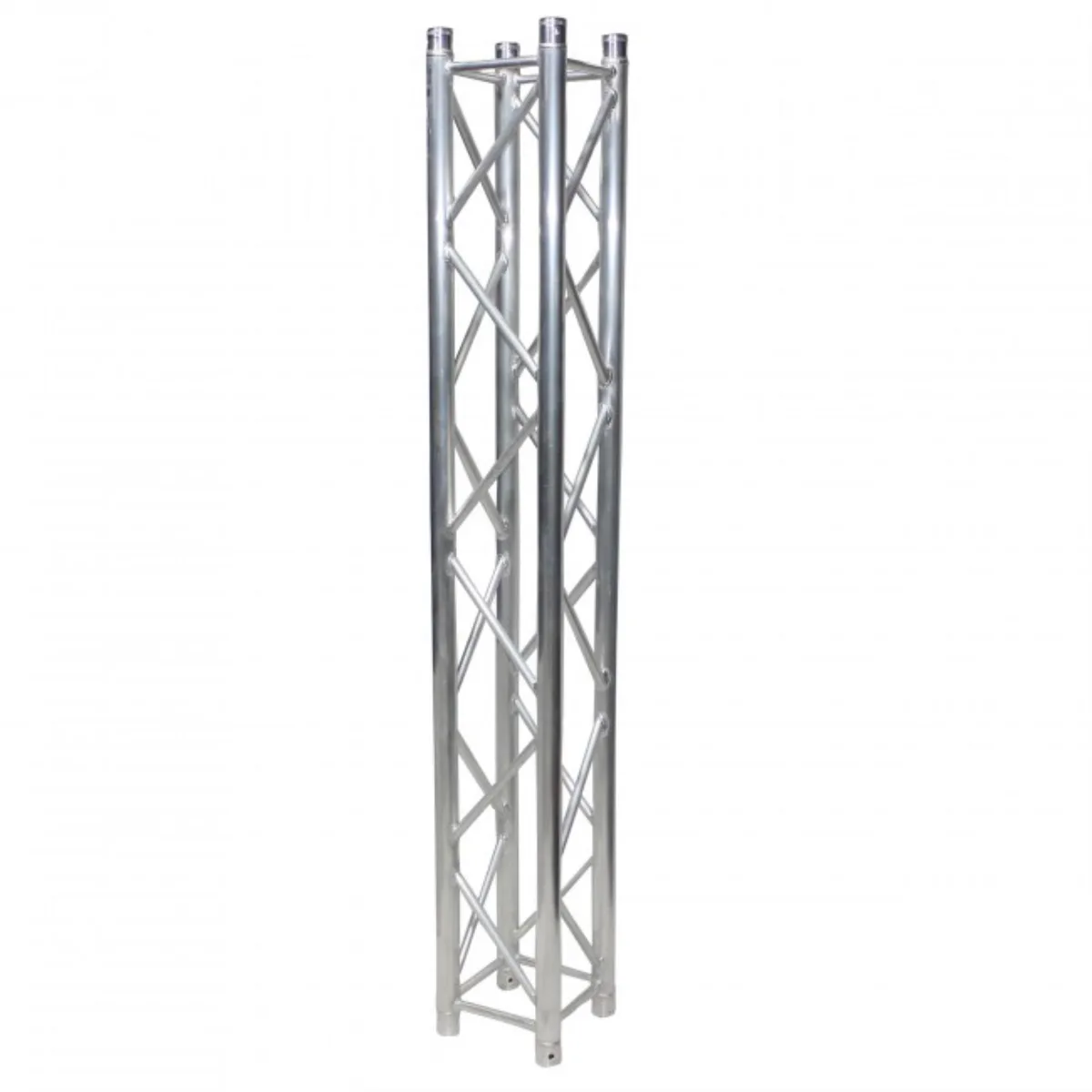

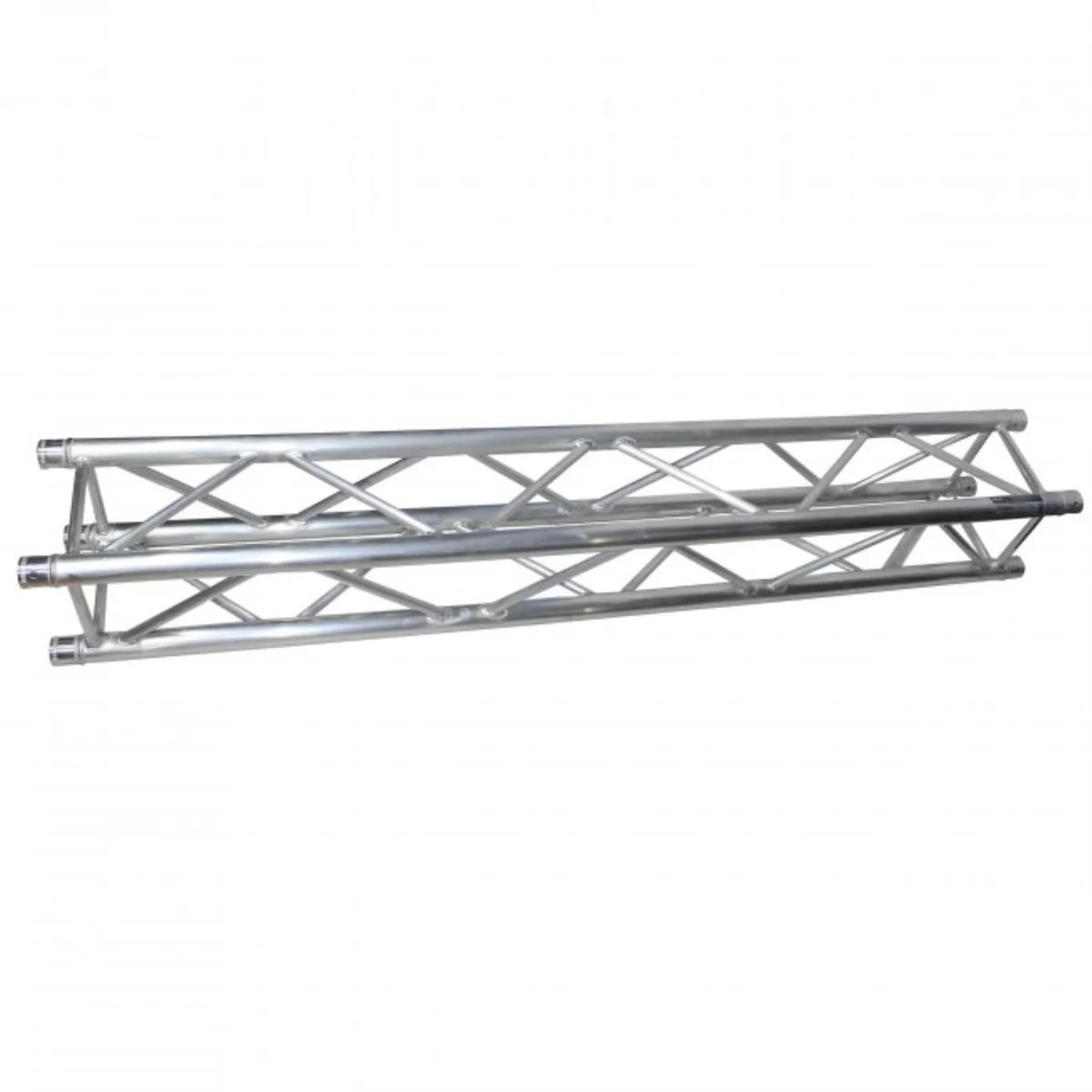

Silver aluminium square truss segment 6.56 ft long with conical connectors

ProX

ProX XT-SQ656 6.56 ft F34 Square Truss 2 mm Wall

SKU CH-DR5B-K4XN7

A 6.56 ft F34 square truss segment made from EN-AWT6 6082 aluminium with 2 mm wall tubing and 20 mm diagonal braces, rated for spans up to 52.5 ft and supplied with one connecting hardware set

  • 56 ft F34 square truss segment for professional lighting rigs and stage roofs
  • EN-AWT6 6082 aluminum construction delivers high-strength durability for touring and permanent installations
  • 2 mm wall thickness on 2 in main tubing with 20 mm diagonal braces ensures rigid load-bearing capacity
  • Conical coupling system enables genderless, fast connections compatible with most F34-style trussing
  • TUV certified welding and manufacturing tolerances support spans up to 52.5 ft

Professional F34 Square Truss Segment

The ProX XT-SQ656 is a 6.56 ft (2.00 m) F34 square truss segment built from EN-AWT6 6082 aluminum for professional touring, rental, and permanent installations. It suits lighting rigs, stage roofs, and retail displays that demand consistent manufacturing tolerances and TUV certified aluminum welding.

Thermals Noise and Power Draw Not Applicable

This passive structural component generates no heat, produces no noise, and draws no electrical power during normal use. Thermal management, acoustic performance, and power consumption are not relevant to its operation.

Conical Coupler System and 2 mm Wall Construction

The segment weighs 31 lbs and features 2 in main tubing with a .08 in (2 mm) wall plus .75 in (20 mm) diagonal braces for rigidity. A genderless conical coupling set is included for fast, secure connections compatible with most F34-style trussing, supporting spans up to 52.5 ft (16 m).

Highlights

  • 56 ft F34 square truss segment for professional lighting rigs and stage roofs
  • EN-AWT6 6082 aluminum construction delivers high-strength durability for touring and permanent installations
  • 2 mm wall thickness on 2 in main tubing with 20 mm diagonal braces ensures rigid load-bearing capacity
  • Conical coupling system enables genderless, fast connections compatible with most F34-style trussing
  • TUV certified welding and manufacturing tolerances support spans up to 52.5 ft

Specifications

No published specifications for this item yet.

Questions about this item

How do I install the ProX XT-SQ656 truss segment and what step do people often get wrong?

Connect segments using the included ProX conical coupling set — insert the conical pins through the aligned holes, then tighten the locking bolts to the specified torque. The step people miss is fully seating each pin before torquing; a partially seated pin creates play that shows up under load.

What maintenance or replacement will the ProX XT-SQ656 truss need later?

Inspect the EN-AWT6 6082 aluminum main tubes (2 mm wall) and 20 mm diagonal braces for dents, cracks, or corrosion after each tour. Replace any segment where tube deformation exceeds 1 mm or where the conical coupler bores show wear beyond 0.5 mm ovality.

What limit appears first on the ProX XT-SQ656 truss during sustained use?

The 52.5 ft maximum clear-span rating is the first structural limit — deflection and chord stress reach allowable values at that span under uniform load, so longer runs require intermediate supports or a larger truss profile.
