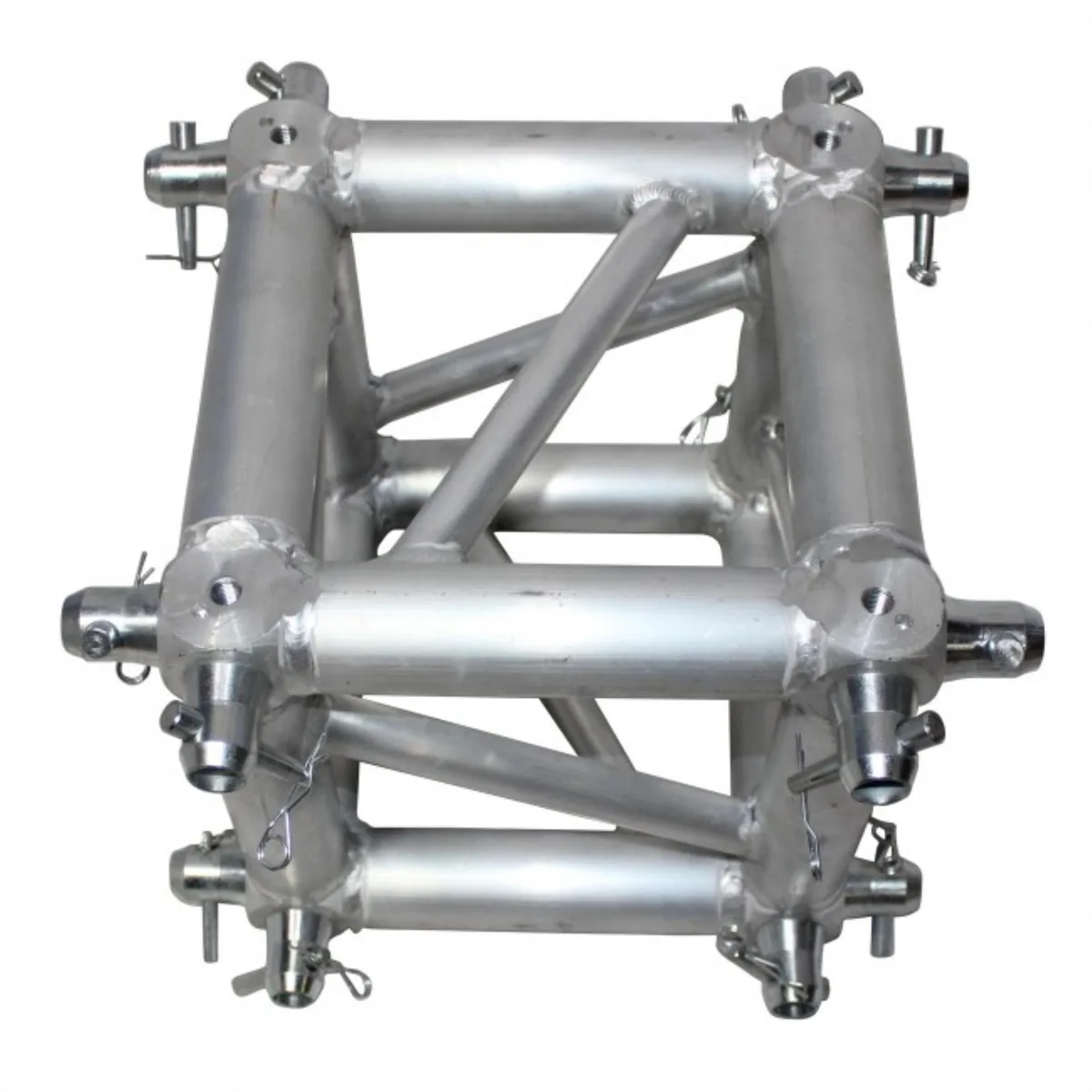

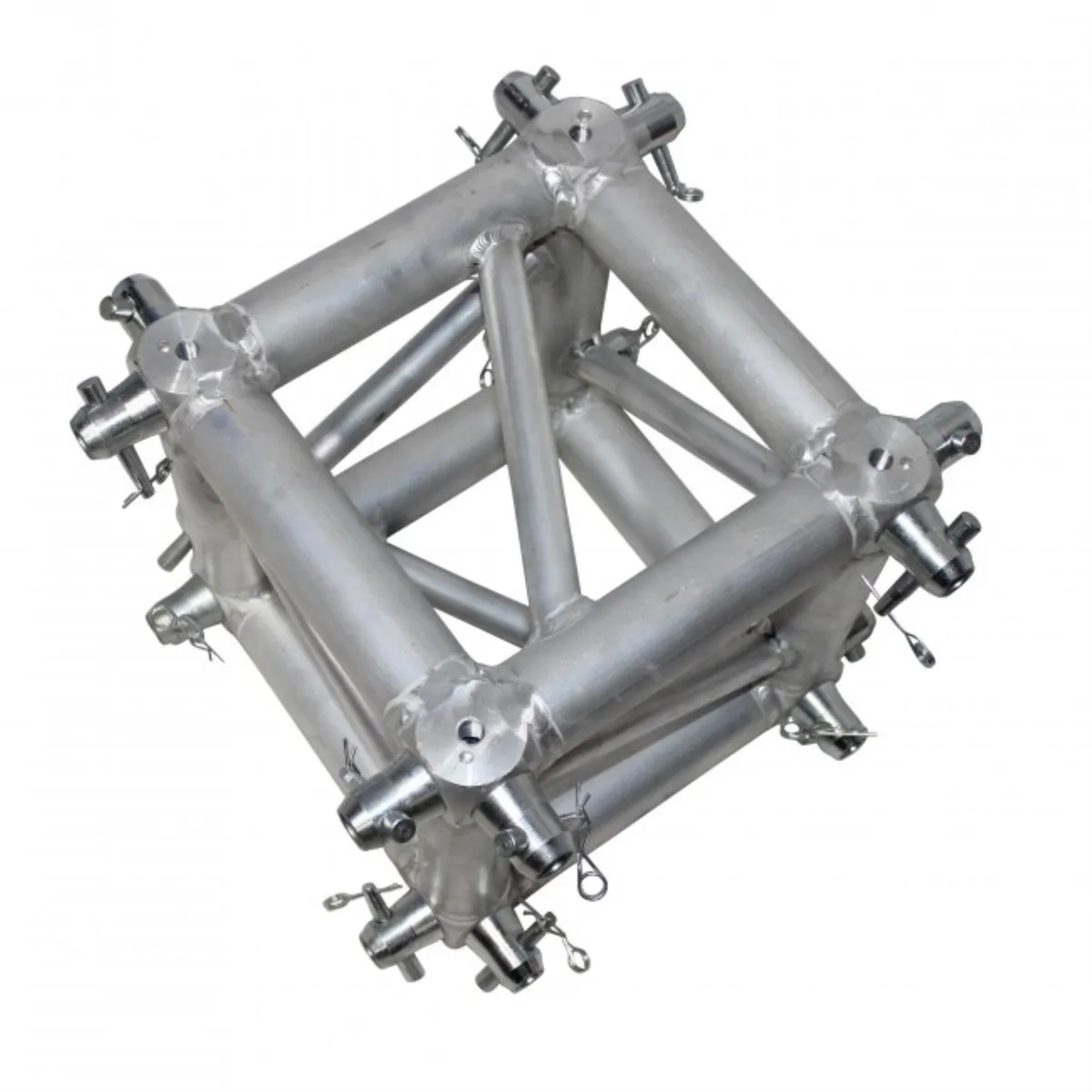

Silver aluminium cube junction block with sixteen half conical couplers attached

ProX

ProX XT-JB6W-4W 6 Way Square Truss Junction Block dj accessory

SKU CH-VQFY-2HSRE

Six-way junction block connects F34 square truss sections with 16 half conical couplers included

  • Six-way junction connects multiple F34 truss sections
  • Sixteen half-conical couplers included for four side connections
  • EN-AW 6082 aluminium with TUV-certified welds for structural reliability
  • 2 mm main-tube walls and 20 mm braces deliver high load capacity
  • Compact 290 mm cube fits standard F34 square truss grids

Universal F34 Truss Junction

The ProX XT-JB6W-4W is a six-way square truss junction block designed for standard F34 configurations. It serves as a central connecting point for aluminium truss structures in professional stage and event builds. The unit includes sixteen half conical couplers to secure four side connections. It is manufactured from EN-AW 6082 aluminium with TUV certified welding.

Expands Four-Sided Layouts

This block replaces a standard four-way junction when a layout requires six connection axes instead of four. The jump is worth it when a rig design calls for additional vertical or horizontal truss runs from a single centre point. The included half conical couplers use a tolerance-free standard conical connector system for secure assembly. It fits directly into existing F34 square truss inventories.

Verify Truss Compatibility First

Confirm that your existing truss uses the F34 square profile with 50 mm main tubes and 20 mm braces before ordering. The junction block measures 11.45 inches on each side and weighs 17.00 lbs, so ensure your structure can accommodate the dimensions and load. The hardware supplied is specific to the half conical coupler format used on ProX XT series components.

Highlights

  • Six-way junction connects multiple F34 truss sections
  • Sixteen half-conical couplers included for four side connections
  • EN-AW 6082 aluminium with TUV-certified welds for structural reliability
  • 2 mm main-tube walls and 20 mm braces deliver high load capacity
  • Compact 290 mm cube fits standard F34 square truss grids

Specifications

No published specifications for this item yet.

Questions about this item

What truss system does the 11.45" square junction block fit?

It fits standard F34 square truss configurations and includes 16 half conical couplers for four side connections.

How do the half conical couplers attach to the 2" main tubes?

Slide each coupler onto the tube end and tighten the bolt to lock the conical taper; the tolerance-free design prevents play when torqued correctly.

When should the 16 included half conical couplers be inspected or replaced?

Check coupler threads, cones and bolts before every build; replace any showing deformation, stripped threads or cracked aluminium after load-bearing use.
