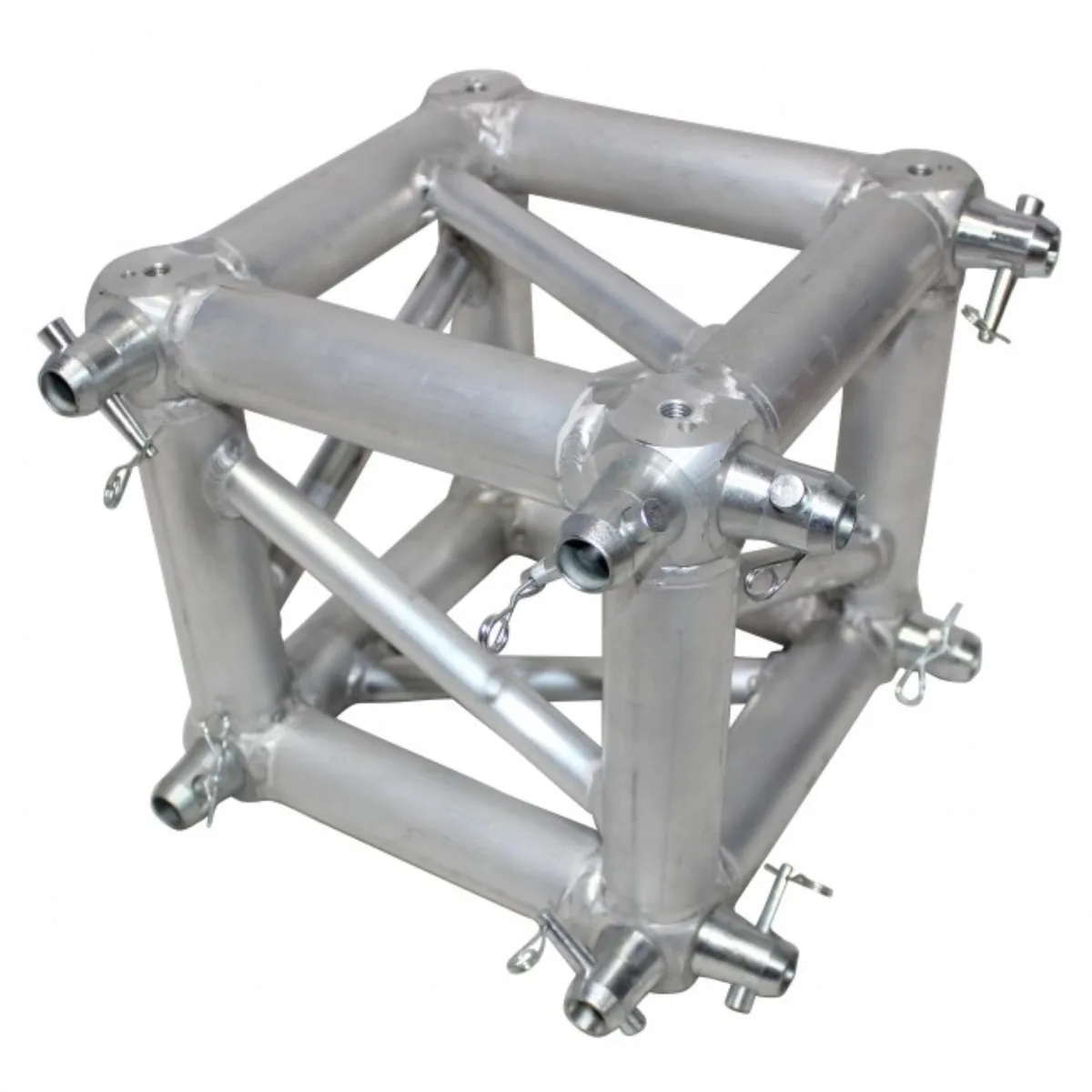

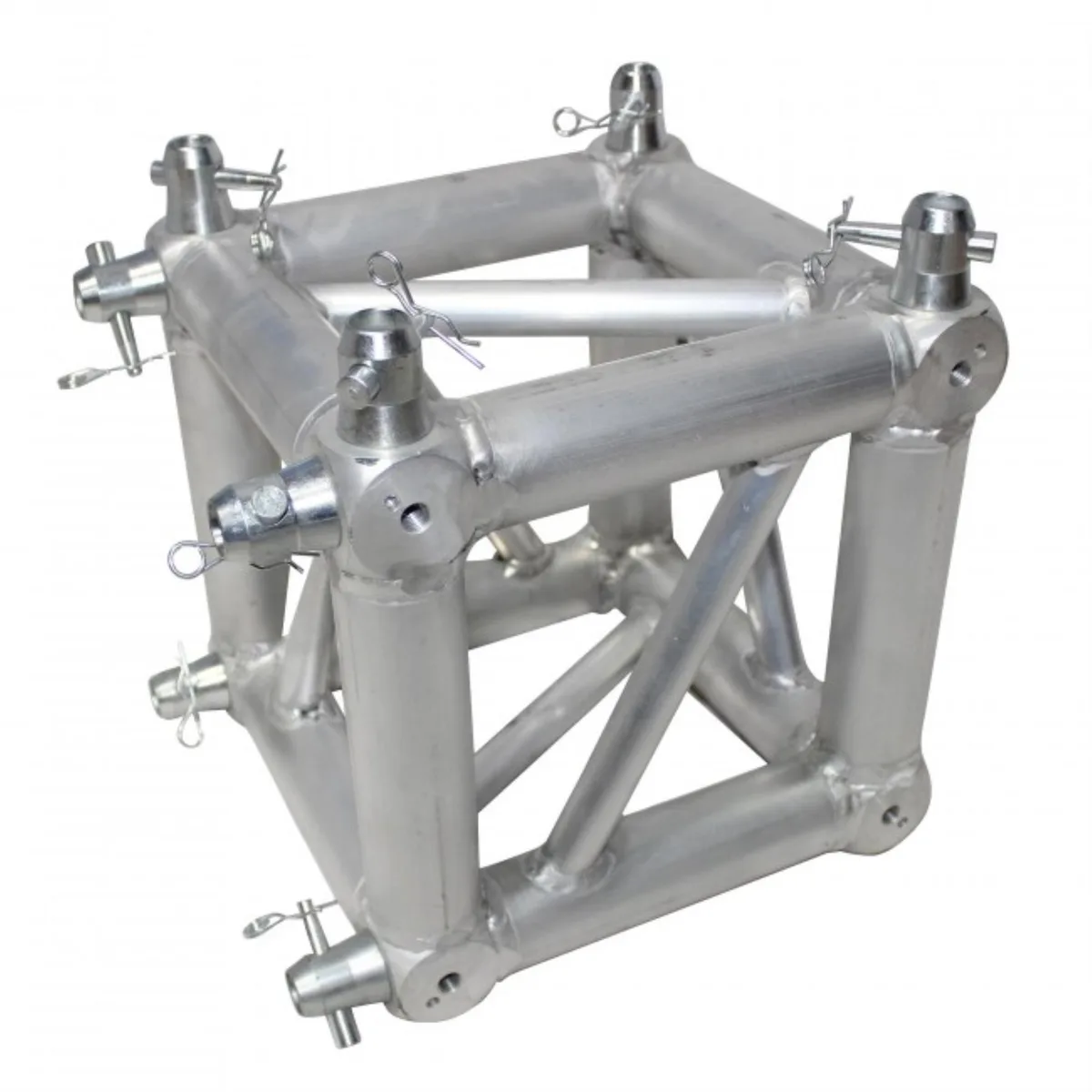

Silver aluminium cube junction block with eight half conical couplers attached

ProX

ProX XT-JB6W-2W 6 Way Square Truss Junction Block with 8 Half Conical Couplers

SKU CH-7WCY-4N9WZ

Connects six F34 square truss sections using eight included half conical couplers made from EN-AWT6 6082 aluminium with TUV certified welding

  • Universal 6-way connection for F34 truss systems
  • Includes eight half conical couplers for immediate assembly
  • EN-AWT6 6082 aluminium with TUV-certified welds
  • 2 mm wall thickness on 50 mm main tubes
  • Compatible with standard conical connectors across brands

Universal F34 Truss Junction Block

The ProX XT-JB6W-2W is a six-way square junction block designed for F34 truss configurations. It serves as a central connecting point for lighting and staging professionals building modular rigs. The block arrives with eight half conical couplers ready for immediate assembly.

TUV-Certified 6082 Aluminium Construction

The block is manufactured from EN-AWT6 6082 aluminium with TUV-certified welding, meeting third-party safety and reliability standards. Main tubes use 2 mm wall thickness and 50 mm outer diameter with 3/4-inch diagonal bracing for structural rigidity. The conical connector system mates with other brands sharing the same F34 profile.

11.42-Inch Cube With 21 lb Per Metre Rating

Each block measures 11.42 inches per side and weighs 17 lbs, rated at 21 lb per 3.28 ft of truss span. It comfortably handles typical DJ lighting arrays and small PA hangs within published load charts. Builds exceeding the per-metre rating or requiring longer unsupported spans will need additional bracing or larger truss sections.

Highlights

  • Universal 6-way connection for F34 truss systems
  • Includes eight half conical couplers for immediate assembly
  • EN-AWT6 6082 aluminium with TUV-certified welds
  • 2 mm wall thickness on 50 mm main tubes
  • Compatible with standard conical connectors across brands

Specifications

No published specifications for this item yet.

Questions about this item

What does the 11.45 inch cube size mean when the block is installed in a truss run?

The block measures 11.45 inches on each side, creating a 290 mm square junction that aligns with standard F34 truss dimensions and lets you branch in six directions from a single point.

How does the conical connector system limit compatibility with other truss brands?

It mates only with truss that uses the same standard conical connector and 50 mm main tube size, so other brands must share that exact connector style and tube diameter to join securely.

What mounting hardware is required to attach this junction block to F34 square truss?

The block includes eight half conical couplers that bolt onto the 2 inch outer diameter tubes with 2 mm wall thickness, providing the complete connection hardware for standard F34 configurations.
