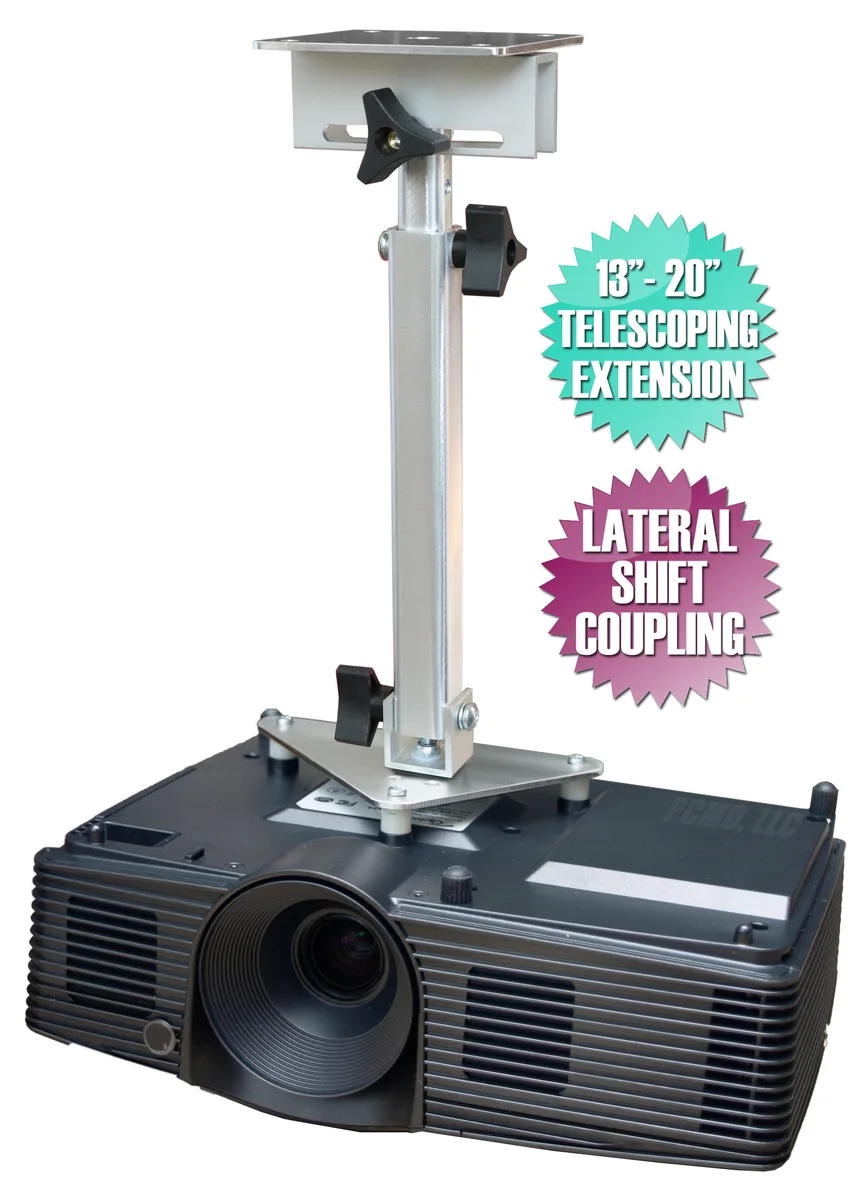

Silver aluminium projector ceiling mount with telescoping pole extending 13 to 20 inches

Projector Ceiling Mounts Direct, LLC.

Projector Ceiling Mounts Direct VIEWSONIC-LS560W-LAT-13 projector accessory 13-20 in extension

SKU CH-N4FZ-G3J4D

Aircraft-aluminium ceiling mount telescopes 13-20 inches and rotates 360 degrees for ViewSonic LS560 and PA504W projectors

  • TypeProjector Mounts
  • Telescoping extension positions projector 13 to 20 inches from ceiling in one-inch increments
  • 360-degree rotation plus pitch and roll adjustment enables precise image alignment
  • 5-inch lateral shift coupling centers lens when mounting surface is off-centre
  • CNC-machined 6061-T6 aircraft aluminium plate ensures exact fit for listed ViewSonic models
  • All mounting hardware and detailed instructions included for straightforward installation

Precision Fit for ViewSonic Projectors

This mount is engineered exclusively for the ViewSonic LS560HDH, LS560W, LS560WH, and PA504W models. The CNC-machined mounting plate ensures secure attachment using minimal projector coverage, preserving vital airflow for cooling. It replaces generic universal brackets that can obstruct vents or leave hardware exposed.

Upgrade from Universal Mounts

Switching to this model-specific design eliminates the guesswork of aligning adapter plates and reduces the risk of an insecure hold. The jump is worth it when the installation demands a clean aesthetic and reliable thermal management that universal kits cannot guarantee for these specific projectors.

Fixed Extension Range Limits

The telescoping arm locks in 1-inch increments between 13 and 20 inches from the ceiling surface, so rooms requiring a shorter or longer drop cannot use this unit. The lateral shift coupling provides 1-1/2 inches of side adjustment, but the mount is not rated for drop or false ceiling installations.

Highlights

  • Telescoping extension positions projector 13 to 20 inches from ceiling in one-inch increments
  • 360-degree rotation plus pitch and roll adjustment enables precise image alignment
  • 5-inch lateral shift coupling centers lens when mounting surface is off-centre
  • CNC-machined 6061-T6 aircraft aluminium plate ensures exact fit for listed ViewSonic models
  • All mounting hardware and detailed instructions included for straightforward installation

Specifications

TypeProjector Mounts

Questions about this item

What ceiling-to-projector distance does the 13-20 in telescoping extension cover?

The pole adjusts in one inch increments so the lens sits roughly 13 to 20 inches below the ceiling surface.

How is the Lateral Shift Coupling installed and what step is often missed?

Bolt the coupling between the pole and projector plate, then slide it side-to-side up to 1-1/2 inches to centre the lens; the missed step is tightening both clamping bolts after alignment.

What part of this mount may need replacement after years of ceiling vibration?

The 6061-T6 aluminum pole and CNC plate are built to last, but the lateral-shift locking bolts can loosen over time and should be re-torqued periodically.
