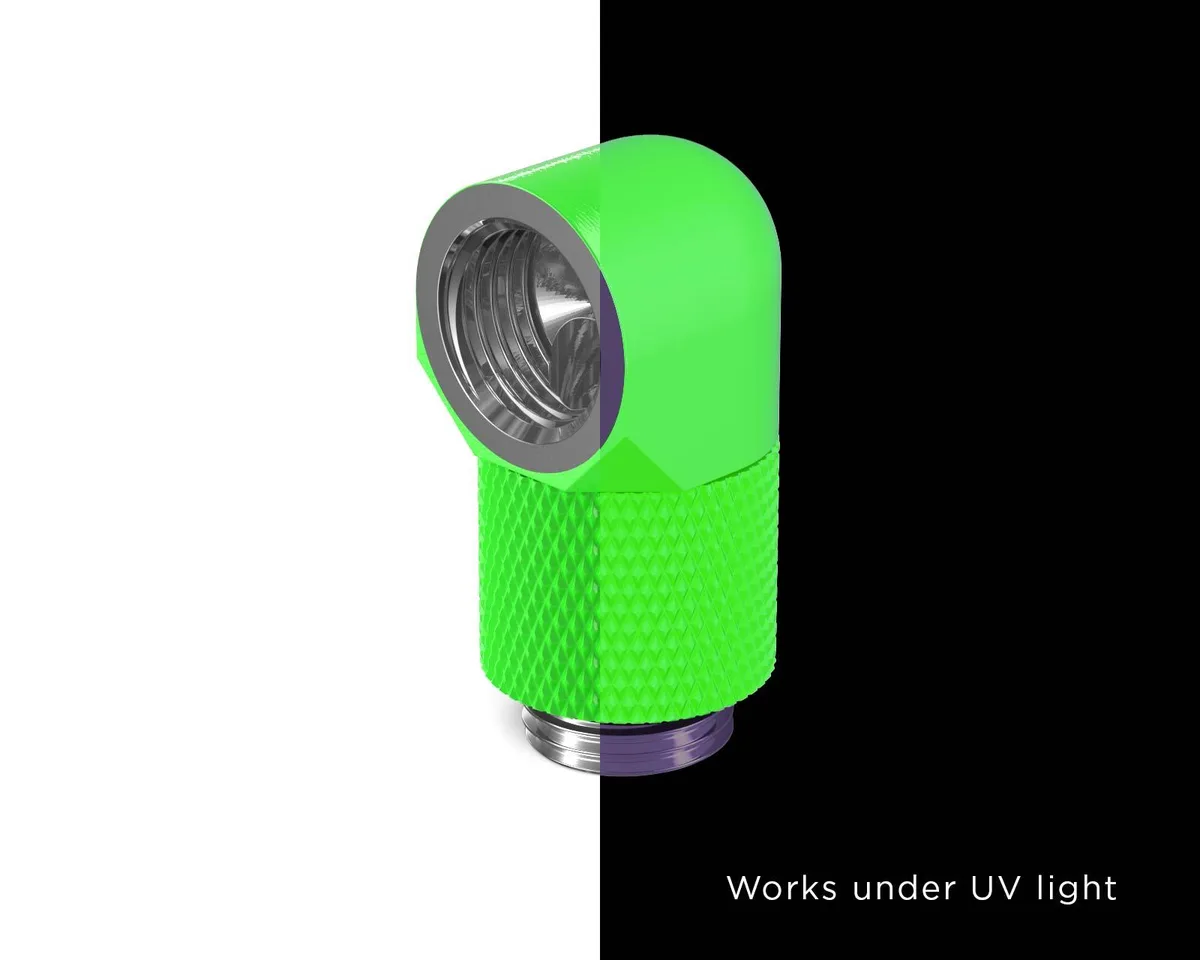

PrimoChill G1/4 90° rotary elbow fitting UV green 15mm extension

PrimoChill

PrimoChill G1/4 90° Rotary 15mm Extension Elbow Fitting UV Green

SKU CH-TAA1-YGJYY

A G1/4 rotary elbow fitting with a 15 mm extension and 360° swivel for tight-loop routing

  • TypeFittings
  • Full 360° rotary lets you aim the port any direction
  • 90° elbow redirects tubing runs around tight corners
  • 15 mm extension adds clearance for crowded builds
  • UV green powder coat resists fading under bright lighting
  • Solid brass body with G1/4 threads ensures leak-free sealing

G1/4 90° Rotary Extension Elbow

This PrimoChill fitting redirects tubing runs 90 degrees from the mount while adding 15mm of clearance. The 360-degree rotary function lets you aim the connection in any direction without stressing the loop. It suits custom water-cooling builds that need tight routing around components. The UV green powder-coated finish adds visibility under UV light.

Installation notes and common issues

Thread the male G1/4 end into a female port with 5mm thread depth until the installed base height reaches 15mm. The rotary joint spins freely, so align the outlet before final tightening to avoid kinking tubing. Over-tightening can damage the brass threads or crack the powder coating. Ensure O-rings seat cleanly to prevent leaks at the male-to-female junction.

Critical specification: 15mm installed base height

The 15mm installed base height decides whether this elbow clears neighbouring blocks, radiators or motherboard heatsinks. Measure the gap from the port face to the nearest obstruction; if it is less than 15mm the fitting will not seat fully. Total height is 37.7mm, so vertical clearance must also accommodate that dimension.

Highlights

  • Full 360° rotary lets you aim the port any direction
  • 90° elbow redirects tubing runs around tight corners
  • 15 mm extension adds clearance for crowded builds
  • UV green powder coat resists fading under bright lighting
  • Solid brass body with G1/4 threads ensures leak-free sealing

Specifications

TypeFittings

Questions about this item

How can I confirm the 90° rotary elbow is seated correctly after installation?

The fitting should rotate freely through 360° without binding, and the installed base height will measure 15 mm from the mounting surface when fully tightened.

What comes in the package and do I need any extra seals or tools?

The box contains one Male to Female G1/4 90° Rotary 15 mm Extension Elbow Fitting with its SX powder-coated finish; no additional O-rings or tools are included.

Which version of this fitting should I choose for a standard G1/4 loop needing a 15 mm offset?

This single model provides a G1/4 thread, 90° bend, 15 mm installed height and 37.7 mm total height — select it when those exact dimensions match your loop layout.
