Compact digital angle gauge with magnetic base and cross-line laser projection

PREXISO 3-in-1 Digital Angle Gauge with Laser Level

SKU CH-1SGD-67DAP

Measures angles across 0 to 360° with 0.05° resolution and ±0.1° accuracy at 0° and 90°, plus projects three laser lines from a magnetic base

  • Includesbase
  • 3-in-1 tool combines digital level, angle meter and laser lines
  • Magnetic base holds firmly on metal surfaces
  • Auto-rotating backlit display reads clearly upside down
  • High 0.05° resolution with ±0.1° accuracy at 0° and 90°
  • Buzzer alerts within ±1° of horizontal or vertical

3-in-1 Angle Gauge with Laser

The PREXISO 3-in-1 Digital Angle Gauge combines a digital level, angle meter, and cross-line laser level in one rechargeable tool. It is designed for woodworkers, DIY renovators, and tradespeople who need to measure angles, check level, and project layout lines simultaneously. The device covers a full 360° range across four 90° quadrants.

Magnetic Base and Auto-Rotating Display

A strong magnetic base secures the gauge to ferrous surfaces like saw blades or metal frames for hands-free operation. The LCD screen with backlight automatically reverses when the tool is turned upside down, keeping readings legible. An error warning appears on screen if the unit tilts diagonally beyond 30°, prompting correct placement.

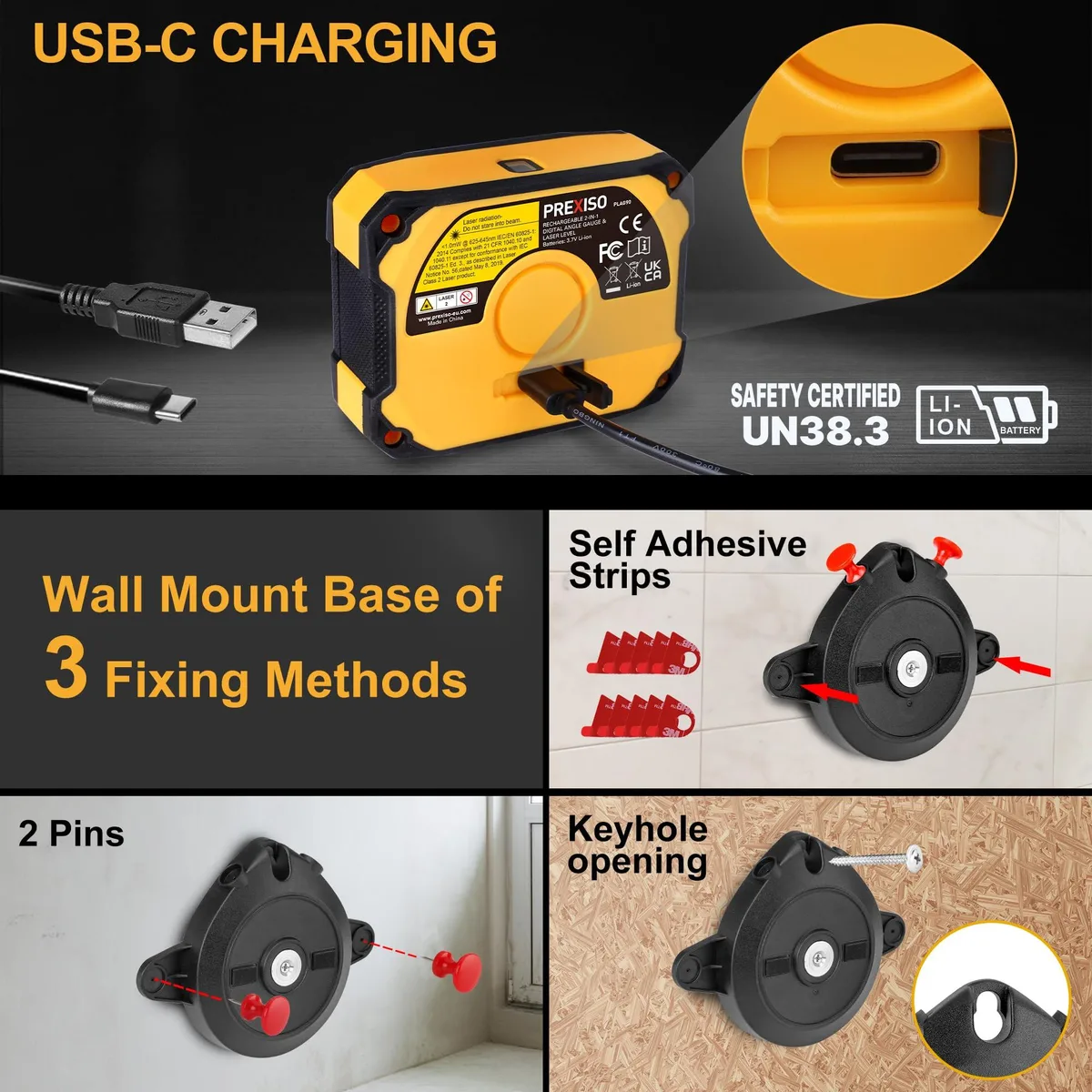

Rechargeable Power and Mounting Base

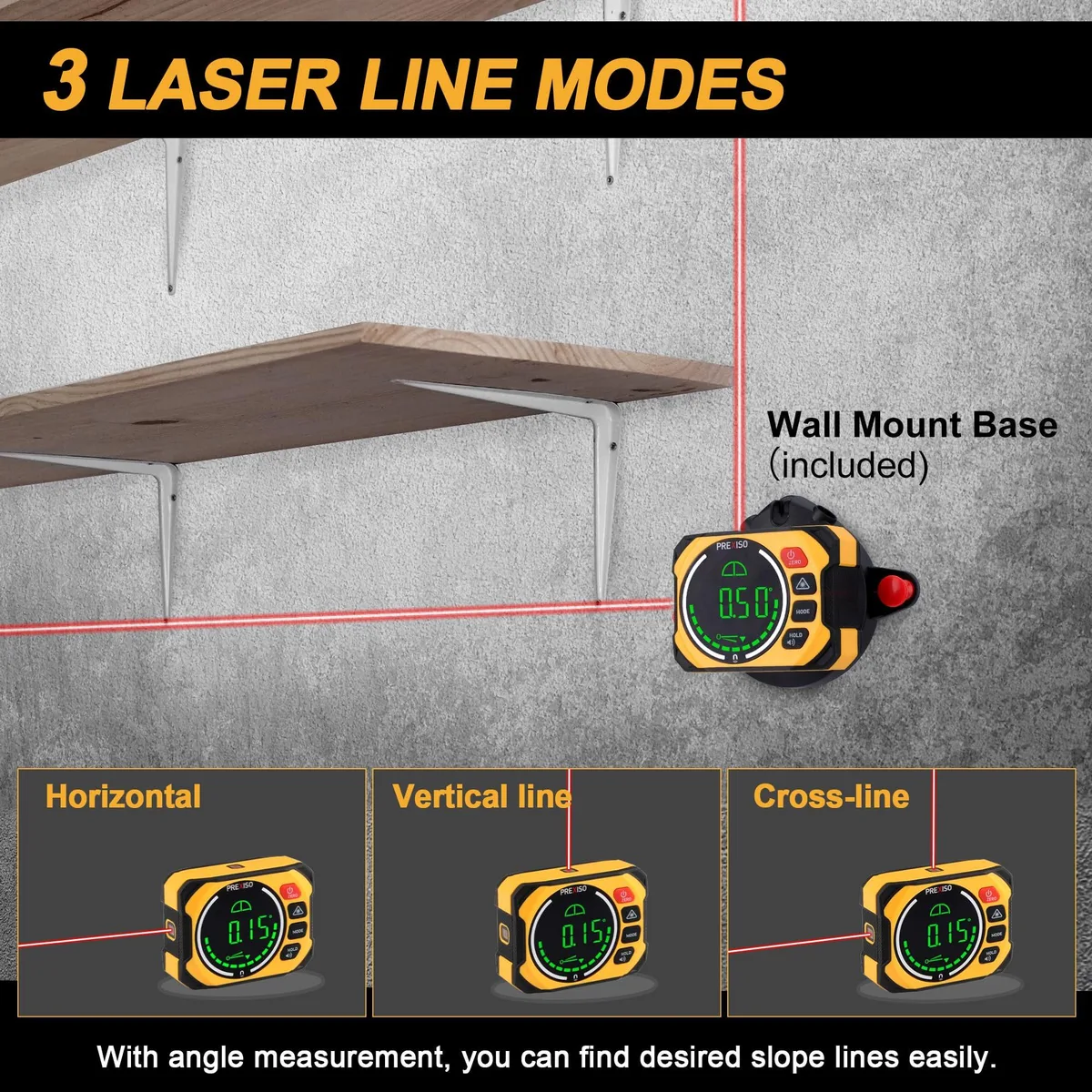

The kit includes a wall-mount base that extends mounting options beyond magnetic attachment. Rechargeable operation removes the need for disposable batteries during extended projects. Buyers who need a self-levelling rotary laser or a dedicated stud-finding function will find those features absent from this 3-in-1 unit.

Highlights

  • 3-in-1 tool combines digital level, angle meter and laser lines
  • Magnetic base holds firmly on metal surfaces
  • Auto-rotating backlit display reads clearly upside down
  • High 0.05° resolution with ±0.1° accuracy at 0° and 90°
  • Buzzer alerts within ±1° of horizontal or vertical

Specifications

Includesbase

Questions about this item

What laser class is the built-in level and what is its maximum output?

The device uses a Class II laser with a maximum output below 1 mW, projecting three level lines that can be switched on or off with a single button.

How does the gauge attach to a workpiece and what orientation does it tolerate?

A strong magnetic base holds it to ferrous surfaces; the display auto-rotates when the tool is upside down, but tilting more than 30 degrees off-axis shows an ERROR warning.

How do you switch between absolute and relative angle modes on this gauge?

Power on to start in absolute mode, then press the ZERO button once to enter relative mode; the screen shows degrees, percent, mm/m or in/ft in either mode.
