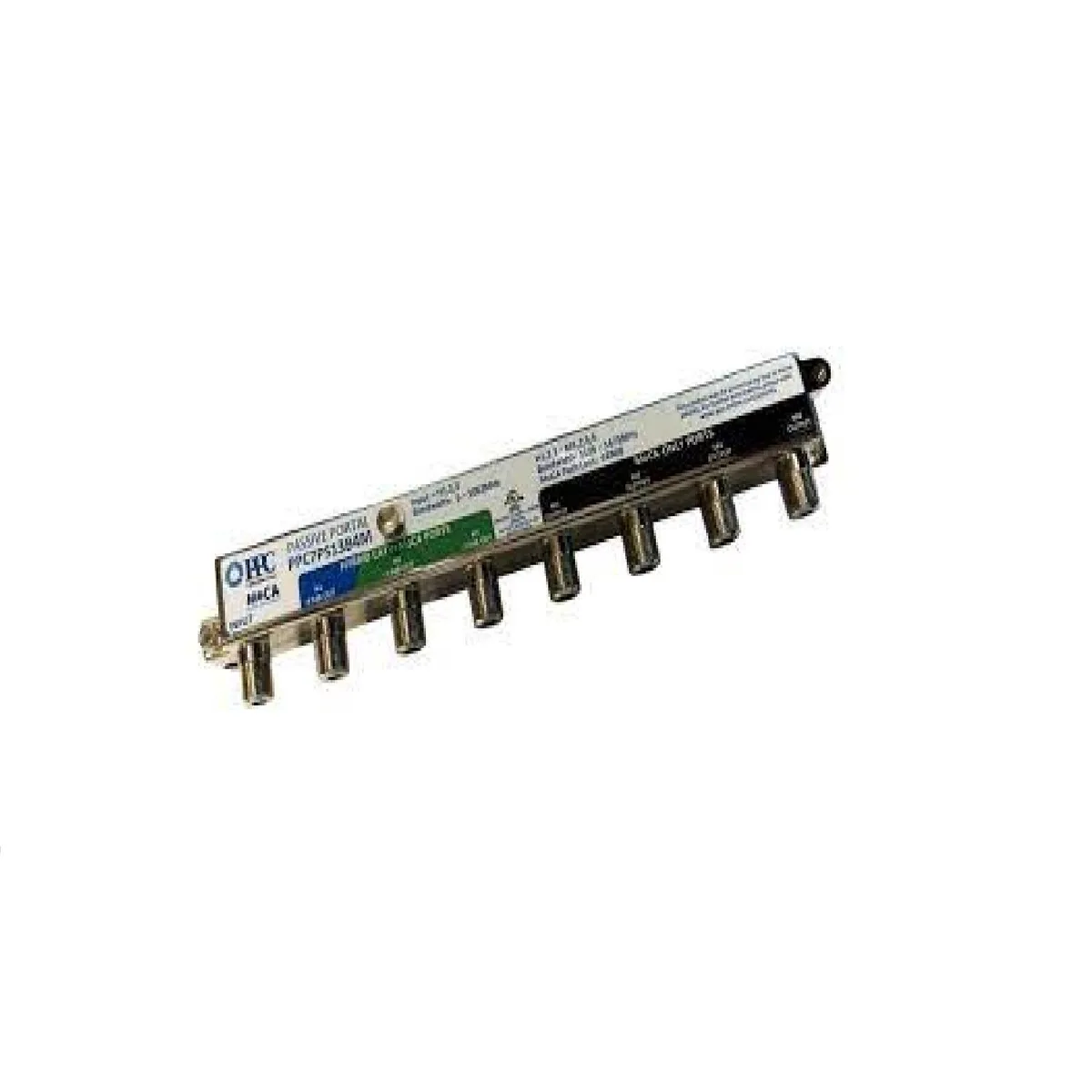

Silver coaxial splitter with seven F-type ports and ground bond point

PPC

PPC MoCAPPC7PS13B4M7Way 7-Way Splitter 3 Broadband 4 MoCA Ports

SKU CH-G09F-P88CA

A passive seven-way splitter delivering three broadband ports up to 1002 MHz and four MoCA-only ports up to 1675 MHz with 40 dB isolation

  • ColorSilver
  • Weight0.5
  • Ready for DOCSIS 3.1 and Full Duplex operation
  • Three broadband ports covering 5 to 1002 MHz
  • Four MoCA-only ports spanning 1125 to 1675 MHz
  • Over 40 dB isolation keeps MoCA traffic off the cable network
  • Expand MoCA outputs up to 16 with 4-way Expansion Stick

Product Identity

The PPC MoCAPPC7PS13B4M7Way is a passive 7-way MoCA coaxial portal designed for professional video and broadband installations. It separates incoming cable signals into three broadband outputs and four dedicated MoCA-only ports for isolated home networking.

Installation Notes

The unit requires no external power and mounts via a UL-listed ground bond point for safe earthing. Adding the optional Expansion Stick increases MoCA ports from four to seven or up to sixteen, but the stick must be securely attached to the portal or installed remotely.

Pre-Order Checks

Verify that your cable plant operates within the 5–1002 MHz broadband range and the 1125–1675 MHz MoCA band used by this splitter. Confirm that your existing MoCA adapters and set-top boxes are compatible with these frequency splits and the stated 40 dB isolation at the input port.

Highlights

  • Ready for DOCSIS 3.1 and Full Duplex operation
  • Three broadband ports covering 5 to 1002 MHz
  • Four MoCA-only ports spanning 1125 to 1675 MHz
  • Over 40 dB isolation keeps MoCA traffic off the cable network
  • Expand MoCA outputs up to 16 with 4-way Expansion Stick

Specifications

BrandPPC
ModelMoCAPPC7PS13B4M7Way
ColorSilver
Weight0.5

Questions about this item

How can I verify the Passive MoCA Portal is isolating MoCA traffic from the cable network after installation?

Measure isolation at the input port; the specification states more than 40dB isolation between the MoCA-only network and the cable access network.

What comes in the box and what extra parts are required to reach the maximum 16 MoCA-only outputs?

The 7-way unit includes three broadband ports (5-1002MHz) and four MoCA-only ports (1125-1675MHz); add 4-way Expansion Sticks to expand from 4 to up to 16 MoCA-only outputs.

Which version should I choose if I need both DOCSIS 3.1 broadband and MoCA 2.5 device support in a single install?

This single model is ready for DOCSIS 3.1 and Full Duplex while providing four MoCA-only ports in the 1125-1675MHz range, covering both requirements.
