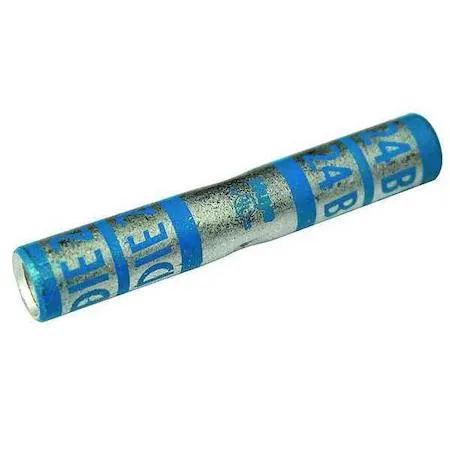

Blue tin-plated copper crimp connector, 1.77 in long, seamless barrel

POWER FIRST

POWER FIRST Electrical Box Blue 6 AWG 600V

SKU CH-V6ED-REQGF

A tin-plated copper splice connector for 6 AWG stranded wire rated to 600 V with a 1.77 in barrel

  • TypeElectrical Connectors
  • Blue colour code identifies 6 AWG wire size
  • Tin-plated copper barrel resists corrosion
  • Seamless long barrel handles 600 V applications
  • UL 486A-486B listed for code compliance
  • Four crimps create a secure connection

Crimp Connector for 6 AWG Copper

This crimp wire connector is built for stranded copper conductors at 6 AWG. It accepts a single conductor and is rated for 600 V maximum voltage. The blue colour code matches the die code 24 for quick identification on the job site.

Tin-Plated Seamless Barrel

The long-barrel splice features a seamless, tin-plated copper barrel with an inside diameter of .22 in and an outside diameter of .3 in. Four crimps are required to complete the connection, and the assembly meets ANSI and UL 486A-486B standards. RoHS compliance is confirmed.

Replaces Loose or Oxidised Splices

Use this connector to replace worn splices or upgrade from non-seamless barrels that risk corrosion. The jump is worth it when a project demands a UL-listed, high-temperature connection rated to 300 Degrees F and a compact overall length of 1.77 in.

Highlights

  • Blue colour code identifies 6 AWG wire size
  • Tin-plated copper barrel resists corrosion
  • Seamless long barrel handles 600 V applications
  • UL 486A-486B listed for code compliance
  • Four crimps create a secure connection

Specifications

BrandZORO SELECT
TypeElectrical Connectors

Questions about this item

What voltage does the 600 V rating on this crimp connector cap in practice?

The connector is rated for a maximum of 600 V, so it caps any circuit at that voltage when used with 6 AWG stranded copper wire.

What physical space does the 1.77 in overall length and 0.3 in barrel outside diameter need to fit?

The splice measures 1.77 in long with a 0.3 in barrel OD, so the enclosure or conduit must clear at least those dimensions.

How is the long-barrel splice installed and which step is often missed?

Strip the 6 AWG stranded copper conductor, insert it fully into the 0.22 in barrel ID, then make four crimps using die code 24; the step often missed is completing all four crimps for a secure connection.
