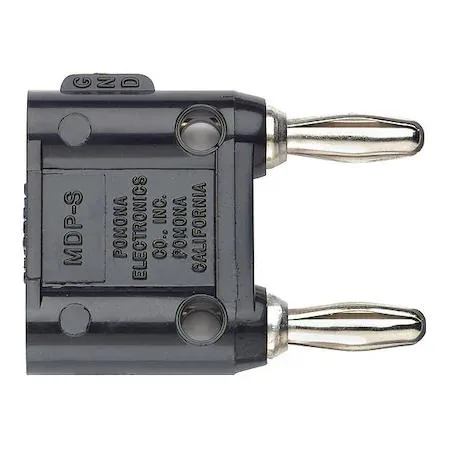

Black double banana plug with shorting bar, nickel-plated brass contacts, polypropylene body

Pomona Electronics

Pomona Electronics MDP-S-0 Double Banana Plug with Shorting Bar Black

SKU CH-HN2X-W4NDY

Double banana plug with shorting bar, rated 30V AC/60V DC hands-held and 5000V AC hands-free, 15 A max, polypropylene body, nickel-plated brass contacts, beryllium copper spring, operating to 122 °F

  • TypeAssortments & Kits
  • Hands-free safety up to 5000 V AC rating
  • Hand-held use rated 30 V AC and 60 V DC
  • 15 A maximum current through nickel-plated brass contacts
  • Polypropylene body withstands 122 °F operating temperature
  • Built-in shorting bar simplifies test connections

Double banana plug with shorting bar

The Pomona Electronics MDP-S-0 is a hand-held test accessory rated for 30V AC and 60V DC. It provides a secure connection for test leads in electrical measurement tasks. The nickel-plated brass contacts and polypropylene body deliver reliable conductivity and insulation.

Replaces loose or mismatched banana connections

This plug upgrades temporary wire wraps or single plugs that lack a shorting bar. The integrated bar bridges both terminals instantly for differential measurements. The jump is worth it when a stable, hands-free 5000V AC rating is required for safety compliance.

Brass contacts and beryllium copper spring under

The connector handles up to 15 amps continuously during sustained test sessions. Polypropylene insulation maintains integrity at operating temperatures up to 122 degrees F. The spring material ensures consistent contact pressure without relaxation over time.

Highlights

  • Hands-free safety up to 5000 V AC rating
  • Hand-held use rated 30 V AC and 60 V DC
  • 15 A maximum current through nickel-plated brass contacts
  • Polypropylene body withstands 122 °F operating temperature
  • Built-in shorting bar simplifies test connections

Specifications

BrandPOMONA
TypeAssortments & Kits

Questions about this item

What spacing do the dual banana plugs match for a secure fit?

The dual plugs are built on standard 3/4 inch centre spacing to fit common binding posts.

How do you attach test leads to the plug without soldering?

Insert stripped wire into each rear terminal and tighten the set screws for a firm mechanical joint.

When should the shorting bar be inspected or replaced?

Check the bar for pitting or loss of spring tension after heavy use; swap it if contact resistance rises.
