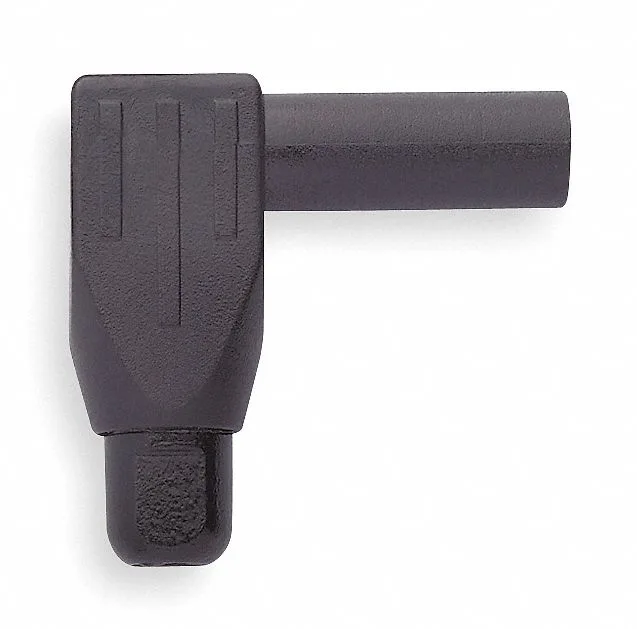

Black right-angle banana plug with nickel-plated brass contacts and beryllium copper body

Pomona Electronics

Pomona Electronics 6729-0 Right Angle Plug 1000V 20A Black

SKU CH-EE8K-32TG1

Right-angle banana plug rated 1000 V, 20 A with CAT III safety and simple assembly

  • TypeMechanical Connectors
  • Right-angle design keeps test leads tidy in tight spaces
  • CAT III 1000 V safety rating for high-voltage measurement protection
  • 20 A current capacity supports demanding test applications
  • Nickel-plated brass contacts ensure reliable low-resistance connections
  • Simple assembly with 18 AWG wire for quick field repairs

Right-Angle Banana Plug

The Pomona Electronics 6729-0 is a right-angle banana plug rated for 1000 V and 20 A. It is built for technicians and engineers who need a secure connection to safety-style banana jacks on digital multimeters and test instruments. The nickel-plated brass contacts and beryllium copper body meet IEC 61010-2-031 and CAT III 1000 V requirements. It accepts 18 AWG wire and operates up to 131 degrees Fahrenheit.

Panel and Bench Integration

The right-angle profile keeps the cable close to the instrument face, reducing strain on the jack and saving space on crowded benches or inside panel enclosures. It fits standard safety-style banana jacks directly, so no adapter is required for common DMMs. Simple assembly lets you terminate 18 AWG leads quickly, freeing up time for measurement tasks instead of connector fuss. The CAT III rating suits fixed-installation and distribution-level testing environments.

Voltage and Current Headroom

At 1000 V and 20 A the plug handles most bench and field measurement circuits with ample margin. The 18 AWG wire limit sets the practical current ceiling for the leads you attach, while the 131 degree Fahrenheit temperature ceiling defines the thermal boundary. It is not suited for applications that demand larger conductors, higher continuous currents, or operation beyond the CAT III 1000 V envelope.

Highlights

  • Right-angle design keeps test leads tidy in tight spaces
  • CAT III 1000 V safety rating for high-voltage measurement protection
  • 20 A current capacity supports demanding test applications
  • Nickel-plated brass contacts ensure reliable low-resistance connections
  • Simple assembly with 18 AWG wire for quick field repairs

Specifications

BrandPOMONA
TypeMechanical Connectors

Questions about this item

At what temperature does the 1000 V 20 A right-angle plug reach its operating limit during sustained use?

The maximum operating temperature is 131 °F, which is the first thermal limit encountered under continuous load.

How much heat or noise does the connector generate when running all day at full 20 A current?

The brass and nickel-plated beryllium-copper contacts produce no audible noise; heat rise stays within the 131 °F rating at 20 A.

What wire gauge must I already have to assemble this 18 AWG-rated right-angle banana plug?

You need 18 AWG wire for the crimp barrel to accept the conductor correctly.
