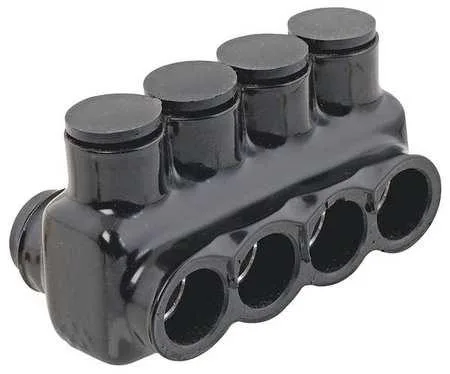

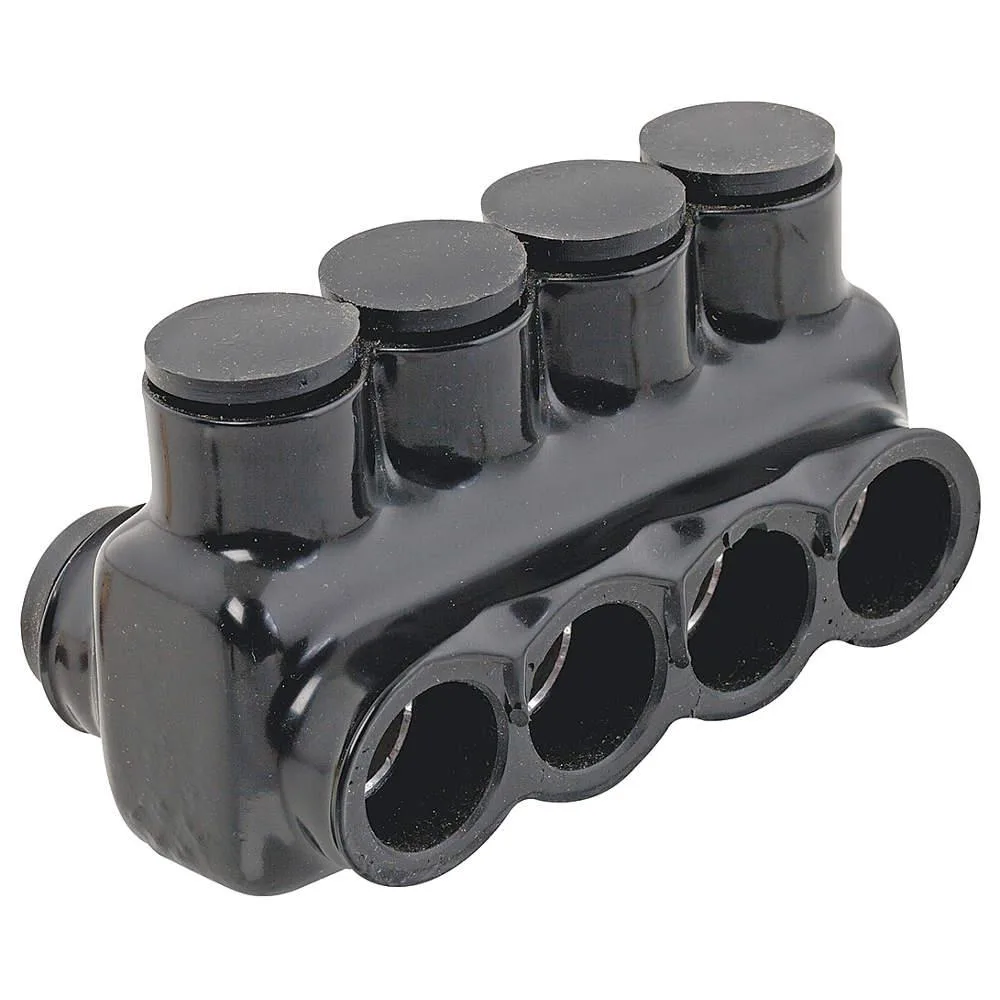

Black plastisol-coated aluminum multitap connector with four hexagonal ports

Polaris nsi

Polaris nsi IPLD600-4B Multitap Connector Alum Blk Hex 4Port

SKU CH-XDA0-A259C

Aluminium multitap connector with four ports for copper or aluminium conductors up to 600 kcmil, 600 V rated, hex-driven, plastisol-insulated, cULus listed

  • TypeElectrical Connectors
  • Four insulated ports simplify multi-wire splicing
  • Plastisol coating resists heat up to 167 degrees F
  • Dual-rated for aluminium and copper conductors
  • cULus listed to UL 486A standard
  • Rated for 600 volts maximum operating voltage

Polaris Multitap Connector Four Port

The Polaris IPLD600-4B is a four-port multitap connector built for electrical and industrial wiring. It accepts both aluminium and copper conductors across a wide range of stranded copper sizes from 6 AWG up to 600 kcmil. The body is aluminium with a black plastisol finish and insulation rated to 167 degrees F.

Hex Drive Installation and Panel Space

Each port uses a 5/16 inch hex drive so the connector can be tightened with a standard hex tool without specialised crimping equipment. The four-port layout consolidates multiple conductor runs into a single block, reducing the number of individual splices and freeing space inside enclosures or junction boxes.

600 Volt Rating and Conductor Headroom

Rated for 600 V maximum, the connector handles typical low-voltage power distribution circuits with comfortable headroom. The 600 kcmil upper limit accommodates large feeders, while the 6 AWG minimum still covers smaller branch conductors. It carries cULus listing to UL 486A and is RoHS compliant.

Highlights

  • Four insulated ports simplify multi-wire splicing
  • Plastisol coating resists heat up to 167 degrees F
  • Dual-rated for aluminium and copper conductors
  • cULus listed to UL 486A standard
  • Rated for 600 volts maximum operating voltage

Specifications

TypeElectrical Connectors
BrandPOLARIS

Questions about this item

What is the maximum voltage the IPLD600-4B can handle before it becomes a limit under sustained use?

The connector is rated for a maximum voltage of 600 V, which is the primary electrical limit during continuous operation.

How much heat can the plastisol insulation on this 4-port connector withstand when running all day?

The plastisol insulation has a maximum operating temperature of 167 Degrees F, defining its thermal limit during extended use.

What size hex driver do I need to secure the wires in the IPLD600-4B?

A 5/16 in hex driver is required to tighten the set screws on this connector.
