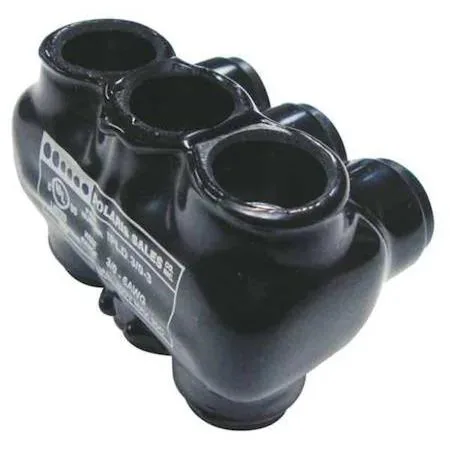

Black insulated multitap connector, three ports, 2.65 in length

Polaris nsi

Polaris nsi IPLD3/0-3B Insulated Multitap Connector 2.65 In

SKU CH-5MA5-ASJFA

Three-port insulated multitap connector accepts 6 AWG to 3/0 AWG stranded copper or aluminium conductors at up to 600 V and 194 °F

  • TypeMulti-Tap
  • Three-port connector joins multiple conductors
  • Plastisol insulation protects to 600 V
  • Hex-head set screws accept 6 AWG to 3/0 AWG
  • cULus and UL 486A listed for code compliance
  • RoHS compliant and UL 94 rated material

Polaris nsi Three-Port Multitap Connector

The Polaris nsi IPLD3/0-3B is an insulated multitap connector designed for joining aluminum or copper conductors in electrical installations. It accepts stranded copper wire sizes from 6 AWG up to 3/0 AWG across three ports. The body is aluminium with a black Plastisol finish providing insulation. It is rated for 600 V maximum voltage and carries cULus and UL 486A listings.

Sustained Load Behaviour

The connector is rated for a maximum operating temperature of 194 degrees F, indicating its thermal limit under continuous current flow. The Plastisol insulation material maintains its integrity up to this temperature. The aluminium body provides a stable contact interface that resists loosening during thermal cycling. The hex-head set screws secure conductors with a 1/4 in hex driver for consistent torque application.

Pre-Order Checks

Verify that your conductors fall within the 6 AWG to 3/0 AWG stranded copper range or the equivalent aluminium range before ordering. Confirm the 600 V rating matches your circuit voltage requirements. Ensure you have a 1/4 in hex driver available for installation. The overall length is 2.65 in, so check available space in the enclosure or junction box. The product is RoHS compliant and carries UL 486A certification.

Highlights

  • Three-port connector joins multiple conductors
  • Plastisol insulation protects to 600 V
  • Hex-head set screws accept 6 AWG to 3/0 AWG
  • cULus and UL 486A listed for code compliance
  • RoHS compliant and UL 94 rated material

Specifications

BrandPolaris
TypeMulti-Tap

Questions about this item

How much heat can the Polaris IPLD3/0-3B multitap connector withstand during continuous use?

The connector is rated for a maximum operating temperature of 194 Degrees F, so it remains stable under normal load conditions.

What wire sizes and tools are required to install this three-port connector?

It accepts stranded copper or aluminum conductors from 6 AWG up to 3/0 AWG and uses a 1/4 in hex drive for tightening.

Will this 600 V insulated multitap work with older aluminum wiring already in the panel?

Yes, the connector is listed for both aluminum and copper conductors and carries cULus certification to UL 486A.
