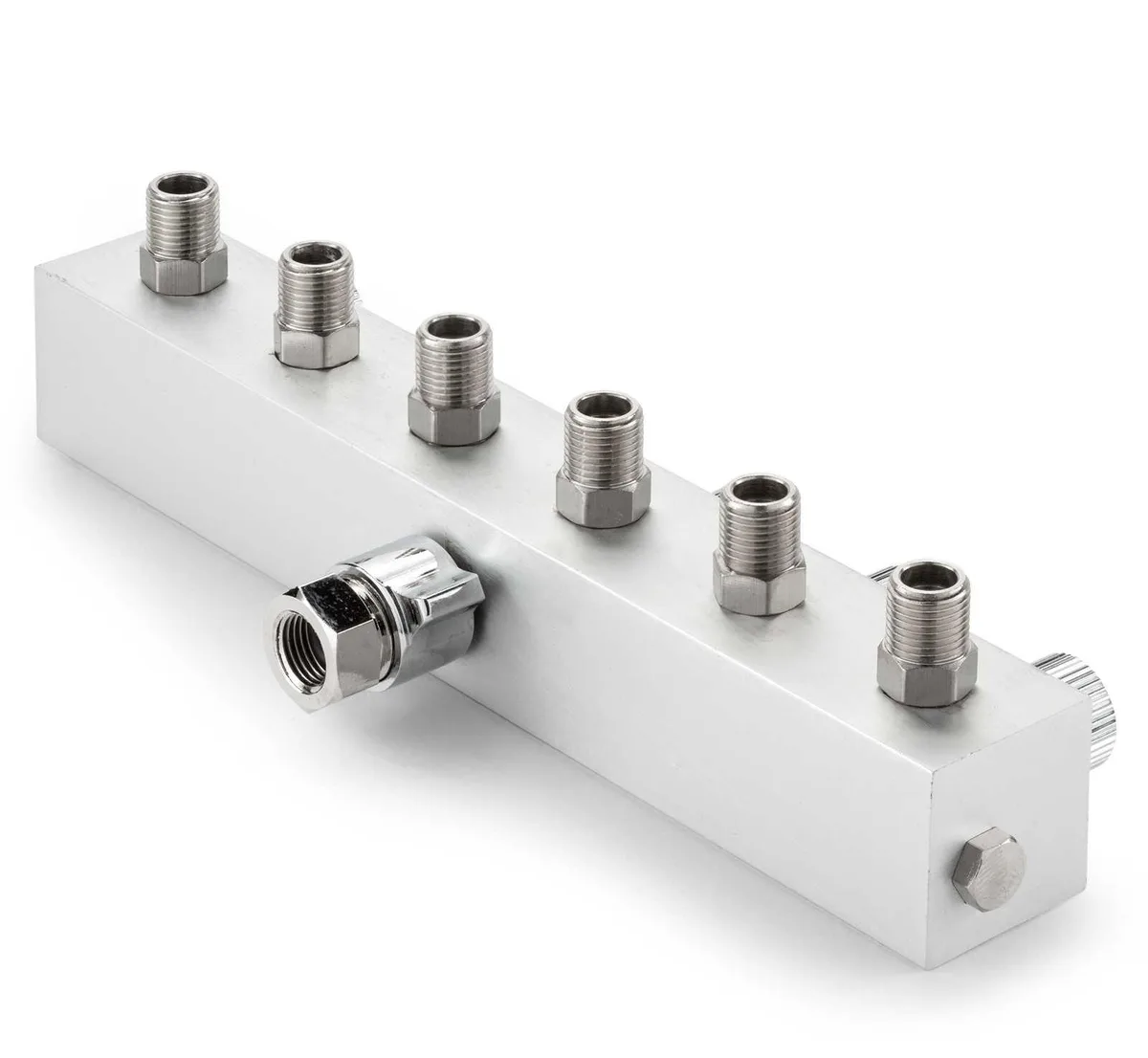

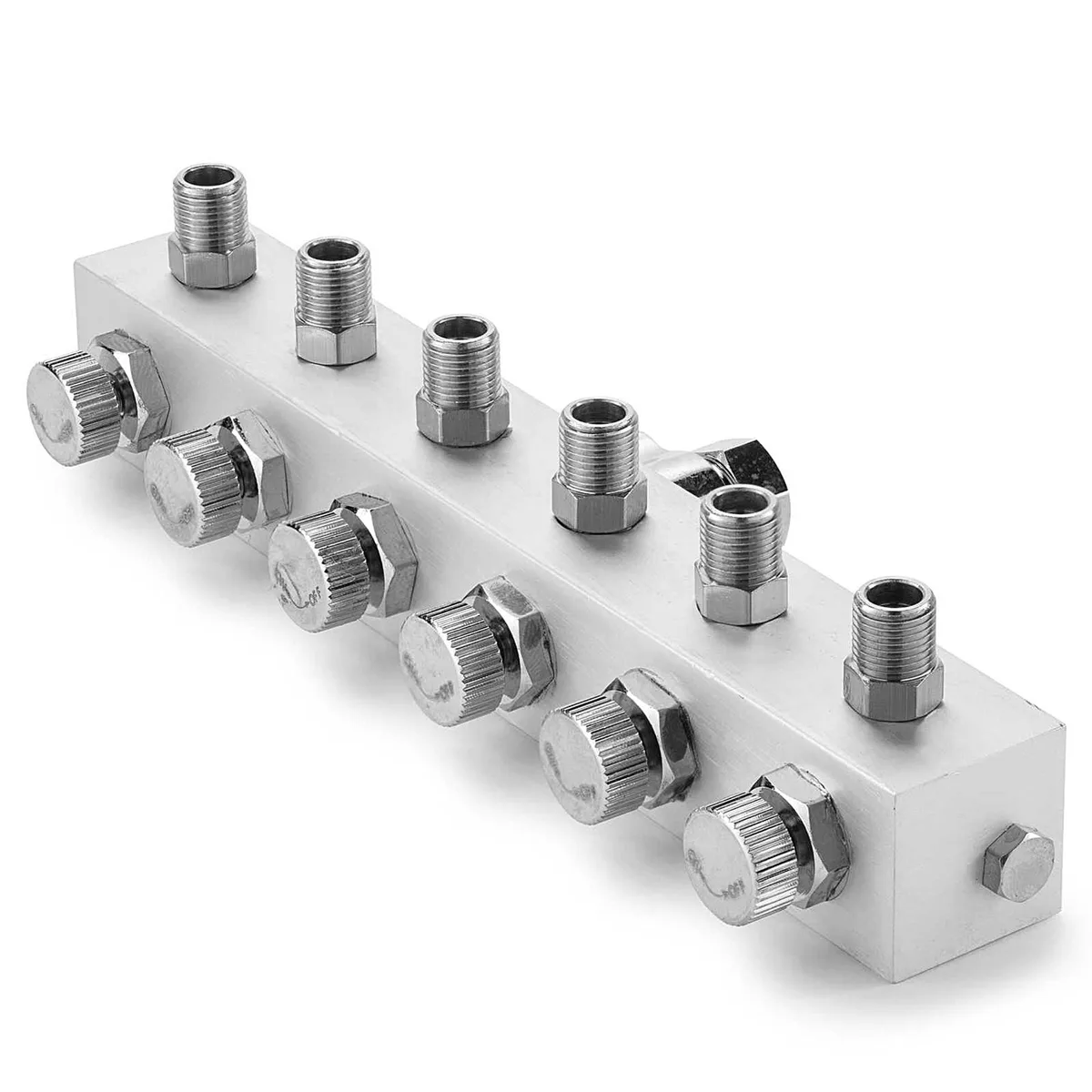

Silver six-way airbrush manifold with control valves and 1/4 BSP inlet 1/8 BSP outlets

POINTZERO

POINTZERO Airbrush Manifold 6-Way 1/4 BSP Inlet 1/8 BSP Outlets Silver

SKU CH-0S0Q-G6NRC

Six-way airbrush manifold splits one 1/4 BSP inlet into six 1/8 BSP outlets with independent airflow control valves and an included 1/8 BSP adaptor

  • Craft TypeCraft Accessories
  • Size/DimensionsLarge
  • ColorSilver
  • Connect up to six airbrushes from a single air supply
  • Independent airflow valves let you adjust or shut off each port
  • Includes 1/4 BSP male to 1/8 BSP female adaptor for flexible hookup
  • Standard 1/4 BSP female inlet and six 1/8 BSP male outlets ensure wide compatibility
  • Heavy-duty construction distributes air reliably without boosting supply pressure

Six-way airbrush manifold

The PointZero manifold splits a single compressed-air supply into six independent 1/8 in. BSP male outlets fed from a 1/4 in. BSP female inlet. Each outlet has its own airflow control valve so pressure can be adjusted or the port closed completely. An included 1/4 in. BSP male to 1/8 in. BSP female adaptor lets the unit accept a smaller air source.

Replacing individual splitters and valve blocks

Instead of daisy-chaining Y-splitters or separate shut-off valves, this single block consolidates distribution and per-port control. The upgrade is worthwhile when running two or more airbrushes simultaneously from one compressor and you need independent pressure tuning per gun without re-plumbing.

Build integration for multi-gun setups

Mount the silver aluminium body in a fixed bench position or on a mobile cart; the standard BSP threads connect directly to common compressor hoses and airbrush fittings. The manifold does not boost supply pressure, so the compressor must deliver enough volume for the number of active airbrushes. Ports not in use are simply closed at their valves, keeping the remaining lines at working pressure.

Highlights

  • Connect up to six airbrushes from a single air supply
  • Independent airflow valves let you adjust or shut off each port
  • Includes 1/4 BSP male to 1/8 BSP female adaptor for flexible hookup
  • Standard 1/4 BSP female inlet and six 1/8 BSP male outlets ensure wide compatibility
  • Heavy-duty construction distributes air reliably without boosting supply pressure

Specifications

BrandPointZero
Craft TypeCraft Accessories
Size/DimensionsLarge
ColorSilver

Questions about this item

What thread sizes do the inlet and six outlets use?

The manifold has a 1/4 in. BSP female inlet and six 1/8 in. BSP male outlets, plus a 1/4 in. BSP male to 1/8 in. BSP female adaptor for smaller air sources.

How do I attach the manifold to my compressor and airbrushes without cross-threading the BSP threads?

Hand-tighten the 1/4 in. BSP female inlet onto your compressor's male fitting, then thread each airbrush hose onto the 1/8 in. BSP male outlets; use PTFE tape on male threads only and stop if resistance feels gritty.

Will the control valves need periodic lubrication or seal replacement?

The built-in airflow valves are adjusted by hand; keep threads clean and apply a drop of light machine oil to the valve stems occasionally to maintain smooth operation.
