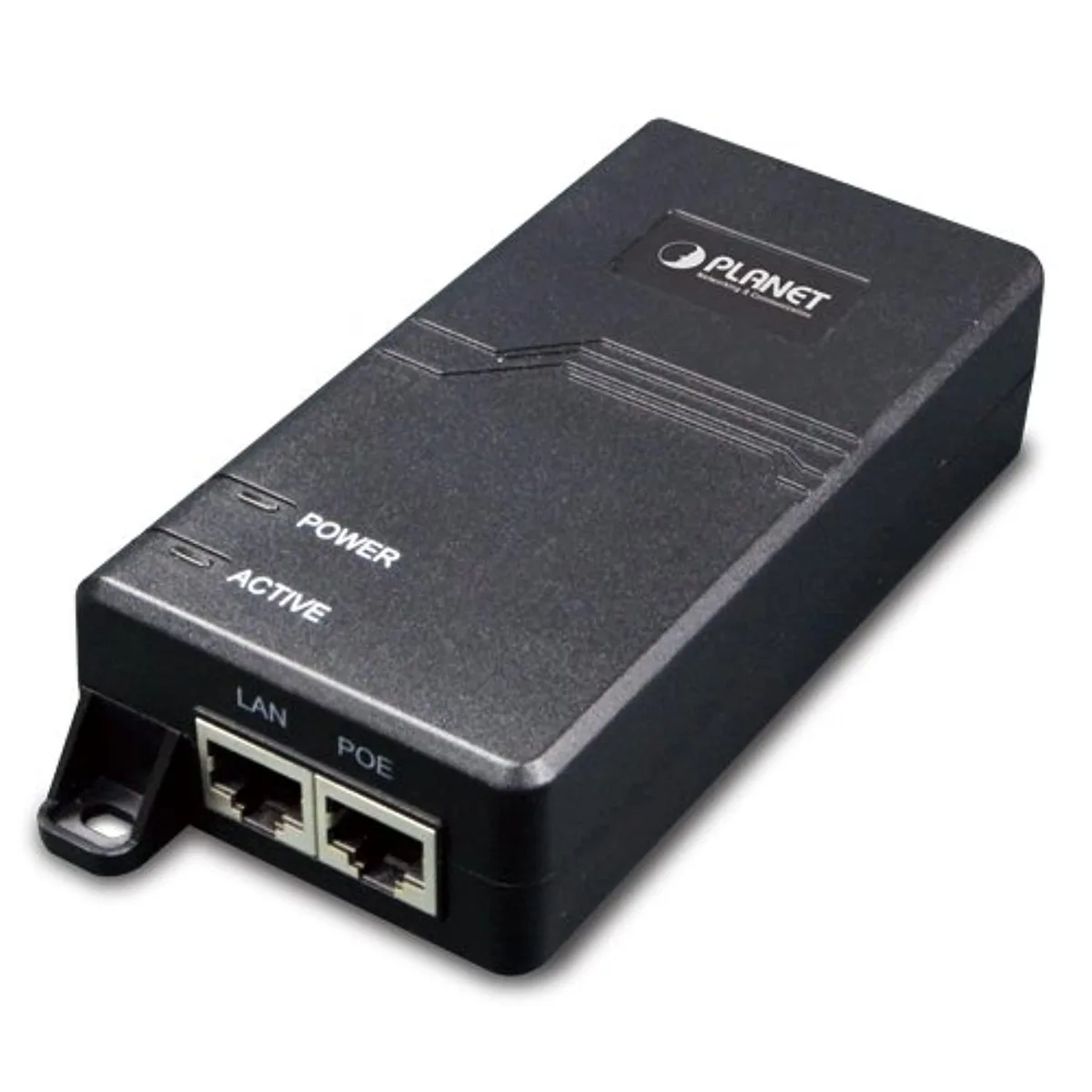

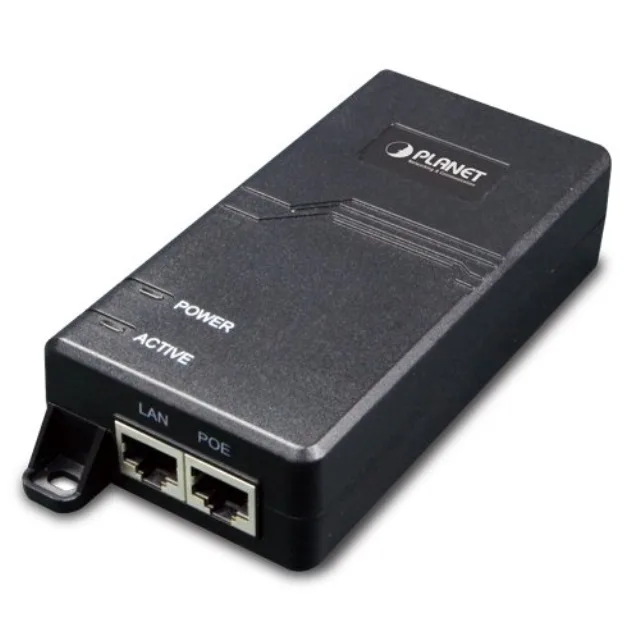

Black rectangular PoE injector with two RJ-45 ports and IEC power socket

PLANET

PLANET POE-173 60W Ultra PoE Injector

SKU CH-D35J-Q7CXZ MPN POE-173

Delivers up to 60 watts of power and Gigabit data over a single Ethernet cable to high-power devices such as PTZ cameras and digital signage

  • TypePoE Injector
  • ColorBlack
  • SpecificationsInterface: LAN: 1 x RJ-45 STP, "Data" Input Port POE: 1 x RJ
  • Features2 x RJ-45 interfaces 1 x AC 100-240V input power socket Ultr
  • Delivers up to 60 watts over four-pair UTP
  • Powers devices up to 100 metres from the injector
  • Accepts 100 to 240 volt AC input worldwide
  • Single-port design with separate data and power RJ-45 ports
  • Plug-and-play operation requires no software configuration

Single-port 60 W Ultra PoE injector

The PLANET POE-173 is a single-port injector that delivers up to 60 watts of power over four-pair unshielded twisted-pair cabling. It accepts AC input from 100 to 240 V through an IEC-320 C6 socket and passes Gigabit Ethernet data alongside DC 50 V power. The unit is designed for high-power devices such as PTZ speed domes, all-in-one touch PCs and remote digital signage displays. Plug-and-play operation requires no software configuration.

Sustained 60 W delivery over 100 m

The injector maintains its full 60 W output continuously across cable runs up to 100 metres using Cat. 5, 5e or 6 four-pair UTP. Power is supplied on all four pairs, reducing voltage drop compared with two-pair alternatives. Gigabit data throughput is unaffected by the simultaneous power feed. The design targets equipment that draws near the maximum budget for extended periods without throttling.

Passive cooling in a compact enclosure

The POE-173 uses a fanless metal housing that dissipates heat silently during normal operation. No moving parts mean zero acoustic output and no mechanical wear. Power consumption at the AC inlet tracks the connected load plus a small conversion overhead. The small footprint allows discreet placement on a desk, shelf or wall mount where ambient airflow is sufficient.

Highlights

  • Delivers up to 60 watts over four-pair UTP
  • Powers devices up to 100 metres from the injector
  • Accepts 100 to 240 volt AC input worldwide
  • Single-port design with separate data and power RJ-45 ports
  • Plug-and-play operation requires no software configuration

Specifications

BrandPLANET
ModelPOE-173
TypePoE Injector
ColorBlack
SpecificationsInterface: LAN:
1 x RJ-45 STP, "Data" Input Port
POE: 1 x RJ-45 STP, "Data + Power" Output Port
AC Connector: 1 x AC Input power socket, IEC-320 C6
Network Cable:
Ultra PoE (60W): 4-pair UTP Cat. 5, 5e, 6 up to 100m (328 ft.)
802.3af / at PoE(15W / 30W): 2-pair UTP Cat. 3, 4, 5, up to 100m (328 ft.)

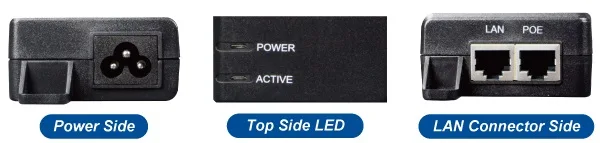

LED Indicator:
System: Power x 1 (Green)
PoE Port: Active, PoE ready / In Use x 1 (Green)
Data Rate: 10/100/1000 Mbps
Unit Output Voltage: DC 50-57V, 1.2A
Power Requirements: 100-240V AC @ 50/60 Hz, 1.5A max.
Power Consumption: 60 watts max.
PoE Standard:
Ultra PoE over 4-pairs UTP,
High
Features2 x RJ-45 interfaces
1 x AC 100-240V input power socket
Ultra Power over Ethernet PSE
Up to 60 watts of power on 4-pairs UTP
Shipping weight0.45 kg
Package size152 × 152 × 152 mm

Questions about this item

Does the injector get loud or hot when it runs 24/7 at 60 watts?

The unit has no fan and uses a compact passive design, so it stays silent and only warm to the touch even at full 60W load.

My switch does not supply PoE — what do I need to connect first?

Plug the injector into a 100-240V AC outlet via the IEC-320 C6 socket, then run a Cat 5e or Cat 6 patch cord from your switch to the "Data" RJ-45 port.

Will a 10/100 Mbps IP camera still work through this Gigabit injector?

Yes — the RJ-45 ports auto-negotiate down to 10 or 100 Mbps while still delivering up to 60W over all four pairs.
