Silver metal 1U rack switch front with eight SFP cages and two RJ45 ports

PLANET

PLANET MGSD-10080F 8-port SFP + 2-port RJ-45 managed network switch

SKU CH-J9QS-V2RCH MPN MGSD-10080F

A managed Metro Ethernet switch with eight SFP fiber ports and two gigabit RJ-45 ports delivering 20Gbps non-blocking throughput

  • FormatWall Mountable
  • StandardsIEEE 802.3 10Base-T IEEE 802.3u 100Base-TX/100Base-FX IEEE 8
  • Network Management TypeManaged
  • Primary Ports8 1000Base-SX/LX/BX SFP interfaces, from port 1 to port 8 Co
  • Primary Port Speed20Gbps / non-blocking
  • MAC Address Table8K entries, automatic source address learning and ageing
  • Managed switch with 8 SFP fiber ports and 2 RJ-45 copper ports
  • Non-blocking 20Gbps switch fabric for wire-speed throughput
  • Industrial temperature range from -10 to 60 degrees C with DC power
  • Wall-mountable 1U metal chassis measuring 330 x 155 x 43.5 mm
  • Redundant AC and DC power inputs for continuous operation

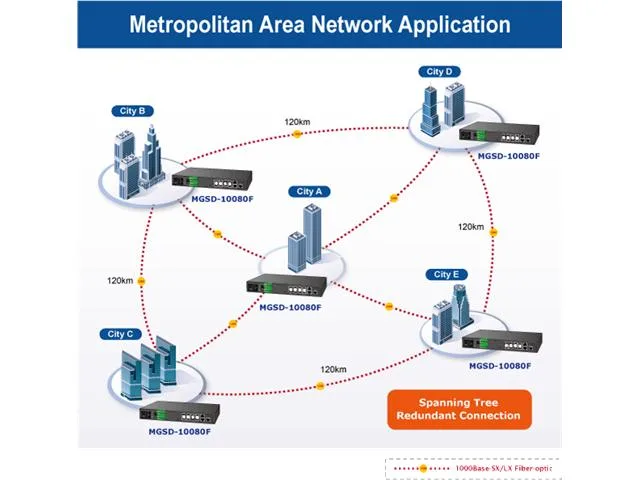

Metro Ethernet Switch

The PLANET MGSD-10080F is a managed Layer 2 switch built for metro and campus networks. It suits system integrators and ISPs who need fibre uplinks and copper handoff in a compact, wall-mountable chassis. The unit operates without PoE, so it is not for buyers who must power access points or cameras directly from the switch.

8 SFP + 2 RJ-45 Ports

The decisive spec is the port mix: eight 100/1000Base-X SFP slots plus two 10/100/1000Base-T RJ-45 ports with Auto-MDI/MDI-X. A single RJ-45-to-RS-232 console port at 115200, 8, N, 1 provides out-of-band management. Non-blocking fabric delivers 20Gbps aggregate throughput with 9Kbyte jumbo frame support.

Thermals and Power

Fanless convection cooling keeps the switch silent across its rated -10 to 60 degrees C range when fed from the -36V to -72V DC input. AC operation at 100-240V draws 0.15A. The 1U high, 1.6KG metal enclosure dissipates heat passively, making it suitable for noise-sensitive cabinets or outdoor enclosures where active airflow is impractical.

Highlights

  • Managed switch with 8 SFP fiber ports and 2 RJ-45 copper ports
  • Non-blocking 20Gbps switch fabric for wire-speed throughput
  • Industrial temperature range from -10 to 60 degrees C with DC power
  • Wall-mountable 1U metal chassis measuring 330 x 155 x 43.5 mm
  • Redundant AC and DC power inputs for continuous operation

Specifications

BrandPLANET
ModelMGSD-10080F
FormatWall Mountable
StandardsIEEE 802.3 10Base-T IEEE 802.3u 100Base-TX/100Base-FX IEEE 802.3z Gigabit SX/LX IEEE 802.3ab Gigabit 1000T IEEE 802.3x Flow Control and Back pressure IEEE 802.3ad Port trunk with LACP IEEE 802.1D Spanning tree protocol IEEE 802.1w Rapid Spanning tree protocol IEEE 802.1s Multiple Spanning tree protocol IEEE 802.1p Class of service IEEE 802.1Q VLAN Tagging IEEE 802.1x Port Authentication Network Control IEEE 802.1ab LLDP RFC 768 UDP RFC 793 TFTP RFC 791 IP RFC 792 ICMP RFC 2068 HTTP RFC 1112 IGMP version 1 RFC 2236 IGMP version 2
Network Management TypeManaged
Primary Ports8 1000Base-SX/LX/BX SFP interfaces, from port 1 to port 8 Compatible with 100Base-FX SFP, 2 10/ 100/1000Base-T RJ-45 Auto-MDI/MDI-X ports, 1 x RJ-45-to-RS-232 serial port (115200, 8, N, 1)
Primary Port Speed20Gbps / non-blocking
MAC Address Table8K entries, automatic source address learning and ageing
VLAN SupportYes
Jumbo Frames9Kbytes
Buffer Memory4Mbits
SecuritySSH, SSL, SNMP v3
PoENo
StackableYes
SNMPYes
QoSYes
PowerAC 100~240V, 50/60Hz 0.15A -36V DC @ 0.3A, Range: -36V ~ -72V DC
Dimensions330 x 155 x 43.5 mm, 1U high
Weight1.6KG
TemperatureTemperature: -10 ~ 60 degrees C for DC power input
HumidityRelative Humidity: 5 ~ 95 % (non-condensing)
Shipping weight4.54 kg
Package size356 × 254 × 102 mm

Questions about this item

What does the 20Gbps non-blocking fabric mean for daily traffic?

It means the switch can forward up to 20Gbps across all ten ports simultaneously without any port waiting for another, so eight SFP links and two RJ-45 links each run at their negotiated speed without internal congestion.

Which IEEE standards cap the SFP and copper ports in practice?

The eight SFP slots follow 802.3z for gigabit fibre and 802.3u for 100Base-FX, while the two RJ-45 ports follow 802.3ab for 1000Base-T and 802.3u for 100Base-TX, with 802.3x flow control on all ports.

What clearance and mounting does the 1U metal chassis need?

The unit measures 330 by 155 by 43.5 mm and is wall-mountable; allow at least one rack unit of vertical space and front access for the SFP modules, RJ-45 jacks and the serial console port.
