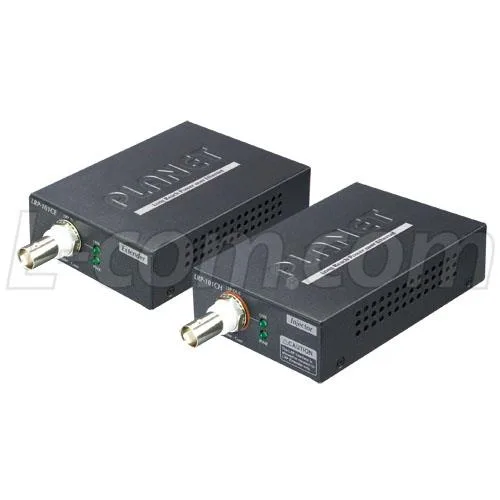

Two black metal network boxes with coaxial and Ethernet ports, LED lights, side by side

PLANET

PLANET LRP-101C-KIT 1-Port Long Reach PoE Over Coax Extender Kit

SKU CH-421X-BRVTN MPN LRP-101C-KIT

Extends PoE power and data up to 1000 m over coaxial cable with plug-and-play installation

  • TypePoE Extender
  • ColorBlack
  • SpecificationsEthernet Interface: LRP-101CH Copper: 10/100BASE-TX RJ45, au
  • FeaturesSupports Power over Ethernet PSE (PoE Injector) Power and Et
  • Transmits power and data up to 1000m over coaxial cable
  • Extends PoE connections beyond the standard 100m Ethernet limit
  • Operates reliably from -20 to 70 °C in harsh environments
  • Plug and Play installation requires no PC or configuration
  • Extensive LED indicators simplify network diagnostics and monitoring

Kit purpose

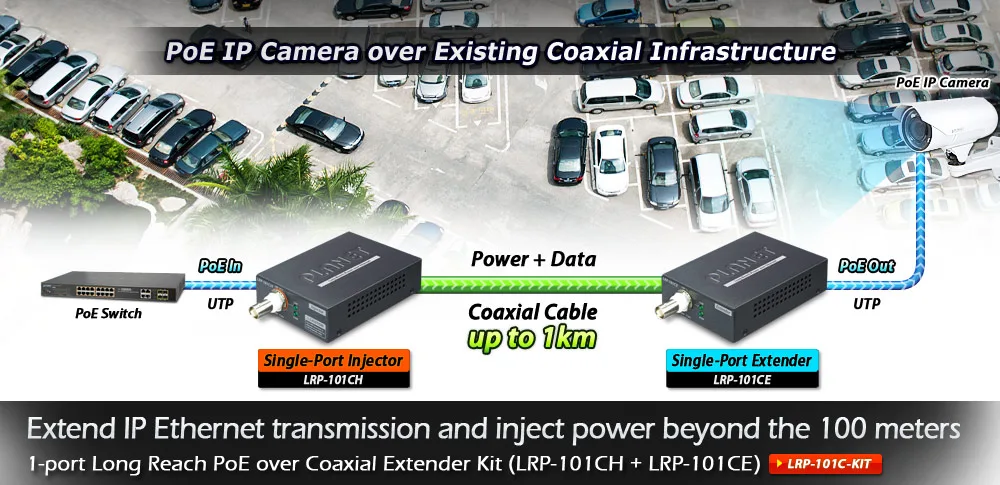

The PLANET LRP-101C-KIT is a one-port Long Reach PoE over coax extender kit that sends power and Ethernet data up to 1000 meters over coaxial cable. It consists of an injector unit and an extender unit, letting installers place PoE devices far beyond the standard 100 metre Ethernet limit.

Fit and limits

The kit suits installers who need to reach remote IP cameras, wireless access points or access-control systems over existing coaxial runs in environments from -20 to 70 °C. It does not suit buyers who want multi-port aggregation, fibre uplink capability or PoE budgets above the 802.3at/af class.

Sustained operation

The rugged metal housing and wide temperature rating allow continuous operation in harsh climates without active cooling. Extensive LED indicators give ongoing link and power status so technicians can verify the connection during long-term deployment.

Highlights

  • Transmits power and data up to 1000m over coaxial cable
  • Extends PoE connections beyond the standard 100m Ethernet limit
  • Operates reliably from -20 to 70 °C in harsh environments
  • Plug and Play installation requires no PC or configuration
  • Extensive LED indicators simplify network diagnostics and monitoring

Specifications

BrandPLANET
ModelLRP-101C-KIT
TypePoE Extender
ColorBlack
SpecificationsEthernet Interface: LRP-101CH
Copper: 10/100BASE-TX RJ45, auto-negotiation / auto-MDI/MDI-X
Power over Ethernet Standard: IEEE 802.3at/af PoE PD (Powered Device)
PoE Input: Supports both Mid-span and End-span PSE Input Range: 48~56V DC
Data Rate: 100/100 Mbps
Cabling: Cat5e or above
Maximum Distance: 100 meters
Maximum Frame Size: 1522 bytes
LRP-101CE
Copper: 10/100BASE-TX RJ45, Auto-negotiation / auto-MDI/MDI-X
Power over Ethernet Standard: IEEE 802.3at/af PoE PSE (Power Source Equipment)
PoE Output: 56V DC, 600mA max.
PoE Budget: Up to 25 watts
PoE Mode: End-span, RJ45 Pin 1/2 (+),
FeaturesSupports Power over Ethernet PSE (PoE Injector)
Power and Ethernet data transmission of 1,000m over coaxial cabling
Supports extensive LED indicators for network diagnostics
Plug and Play; no PC required
Shipping weight0.91 kg
Package size254 × 203 × 76 mm

Questions about this item

What PoE standard must the existing switch or injector support to power the LRP-101CH unit?

The LRP-101CH requires an IEEE 802.3at or 802.3af compliant PoE source delivering power over the RJ45 copper port.

Can the 1000 m coaxial link replace the 100 m Ethernet run to a camera while keeping the same PoE class?

Yes, the kit extends data and PoE up to 1000 m over coax, then the LRP-101CE delivers 802.3af/at PoE over a final 100 m Ethernet segment.

Which LED indicators confirm the 1000 m coax link and PoE output are active after installation?

Extensive LED indicators on both units show link status, PoE power delivery and coaxial signal quality for network diagnostics.
