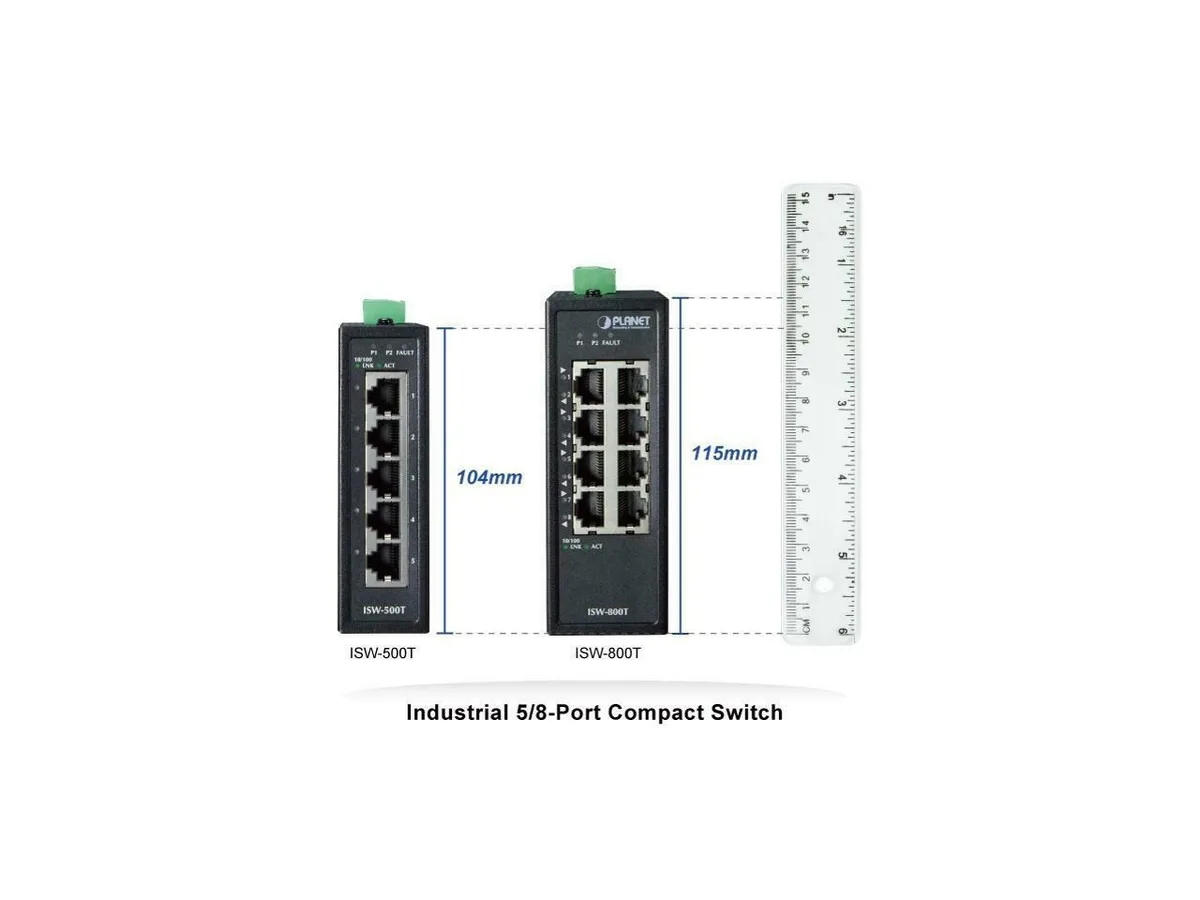

Compact metal industrial switch, eight RJ45 ports, DIN rail mount, IP30 rated

PLANET

PLANET ISW-800T 8-Port 10/100TX Industrial Fast Ethernet Switch

SKU CH-ZTS4-GS5XF MPN ISW-800T

An 8-port 10/100TX industrial Fast Ethernet switch with IP30 metal case, DIN rail and wall-mount design, redundant 12-48V DC or 24V AC power, and -40 to 75 degrees C operating temperature

  • 8 ports auto-negotiate for simple plug-and-play networking
  • IP30 metal housing protects against dust in industrial settings
  • Operates reliably from -40 to 75 degrees C
  • Redundant 12 to 48V DC and 24V AC power inputs
  • 6000 VDC Ethernet ESD protection guards against surges

Industrial 8-Port Fast Ethernet Switch

The PLANET ISW-800T provides eight 10/100BASE-TX RJ45 ports with auto MDI/MDI-X negotiation for industrial networking. Its IP30-rated metal enclosure supports DIN rail or wall mounting and accepts 12 to 48V DC plus 24V AC redundant power inputs. The unit operates reliably across a -40 to 75 degrees C temperature range.

Sustained Load Behaviour

IEEE 802.3x pause frame flow control prevents packet loss during continuous full-duplex traffic while back pressure manages half-duplex congestion. Energy Efficient Ethernet compliance reduces power draw during idle periods. The switch maintains a 1K MAC address table with automatic learning and aging for stable forwarding under prolonged operation.

Pre-Installation Checks

Verify that your cabling uses RJ45 connectors compatible with 10/100BASE-TX speeds and that the site can supply 12 to 48V DC or 24V AC power. Confirm the mounting surface suits DIN rail or wall installation and that ambient temperatures stay within the -40 to 75 degrees C rating. Ensure connected devices support auto-negotiation for proper link establishment.

Highlights

  • 8 ports auto-negotiate for simple plug-and-play networking
  • IP30 metal housing protects against dust in industrial settings
  • Operates reliably from -40 to 75 degrees C
  • Redundant 12 to 48V DC and 24V AC power inputs
  • 6000 VDC Ethernet ESD protection guards against surges

Specifications

No published specifications for this item yet.

Questions about this item

How much power does the ISW-800T draw when running continuously in a warm cabinet?

The switch complies with IEEE 802.3az Energy Efficient Ethernet and accepts 12 to 48V DC or 24V AC redundant input with polarity reverse protection, minimising heat in enclosed spaces.

What power source must I already have on site for the ISW-800T to operate?

You need a 12 to 48V DC supply or a 24V AC source; the unit includes redundant terminals and reverse-polarity protection for industrial DIN-rail installations.

Will the ISW-800T pass traffic to my older 10BASE-T devices without configuration?

Yes, each RJ45 port auto-negotiates 10 or 100Mbps half or full duplex and supports auto MDI/MDI-X, so legacy 10BASE-T gear connects plug-and-play.
