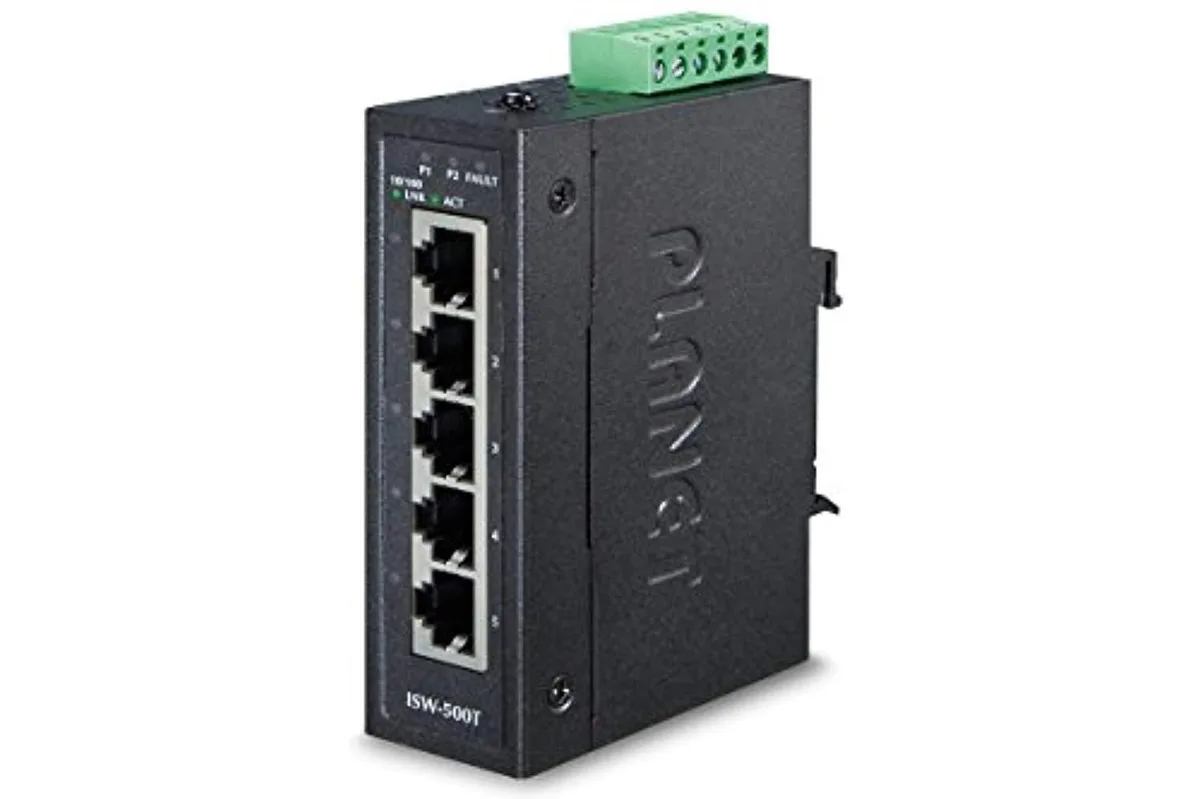

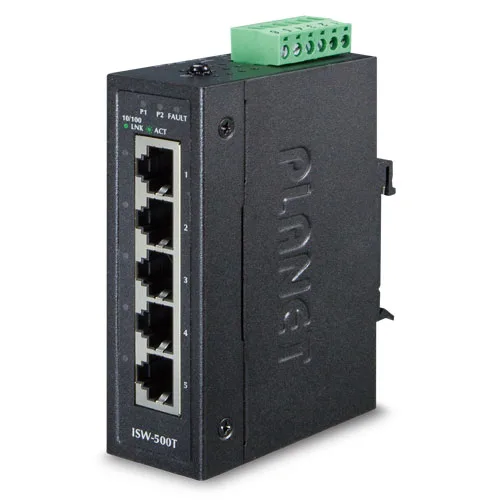

Compact metal industrial switch with five RJ45 ports and DIN rail clip

PLANET

PLANET ISW-500T 5-Port 10/100TX Industrial Fast Ethernet Switch

SKU CH-QZ9G-PSBH3 MPN ISW-500T

Compact 5-port 10/100TX industrial switch with IP30 metal case, DIN rail or wall mounting, 12–48 V DC redundant power and –40 to 75 °C operating range

  • FormatDIN Rail Mount
  • Operates reliably from -40 to 75 degrees C
  • IP30 metal case resists dust in harsh environments

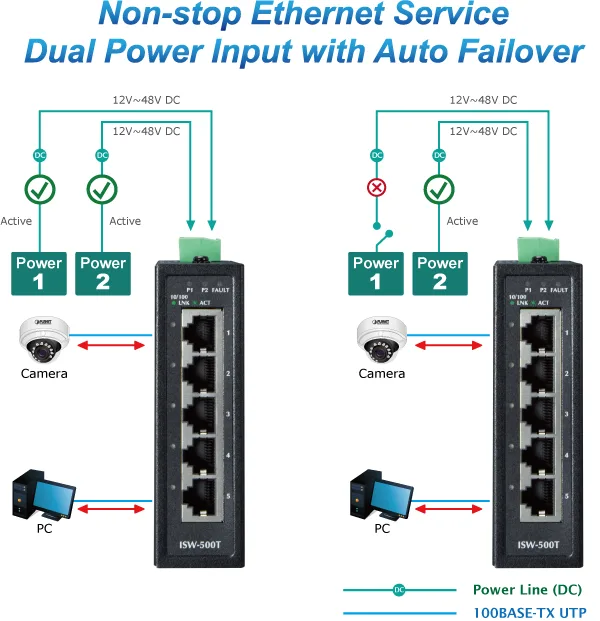

  • Redundant 12 to 48V DC power with polarity protection
  • DIN rail and wall-mount design fits tight cabinets
  • 5 auto-negotiation 10/100BASE-TX ports with auto MDI/MDI-X

Industrial 5-Port Fast Ethernet Switch

The PLANET ISW-500T is a compact 5-port 10/100BASE-TX switch built for industrial environments. It features auto MDI/MDI-X RJ45 ports, IEEE 802.1p CoS, and support for 1K MAC addresses. The IP30-rated metal case supports DIN rail or wall mounting and operates from -40 to 75 degrees C. Redundant power input accepts 12 to 48V DC or 24V AC with polarity reverse protection.

Suitable Installations and Limitations

This switch suits installers needing a rugged, unmanaged Fast Ethernet link for factory automation, transportation, or outdoor cabinets where temperature extremes and vibration occur. It is not for buyers who need Gigabit throughput, PoE power sourcing, managed Layer 2 features such as VLANs or SNMP, or fiber uplink ports.

Pre-Installation Checks

Verify that your cabling uses RJ45 connectors rated for 10/100Mbps and that the site provides 12 to 48V DC or 24V AC power with redundant feeds if required. Confirm DIN rail or wall-mount space matches the IP30 metal case dimensions. Ensure the operating temperature range of -40 to 75 degrees C covers the deployment environment.

Highlights

  • Operates reliably from -40 to 75 degrees C
  • IP30 metal case resists dust in harsh environments
  • Redundant 12 to 48V DC power with polarity protection
  • DIN rail and wall-mount design fits tight cabinets
  • 5 auto-negotiation 10/100BASE-TX ports with auto MDI/MDI-X

Specifications

FormatDIN Rail Mount
Shipping weight0.45 kg
Package size254 × 203 × 152 mm

Questions about this item

What power supply do I need to run the ISW-500T?

The switch accepts 12 to 48V DC redundant power with polarity reverse protection or 24V AC input.

Will my 10BASE-T devices work on the ISW-500T's 100BASE-TX ports?

Yes, each RJ45 port auto-negotiates 10/100Mbps half or full duplex and complies with IEEE 802.3 10BASE-T and IEEE 802.3u 100BASE-TX.

How can I verify the ISW-500T is forwarding traffic correctly after installation?

The unit learns and ages MAC addresses automatically up to 1K entries; connected devices should obtain link LEDs and pass data without packet loss thanks to IEEE 802.3x flow control and back-pressure support.
