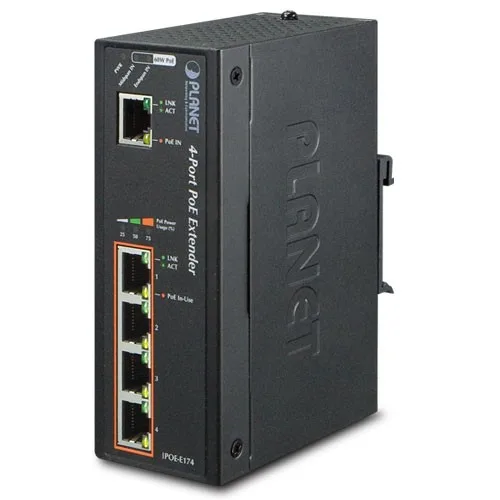

Black 5-port Gigabit PoE extender with RJ-45 ports

PLANET

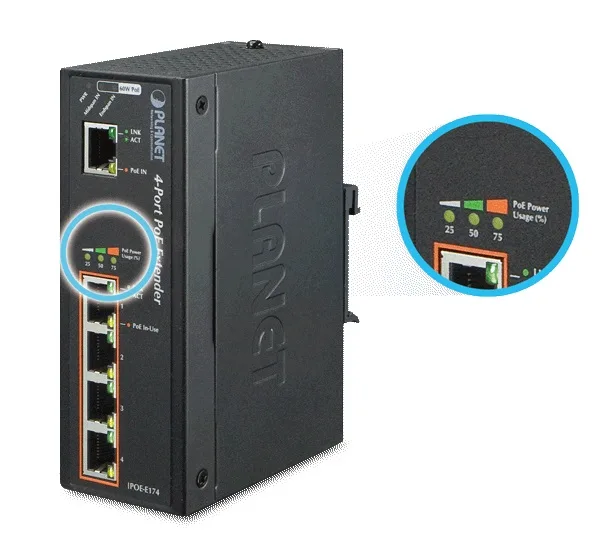

PLANET IPOE-E174 5-Port Gigabit PoE Extender

SKU CH-QVHR-JE0G7 MPN IPOE-E174

Extends PoE range by 100 meters while powering up to four devices from a single 60-watt input

  • ColorBlack
  • Extends PoE reach by 100 meters (328ft)
  • Powers four 802.3af/at devices from one 60W ultra PoE input
  • Delivers up to 30.8 watts per output port
  • Gigabit RJ-45 ports with auto-negotiation and auto MDI/MDI-X
  • Supports 9K jumbo frames and 8K MAC address table

5-Port Gigabit PoE Extender

The PLANET IPOE-E174 converts a single ultra PoE input into four independent 802.3af/at outputs while passing gigabit data. It extends both power and network connectivity up to 100 metres beyond the standard cable limit. The rugged black enclosure is designed for indoor or sheltered outdoor deployments.

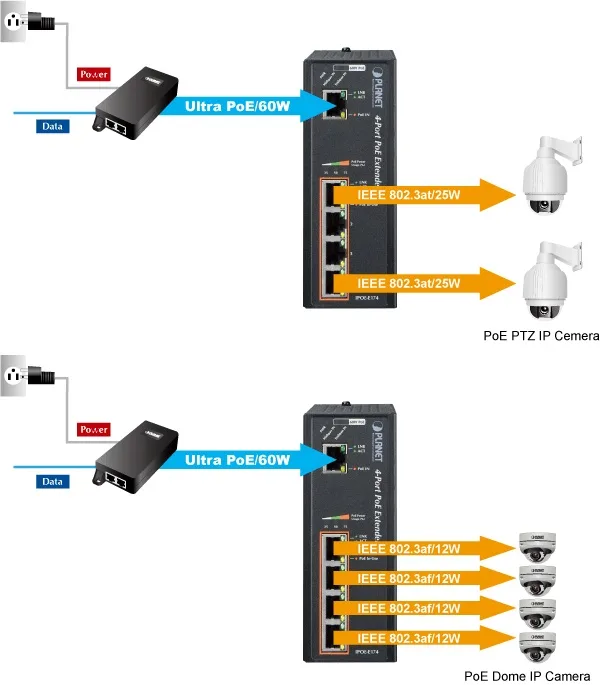

Installers needing multiple PoE devices from one

This unit suits projects where a single high-power PoE feed must serve up to four cameras, access points or VoIP phones. It is not intended for networks that require fibre uplinks, managed switching features such as VLANs, or power budgets exceeding 30.8 watts per output port.

60-watt ultra PoE input budget

The extender accepts up to 60 watts from a compliant ultra PoE source and distributes a maximum of 30.8 watts to each of the four output ports. Total usable power depends on the source budget and cable losses, so verify the PD requirements before deployment.

Highlights

  • Extends PoE reach by 100 meters (328ft)
  • Powers four 802.3af/at devices from one 60W ultra PoE input
  • Delivers up to 30.8 watts per output port
  • Gigabit RJ-45 ports with auto-negotiation and auto MDI/MDI-X
  • Supports 9K jumbo frames and 8K MAC address table

Specifications

BrandPLANET
ModelIPOE-E174
ColorBlack
Shipping weight0.91 kg
Package size254 × 203 × 152 mm

Questions about this item

How can I confirm the PLANET IPOE-E174 is passing both data and power correctly after installation?

Connect a powered device to any of the four output ports; the unit auto-detects the PD and delivers up to 30.8 watts per port while forwarding Gigabit Ethernet, so a live link light and normal device operation show it is working.

What does the IPOE-E174 package include and what must I supply separately?

The extender itself provides one ultra-PoE input port and four 802.3af/at output ports; you must supply the incoming ultra-PoE source (up to 60 watts) and the Ethernet cables to reach your remote devices up to 100 meters each.

The model name shows IPOE-E174 — are there other capacity versions I should consider?

The IPOE-E174 is a single fixed configuration: one ultra-PoE input and four Gigabit PoE+ outputs, each capable of 30.8 watts, with no alternate port-count or power-budget variants in this product line.
