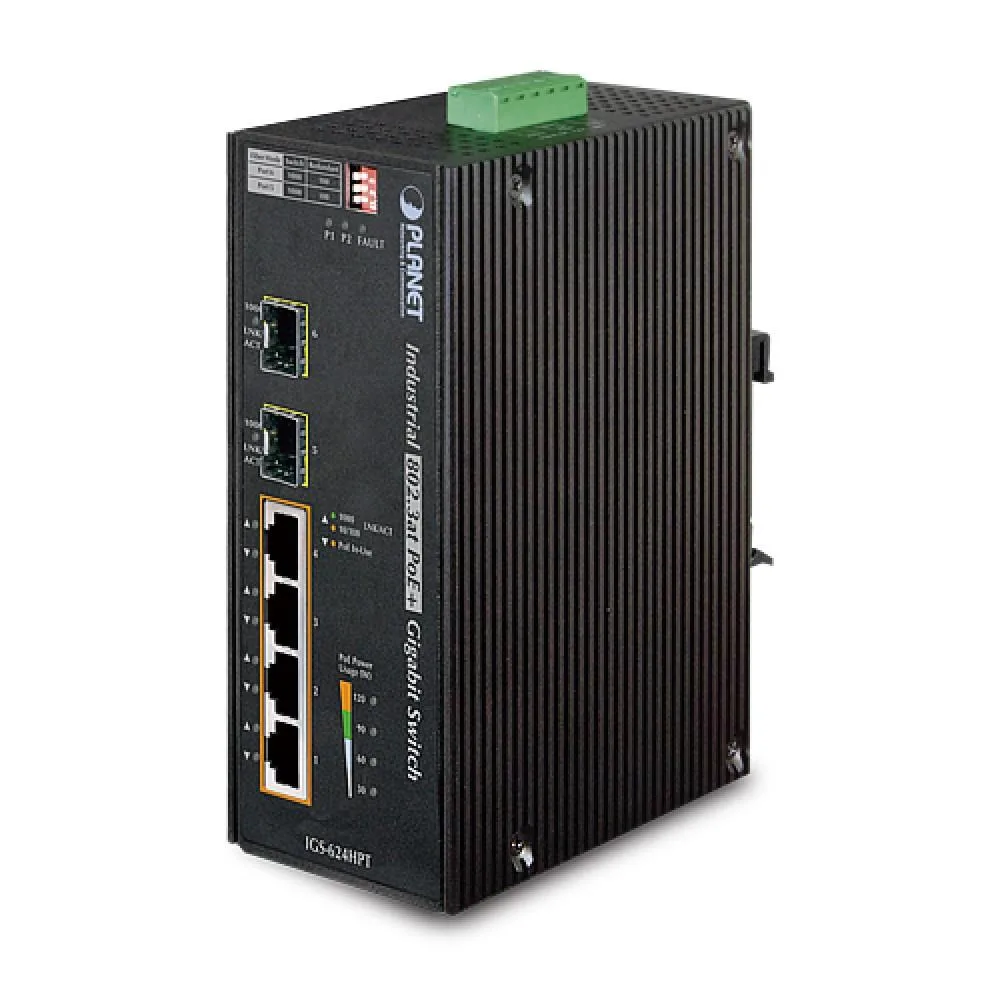

Compact metal DIN-rail switch with four RJ45 ports and two SFP slots

PLANET

PLANET IGS-624HPT 4-port PoE+ network switch

SKU CH-6F2E-Z7YC1 MPN IGS-624HPT

Industrial Gigabit Layer 2 switch with four PoE+ RJ-45 ports delivering up to 30 watts each and two SFP fiber slots in a rugged metal DIN-rail case

  • FormatDIN Rail Mount
  • StandardsIEEE 802.3 Ethernet / 10Base-T - IEEE 802.3u Fast Ethernet /
  • Primary Ports4-port 10/100/1000Base-T RJ-45 with IEEE 802.3af / 802.3at P
  • PoEIEEE 802.3af / IEEE 802.3at Power over Ethernet / PSE
  • Layer2
  • CaseMetal Case
  • 4-port Gigabit PoE+ delivers up to 30 W per device
  • 120 W total PoE budget powers multiple cameras or access points
  • Industrial metal case rated IP30 withstands -40 °C to 75 °C
  • Two SFP slots add 100/1000Base-X fiber uplinks
  • DIN-rail mount fits standard cabinets for quick installation

Industrial Gigabit PoE+ Switch

The PLANET IGS-624HPT is a Layer 2 managed switch built for harsh environments. It delivers four Gigabit RJ-45 ports with PoE+ injection and two SFP slots for fiber uplinks in a rugged metal DIN-rail enclosure.

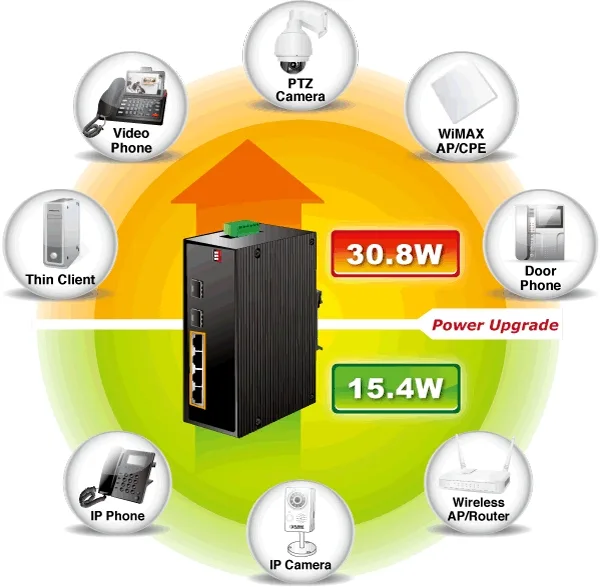

Installers needing hardened PoE for IP cameras

Suited for surveillance and industrial automation where wide-temperature operation and redundant power are required. Not for buyers who need Layer 3 routing, more than four copper ports, or higher total PoE budgets.

Four ports supply up to 30 watts each

Comfortably runs multiple 802.3at devices over Cat 5e or 6 cable. The two SFP slots accept 100 or 1000 megabit transceivers for long-distance fiber links. Capacity ends at four powered ports and 120 watts total.

Highlights

  • 4-port Gigabit PoE+ delivers up to 30 W per device
  • 120 W total PoE budget powers multiple cameras or access points
  • Industrial metal case rated IP30 withstands -40 °C to 75 °C
  • Two SFP slots add 100/1000Base-X fiber uplinks
  • DIN-rail mount fits standard cabinets for quick installation

Specifications

BrandPLANET
ModelIGS-624HPT
FormatDIN Rail Mount
StandardsIEEE 802.3 Ethernet / 10Base-T - IEEE 802.3u Fast Ethernet / 100Base-TX - IEEE 802.3ab Gigabit Ethernet / 1000Base-T - IEEE 802.3z Gigabit Ethernet / 1000Base-SX/LX - IEEE 802.3x Full-Duplex Flow Control - IEEE 802.3at High Power over Ethernet- IEEE 802.3af Power over Ethernet
Primary Ports4-port 10/100/1000Base-T RJ-45 with IEEE 802.3af / 802.3at PoE Injector 2-port SFP slot interface, SFP supports 1000Base-X and 100Base-FX transceiver via DIP switch configured
PoEIEEE 802.3af / IEEE 802.3at Power over Ethernet / PSE
Layer2
CaseMetal Case
Shipping weight1.36 kg
Package size381 × 381 × 381 mm

Questions about this item

Do I need a separate power supply for the 4-port PoE+ switch?

The IGS-624HPT has a redundant power system built into its IP30 metal case; no external PoE injector is required.

Will my 100 Mbps IP cameras still connect to the Gigabit RJ-45 ports?

Yes, the copper ports auto-negotiate 10/100/1000 Mbps so legacy 100Base-TX devices work without configuration.

How can I verify each port is delivering up to 30 W after installation?

The switch complies with IEEE 802.3af and 802.3at; connected powered devices will negotiate and draw up to 30 W per port when the total 120 W budget allows.
