Industrial DIN-rail Gigabit PoE+ switch in rugged metal case

PLANET

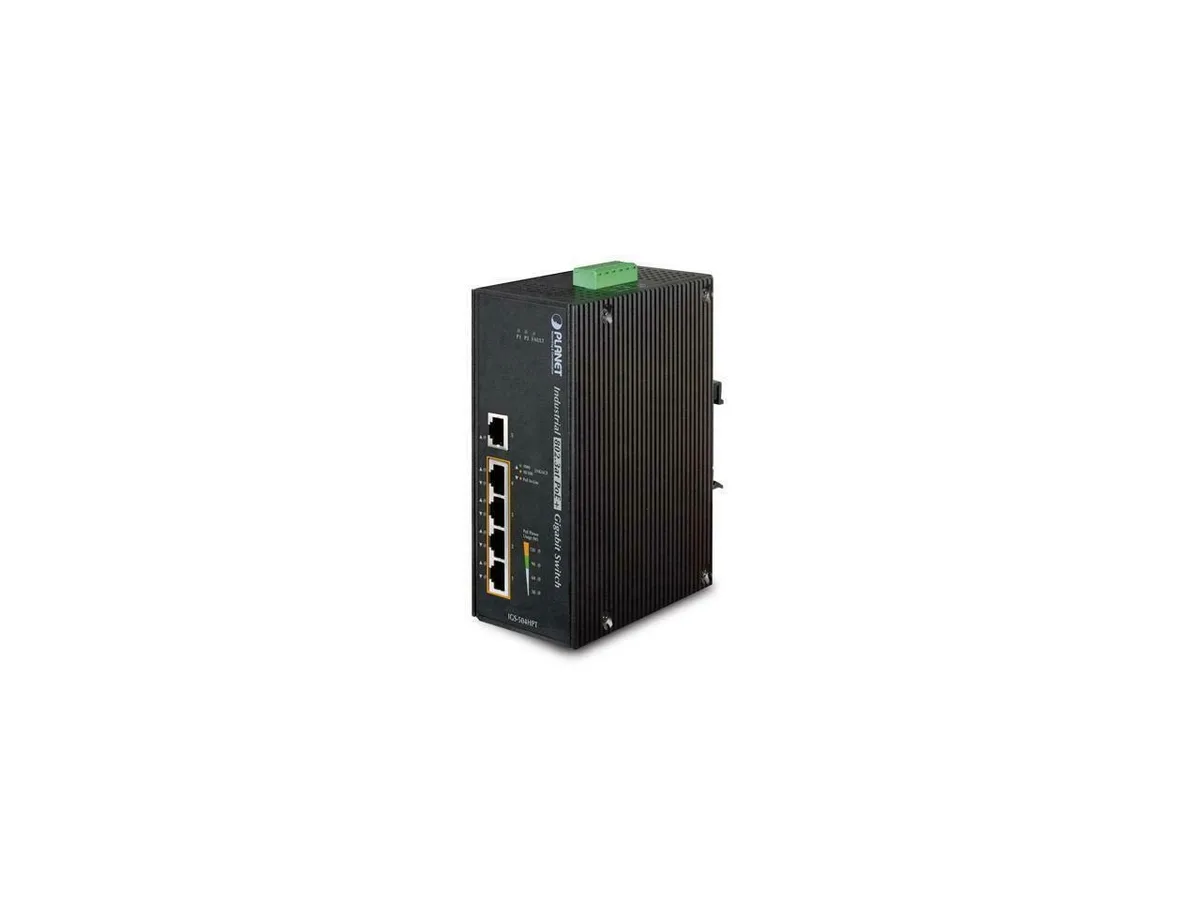

PLANET IGS-504HPT 5-port Gigabit PoE+ network switch

SKU CH-VP12-NGHTA MPN IGS-504HPT

Industrial 5-port Gigabit switch with four PoE+ ports delivering up to 30 watts each and a 120-watt total budget in a rugged IP30 case rated for -40 to 75 degrees C

  • FormatDIN Rail Mount
  • StandardsIEEE 802.3 Ethernet / 10Base-T IEEE 802.3u Fast Ethernet / 1
  • PoEIEEE 802.3af / IEEE 802.3at Power over Ethernet / PSE
  • Delivers up to 30 watts per port for power-hungry devices
  • 120-watt total PoE budget supports multiple high-power cameras
  • Industrial IP30 rugged case withstands harsh environments
  • Operates reliably from -40 to 75 degrees C
  • Redundant power system ensures continuous network uptime

Industrial Gigabit PoE+ Switch

The PLANET IGS-504HPT is a hardened 5-port Gigabit switch built for industrial networks. It delivers non-blocking wire-speed performance and supplies up to 30 watts of PoE+ power on each of four copper ports. The IP30-rated metal case and redundant power inputs suit deployments in harsh climates.

Operating range -40 to 75 degrees C

The unit is rated for continuous operation from -40 to 75 degrees C without active cooling. A fanless design eliminates acoustic noise and moving-part failures. Total PoE budget reaches 120 watts across all four powered ports while the switch maintains full Gigabit throughput.

DIN rail mounting and redundant power

A DIN rail bracket enables quick cabinet installation in control panels. Dual DC power inputs provide fallback supply if one source fails. The rugged IP30 enclosure protects internal circuitry from dust and mechanical shock in demanding environments.

Highlights

  • Delivers up to 30 watts per port for power-hungry devices
  • 120-watt total PoE budget supports multiple high-power cameras
  • Industrial IP30 rugged case withstands harsh environments
  • Operates reliably from -40 to 75 degrees C
  • Redundant power system ensures continuous network uptime

Specifications

BrandPLANET
ModelIGS-504HPT
FormatDIN Rail Mount
StandardsIEEE 802.3 Ethernet / 10Base-T IEEE 802.3u Fast Ethernet / 100Base-TX IEEE 802.3ab Gigabit Ethernet / 1000Base-T IEEE 802.3x Full-Duplex Flow Control IEEE 802.3at High Power over Ethernet IEEE 802.3af Power over Ethernet
PoEIEEE 802.3af / IEEE 802.3at Power over Ethernet / PSE
Shipping weight1.36 kg
Package size305 × 203 × 102 mm

Questions about this item

How do I mount the IGS-504HPT on a DIN rail and what step is often missed?

Snap the switch onto the DIN rail until the built-in latch clicks; the step often missed is confirming the latch is fully seated so vibration cannot dislodge the unit

What maintenance or replacement will the IGS-504HPT need later?

The fanless, solid-state design has no moving parts to service; only the external power supplies may need replacement if they fail after extended use

What limit appears first on the IGS-504HPT under sustained PoE load?

The 120-watt total PoE budget caps combined output across the four ports, so connecting multiple 30-watt devices will hit this limit before per-port thresholds
