Industrial DIN-rail switch with eight RJ-45 ports and two SFP slots

PLANET

PLANET IGS-10020PT 8-Port Gigabit PoE + 2 SFP Managed network switch

SKU CH-EG69-BHPV0 MPN IGS-10020PT

Industrial managed Gigabit switch with eight PoE ports, two SFP uplinks and Layer 2 features for harsh environments

  • FormatDIN Rail Mount
  • StandardsIEEE 802.3/3u/3ab, IEEE 802.3af
  • Network Management TypeManaged
  • Primary Ports8 10/100/1000Base-T RJ-45 Auto-MDI/MDI-X ports / 2 1000Base-
  • Primary Port Speed10/100/1000Mbps
  • MAC Address Table8K entries, automatic source address learning and ageing
  • Industrial temperature range from -40 to 75 °C
  • Eight PoE ports power up to eight IEEE 802.3 af devices
  • Two SFP slots accept 100 or 1000 Mbps modules
  • Managed Layer 2 features include VLAN, QoS and LACP
  • Digital I/O integrates sensors and sends SNMP trap alarms

Industrial Gigabit PoE Switch

The PLANET IGS-10020PT is a managed Layer 2 switch built for harsh environments with an operating range of -40 to 75 degrees C. It provides eight 10/100/1000Base-T RJ-45 ports with IEEE 802.3af PoE and two 100/1000Base-X SFP slots for fibre uplinks. A DIN-rail mount format suits cabinet or enclosure installation. Management includes SNMP, QoS, LACP, VLANs and port mirroring.

Suited for Industrial Networks; Not for PoE+ Demands

This unit fits integrators deploying IP cameras, wireless APs or sensors where DIN-rail mounting and wide-temperature operation are required. The 8K MAC table, 9600-byte jumbo frames and 4Mbit buffer handle deterministic traffic. Buyers needing IEEE 802.3at PoE+ power budgets, 10G uplinks or Layer 3 routing should look at other models.

802.3af PoE on All Eight Copper Ports

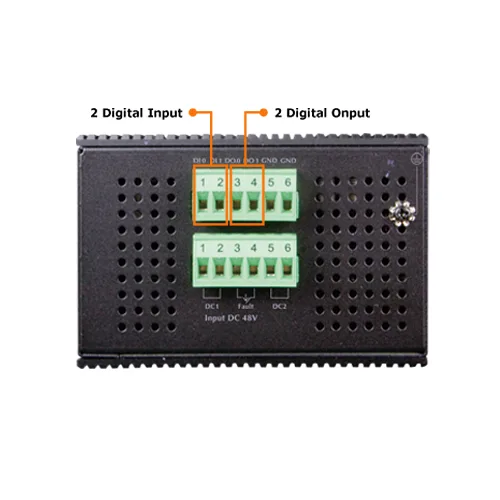

Every RJ-45 interface supplies power to compatible powered devices with automatic detection and supports PoE management features. Two digital inputs and two digital outputs allow sensor integration and alarm reporting via SNMP traps. The 255 VLAN groups and five LACP trunk groups provide segmentation and redundancy for industrial topologies.

Highlights

  • Industrial temperature range from -40 to 75 °C
  • Eight PoE ports power up to eight IEEE 802.3 af devices
  • Two SFP slots accept 100 or 1000 Mbps modules
  • Managed Layer 2 features include VLAN, QoS and LACP
  • Digital I/O integrates sensors and sends SNMP trap alarms

Specifications

BrandPLANET TECHNOLOGY
SeriesIGS-10020PT
ModelIGS-10020PT
FormatDIN Rail Mount
StandardsIEEE 802.3/3u/3ab, IEEE 802.3af
Network Management TypeManaged
Primary Ports8 10/100/1000Base-T RJ-45 Auto-MDI/MDI-X ports / 2 1000Base-SX/LX/BX SFP interfaces (Port-9 and Port-10)
Primary Port Speed10/100/1000Mbps
MAC Address Table8K entries, automatic source address learning and ageing
VLAN SupportYes
Jumbo Frames9600 bytes
Buffer Memory4Mbits
PoEYes
StackableYes
SNMPYes
QoSYes
LACPYes
Layer2
Port MirroringYes
Module SupportNo
CaseMetal Case
Class8-Port Gigabit PoE
VersionNew
Shipping weight0.91 kg
Package size152 × 152 × 51 mm

Questions about this item

Which managed industrial switch model provides eight PoE copper ports plus two SFP uplinks?

The IGS-10020PT delivers eight 10/100/1000Base-T RJ-45 ports with IEEE 802.3af PoE and two 100/1000Base-X SFP slots in a DIN-rail enclosure.

What does the 802.3af PoE support mean when the switch is powering cameras or access points?

Each of the eight copper ports can supply power to compliant devices, auto-detects powered equipment, and includes per-port management plus digital I/O for alarm integration.

What uplink speed do the two SFP slots support and how does that affect total trunk bandwidth?

The SFP slots accept 100 or 1000Base-X modules with auto-detection, and LACP trunking can combine up to eight ports per group for a maximum of 16Gbps duplex bandwidth.
