Small black box with HDMI ports and audio jacks

PISKEKAT

PISKEKAT HDMI Audio Extractor 4K 60Hz game controller

SKU CH-7QED-E32X4

Extracts audio from an HDMI signal to optical and 3.5 mm outputs while passing 4K 60 Hz video with ARC support

  • TypeOther
  • HDMI audio extractor sends sound to optical and 3.5 mm outputs separately
  • Three switchable audio modes include Pass, 2CH and 5.1CH surround settings
  • 4K 60 Hz video pass-through with deep colour up to 36 bit

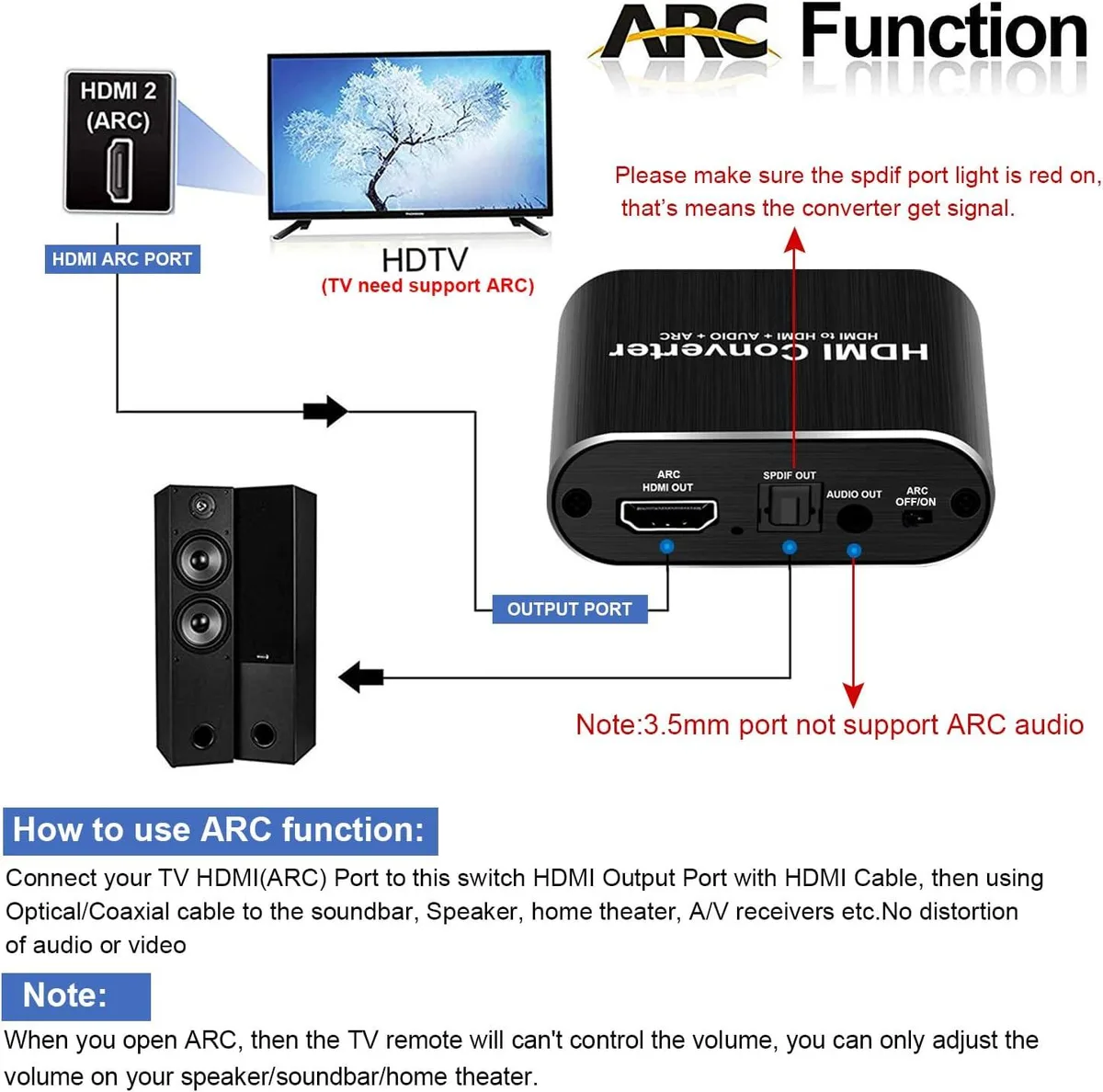

  • HDCP 2.2 and ARC support for protected content and return-channel audio
  • Works with consoles, streamers, PCs and Blu-ray players via HDMI

HDMI Audio Extractor 4K 60Hz

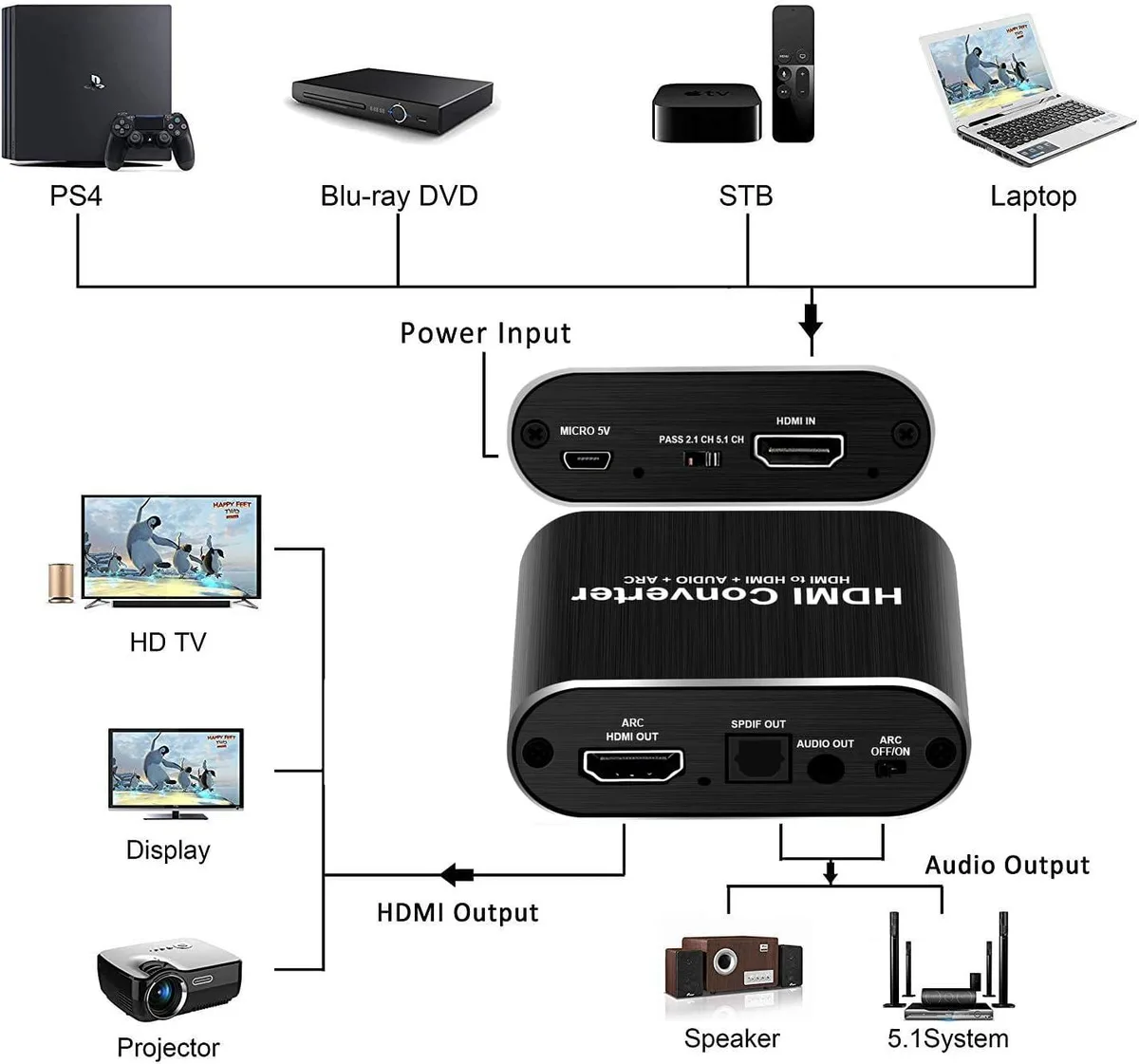

The PISKEKAT HDMI Audio Extractor takes a single HDMI input and provides one HDMI output plus optical Toslink SPDIF and 3.5 mm analogue stereo outputs. It handles video resolutions up to 4K at 60 Hz with support for 24, 30 and 36 bit deep colour and 3D content. The device includes an audio mode switch for Pass, 2CH and 5.1CH settings.

Installers needing separate audio paths

This unit suits installers who must send audio to a soundbar, amplifier or headphones independently from the display. The optical output carries 2CH PCM, 5.1CH Dolby Digital, Dolby TrueHD and DTS-HD, while the 3.5 mm jack is limited to 2CH PCM stereo. It does not support Dolby Digital Plus or CEC control, so systems relying on those features will not work.

HDMI 1.4 with HDCP 2.2

The extractor operates on HDMI 1.4 bandwidth with HDCP 2.2 compliance, accepting 4:2:0 chroma at 4K 60 Hz. This determines whether the source and sink can negotiate the required copy-protection handshake and colour sampling for protected 4K streams.

Highlights

  • HDMI audio extractor sends sound to optical and 3.5 mm outputs separately
  • Three switchable audio modes include Pass, 2CH and 5.1CH surround settings
  • 4K 60 Hz video pass-through with deep colour up to 36 bit
  • HDCP 2.2 and ARC support for protected content and return-channel audio
  • Works with consoles, streamers, PCs and Blu-ray players via HDMI

Specifications

TypeOther

Questions about this item

Will this extractor pass 4K 60 Hz video to my older 1080p monitor while sending audio to a soundbar?

Yes, the unit supports 4K at 60 Hz and downscales to 1080p, 720p, 480i and other listed resolutions while the HDMI output remains active for the display.

How do I confirm the correct audio mode is active after connecting my receiver?

Set the switch to 2CH for stereo over the 3.5 mm jack or 5.1CH for Dolby Digital, TrueHD or DTS-HD over the optical Toslink port; the LED by the switch indicates the selected mode.

Does the box include the optical and 3.5 mm cables needed for my amplifier and headphones?

The package contains the extractor and a USB power cable; optical Toslink and 3.5 mm stereo cables are not included and must be purchased separately.
